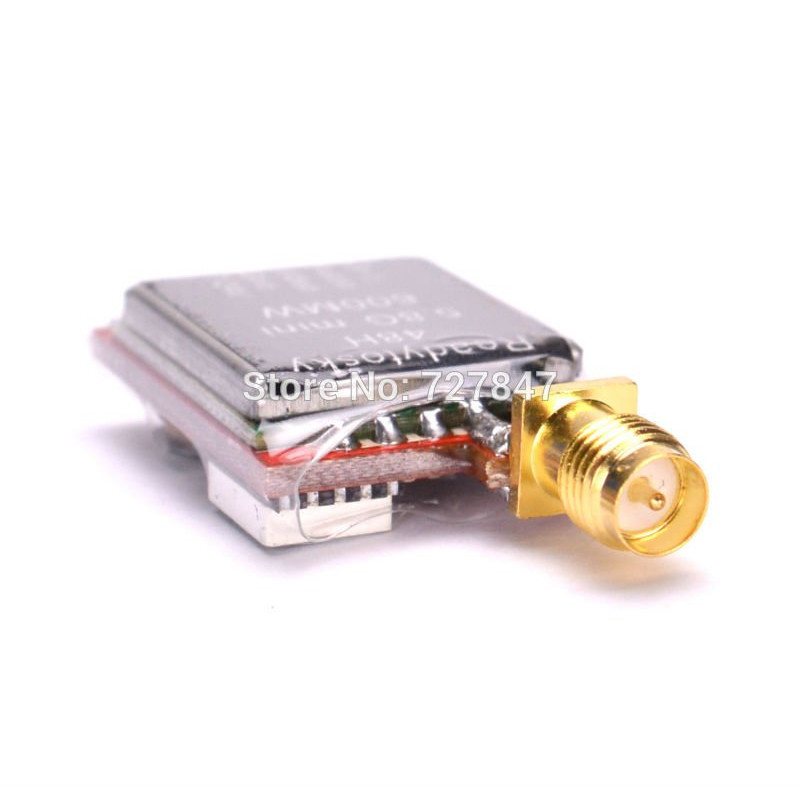

This TS5828 Mini 48CH 600MW Transmitter is the advanced version of our TS5828 5.8GHz 32CH transmitter. It features widely used 5.8GHz power for transmission.
The all-new TS5828 Mini 48CH 600MW Transmitter packs a whopping 600mW of ultra-clean 5.8GHz power! A must for those looking for longer range and locked in the video.
The TS5828 is transmitting a full range of 48 channels and uses an easy to use interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 15grams, its Perfect for a wide range of aircraft!
The TS5828 packs 600mw of 5.8GHz power and 48 channels into a micro-sized audio/video transmitter. It weighs just 15g completed with the wire harness and stock antenna, making it perfect for a wide range of aircraft and particularly for smaller 150-250 sized multi-rotors such as the 250QAV.
Features:
- Compact and lightweight
- Perfect for use with small models
- Covers A, B, C, D, H, L bands
- 48 Channels
- 600mw RF output
- Wide input voltage range
- Long range:1~2km with the stock antenna
- Stable signal

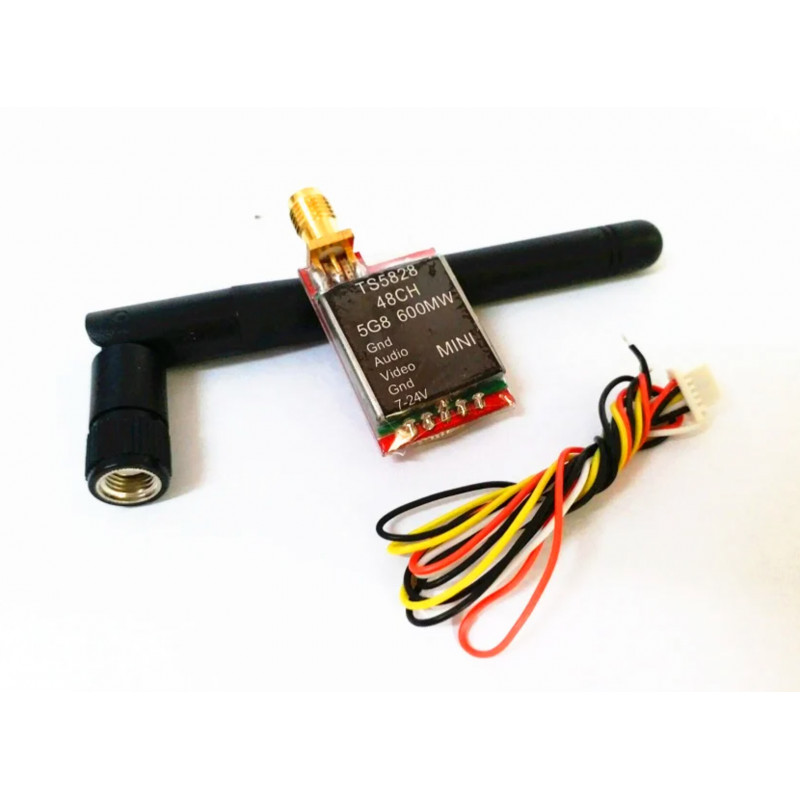

Package Includes:
1 x TS5828 Mini 48CH 600MW Transmitter module

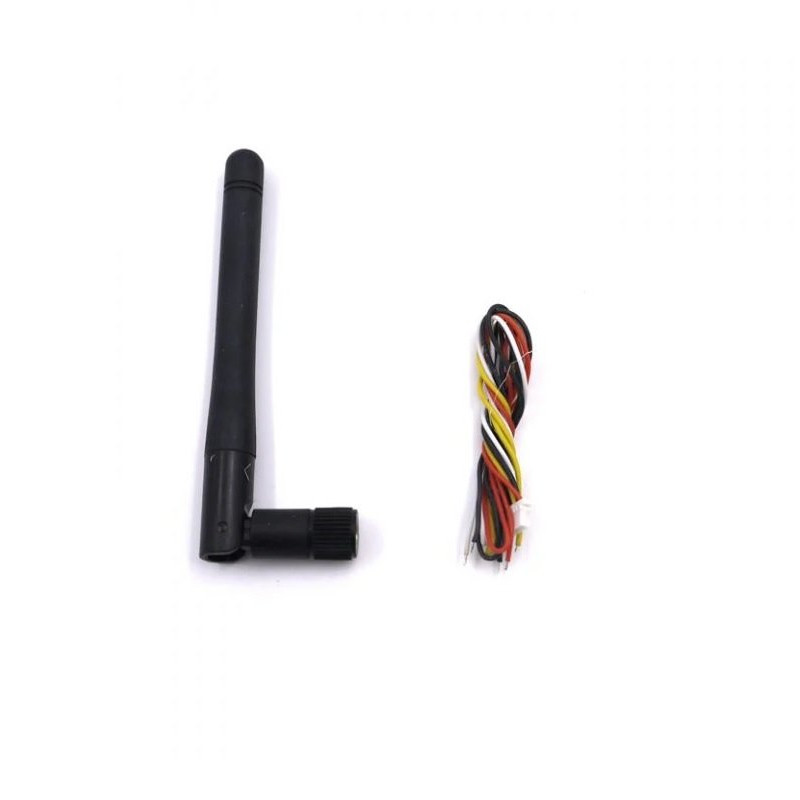

1 x Threaded Detachable Antenna
1 x AV Cable
Specifications:
| No. of Channels | 48CH |
| Rated Power (W) | 600mW |
| Frequency(GHz) | 5.6 to 5.9 |
| Operating Current (A) | 0.19 |
| Voltage(V) | 7 to 24 |
| Antenna Type | Male RP-SMA |
| Video Bandwidth | 8M |
| Audio Bandwidth | 6.5M |
| Operating Temperature (C) | -10 to 85 |
| Antenna Length(mm) | 106 |
| Antenna Diameter(mm) | 8 |
| Module Size (LxWxH) mm | 40 x 20 x 8 |
| Weight(gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1414.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TS5828 Mini 48CH 600MW Transmitter
- Product Code: EC-6136
- Availability: 13
-
Rs.1499.00
- (Excluding 18% GST)
