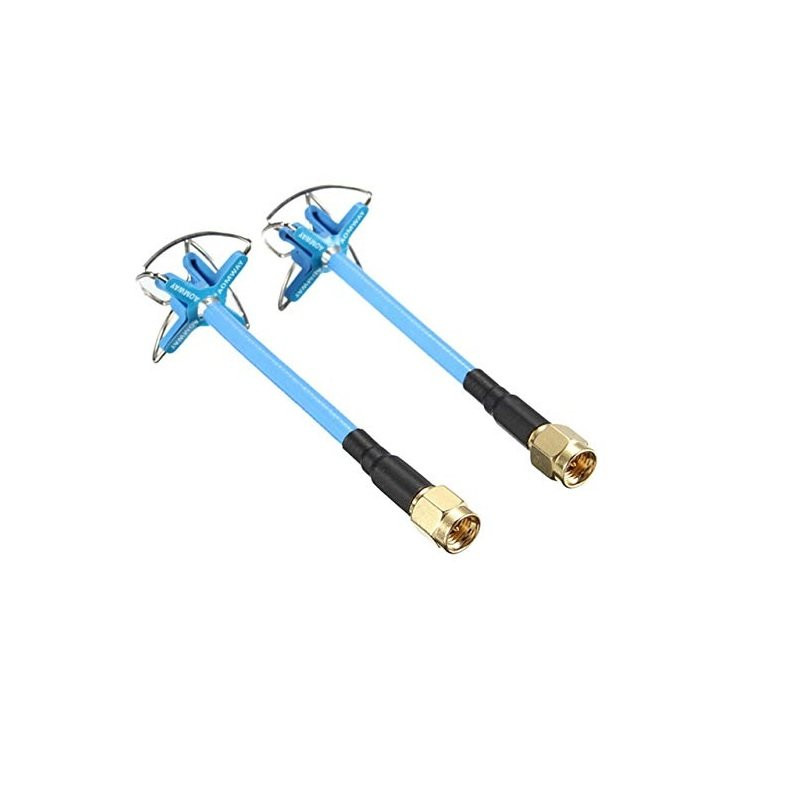

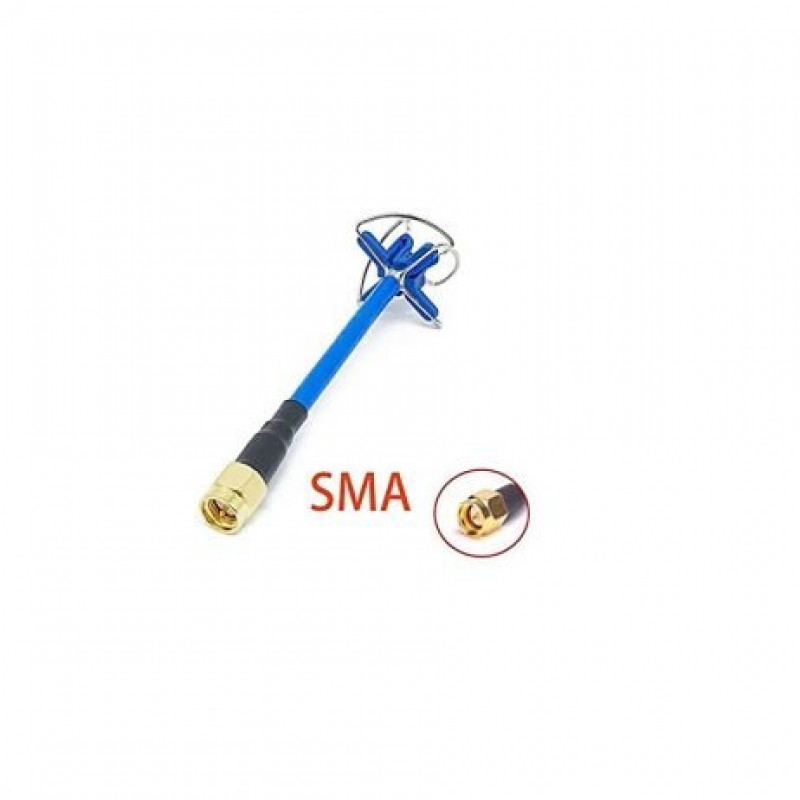

This 4 Leaf Clover RHCP RP-SMA Male Antenna is a great way to increase the performance of your FPV system.

The circular polarization helps reject multi path interference, a common problem with standard dipole stock antennas. Proven to increase range and video clarity, circularly polarized antennas have become the standard after-market essential upgrade for modern FPV systems. This is a matched Tx/RX pair for direct installation to any FPV set with SMA connectors.

Each antenna has extra reinforcement around the base of the cloverleaf assembly making them less susceptible to damage.


Features:

  1. Specially designed for VTX/VRX for long range FPV.
  2. Omnidirectional (compatible with video TX/RX).
  3. Robust construction.
  4. Connector RP-SMA, Frequency Range 5.8GHz, Impedance 50
  5. Polarization Circular polarization Right-handed(RHCP)
  6. High efficiency, excellent anti-interference capability, stable signal transmission
  7. Greatly increases video and audio signal.

Package Includes:

1 x4 Leaf Clover RHCP RP-SMA Male Antenna



Specifications :-

Frequency Range (GHz)

5.725~5.875

Standing Wave Ratio

<1.5

Polarization

Right Hand Circular Polarization

Gain (dbi)

3

Impedance ()

50

Connector type

SMA

Color

Red

Length (mm)

88

Connector diameter (mm)

7.6

Weight (gm)

10


Brand/Manufacturer Generic
Country Of Origin China
