The BT152 SCE is a Planar passivated Silicon Controlled Rectifier in a SOT78 (TO-220AB) plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance.
Features:-
• High thermal cycling performance
• High voltage capability
• Planar passivated for voltage ruggedness and reliability
• Very high current surge capability
Applications:-
• Ignition circuits
• Motor control
• Protection circuits e.g. SMPS inrush current
• Voltage regulation
Specifications:-
| Symbol | Parameter | Ratings | Units |
| VRRM | Repetitive Peak Reverse Voltage | 600 | V |
| IT(AV) | Average on-state current | 13 | A |
| IT(RMS) | Effective on-state current | 20 | A |
| ITSM | Non-Repetitive Peak On-state Current | 200 | A |
| Tj | Junction Temperature | 125 | °C |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 56.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

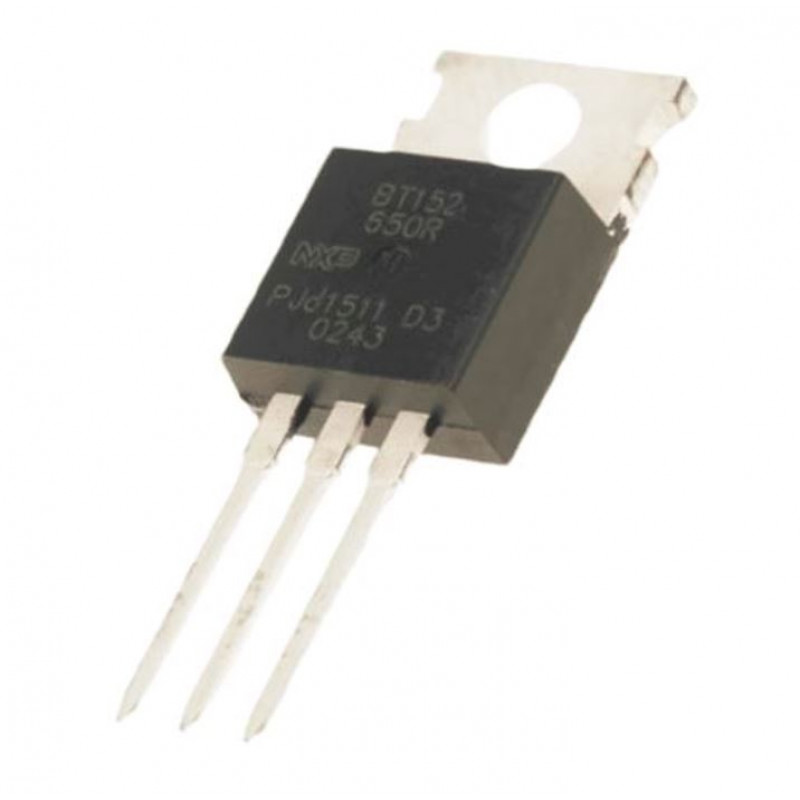

BT152 - 650V - 13A SCR - Thyristor
- Product Code: EC-1934
- Availability: 1638
-
Rs.48.00
- (Excluding 18% GST)
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 9 0% 48.0000 10 - 24 4% Rs.46.00 25 - 49 10% Rs.43.00 50 - 99 17% Rs.40.00 100+ 23% Rs.37.00
