The 24GHz mmWave Sensor for XIAO is an advanced FMCW technology-based human body sensing module, designed for the XIAO development platform. With a 5-meter sensing range and 60-degree detection angle, it accurately identifies static and moving human bodies. This module excels in indoor environments, offering real-time detection and supporting Bluetooth for easy parameter debugging. Its environmental adaptability, shell penetration capability, and flexible configuration options make it an ideal solution for various applications.

Features:

1. FMCW Principle: Highly sensitive, immune to environmental interferences
2. Comprehensive Detection: Identifies static, moving, micro-movements, sitting, lying positions
3. Intelligent Parameter Adjustment: Bluetooth or serial port for flexibility, direct app configuration
4. Wide Detection Angle: Up to 60 degrees
5. Long Sensing Distance: Detects movement up to 5 meters away
6. Shell Penetration: Works discreetly without surface perforations, enhancing aesthetics

Application

1. Human body sensor light control
2. Life safety protection
3. Smart home appliances
4. Intelligent security

Package Includes:

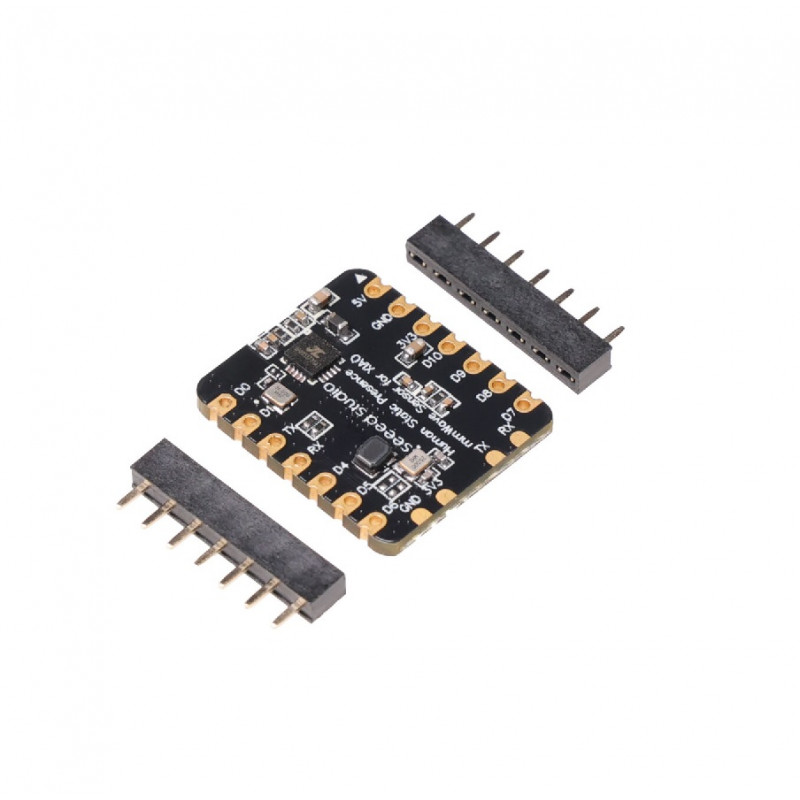

1 x 24GHz mmWave Sensor for XIAO Human Static Presence

2 x 7-pin female header
