EMG detector is a bridge that connects the human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. You can add this signal to your control system. Note: The sensor cannot be used for medical purposes.
In standby mode, the output voltage is 1.5V. When detect muscle is active, the output signal rises up, the maximum voltage is 3.3V. You can use this sensor in a 3.3V or 5V system.
Features :
- Grove Compatible
- 6 Disposable Surface Electrodes
- 1000mm Cable Leads
- No additional power supply
Package Includes :
1 x SeeedStudio Grove EMG Detector Module
1 x JST cable
1 x 6 Electrodes
1 x ECG Snap with 3.5mm Aux Audio Jack Medical Lead Wire
Specifications :-
| Connector | 3.5mm |
| Input Supply Range (VDC) | 3.3V-5V |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 3538.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

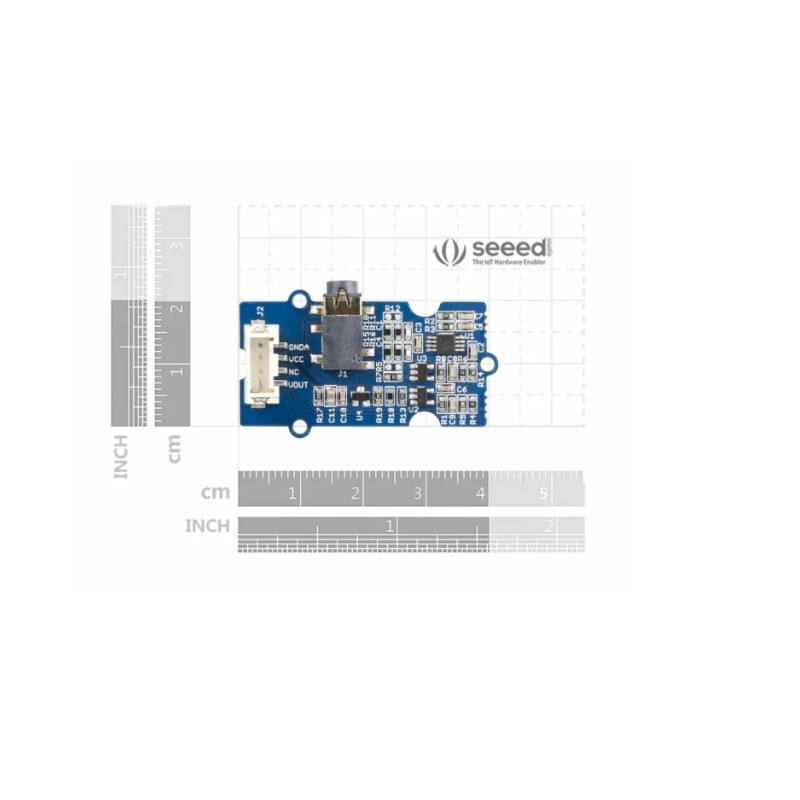

SeeedStudio Grove EMG Detector Module
- Product Code: EC-8053
- Availability: 9
-
Rs.3332.00
- (Excluding 18% GST)
