Grove Mouser Encoder is a mechanical incremental rotary encoder (A, B channel) with a feedback of direction and speed. It features a standard Grove interface that will save your lots of work in wiring and programming. Also, it is well adapted to heavy-duty and a harsh environment. This product can be applied in toys, robots, and consumer input devices.
Note that the rotating speed is designed to be less 1000 rad/min(radian per minute).
Features:
- Versatile for different environments.
- Well adapted for heavy-duty and harsh environments.
- With detents and a nice feel.
- Standard Grove interfaces for easier programming and wiring.
- Accurate and reliable.

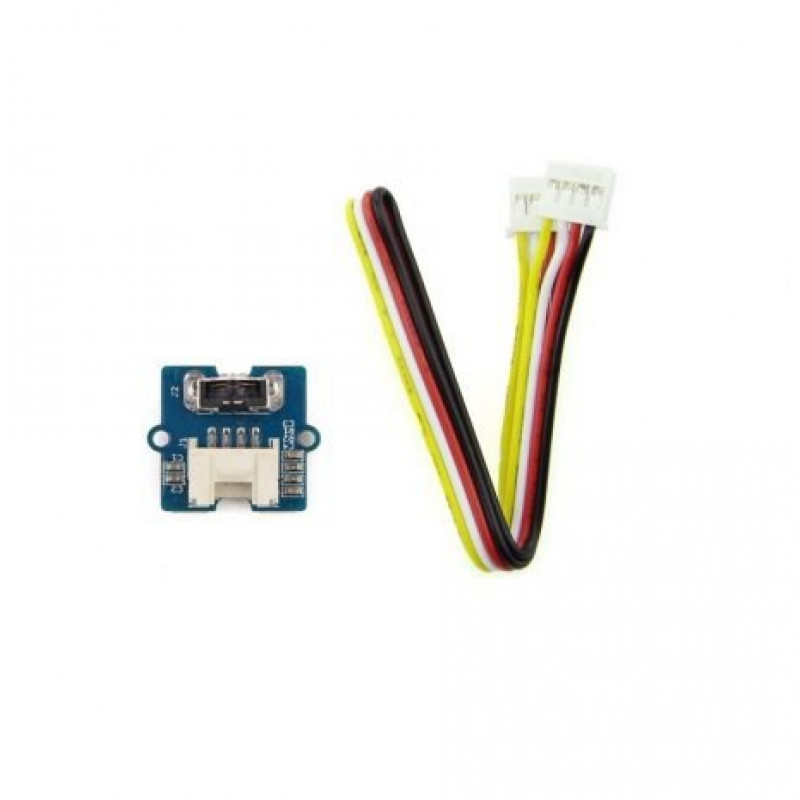

Package Includes:
1 x Grove Mouse Encoder Module
1 x Grove Universal Cable
Specifications :-
| Operating voltage(V)(Typical) | 3.3 |
| Operating voltage(V)Max. | 5.5 |
| Operating current(mA) (Typical) | 10 |
| Operating current(mA) | 13 |
| Duty(constant speed) | 50% |
| Phase difference(constant speed) | /4 |
| Pulse per circle | 12 |

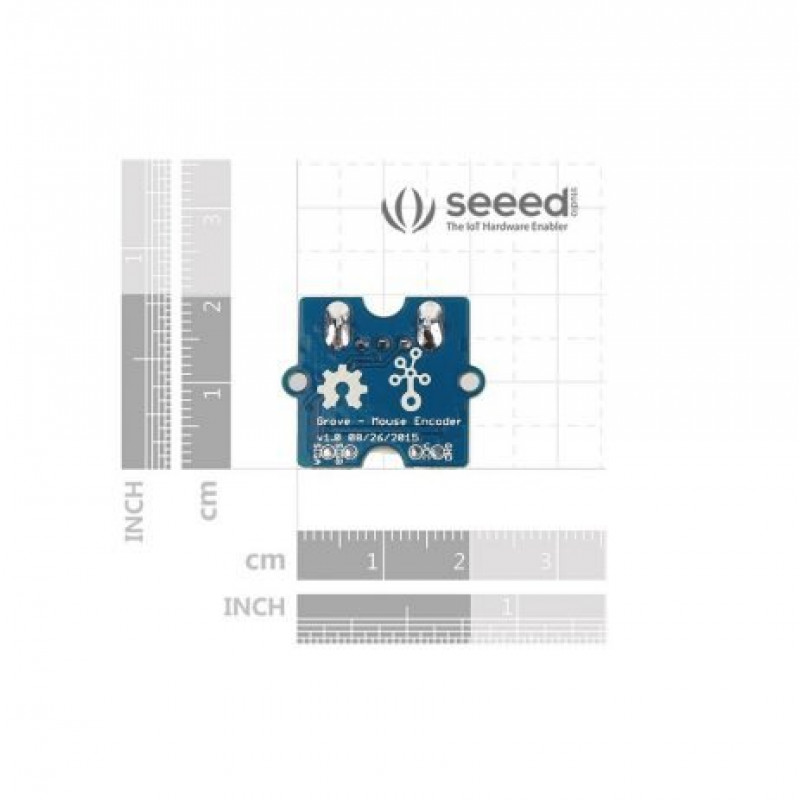

| Dimensions | 130mm x90mm x18mm |
| Weight | G.W 9g |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 619.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

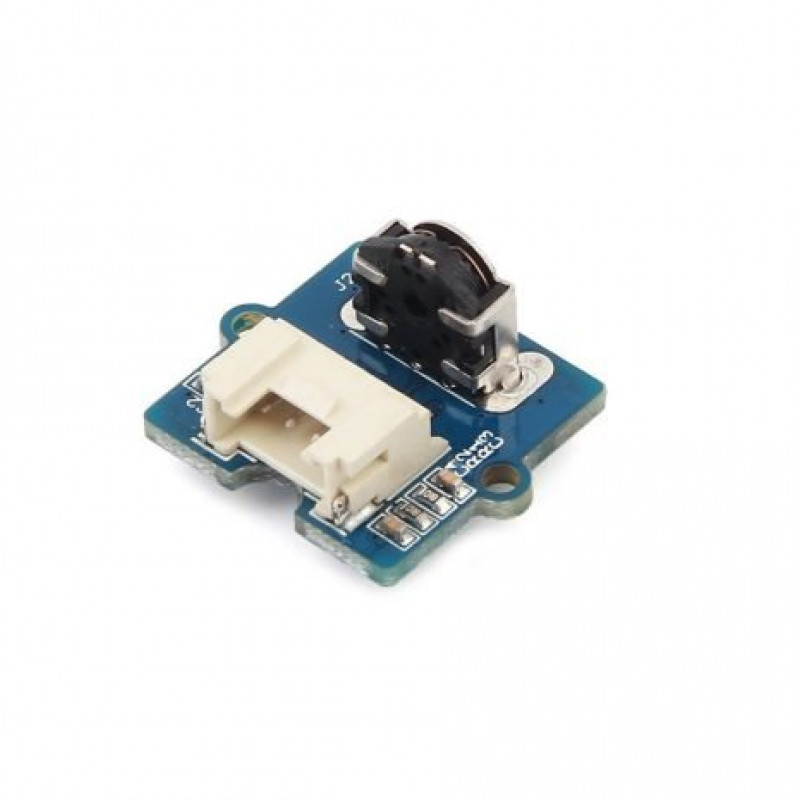

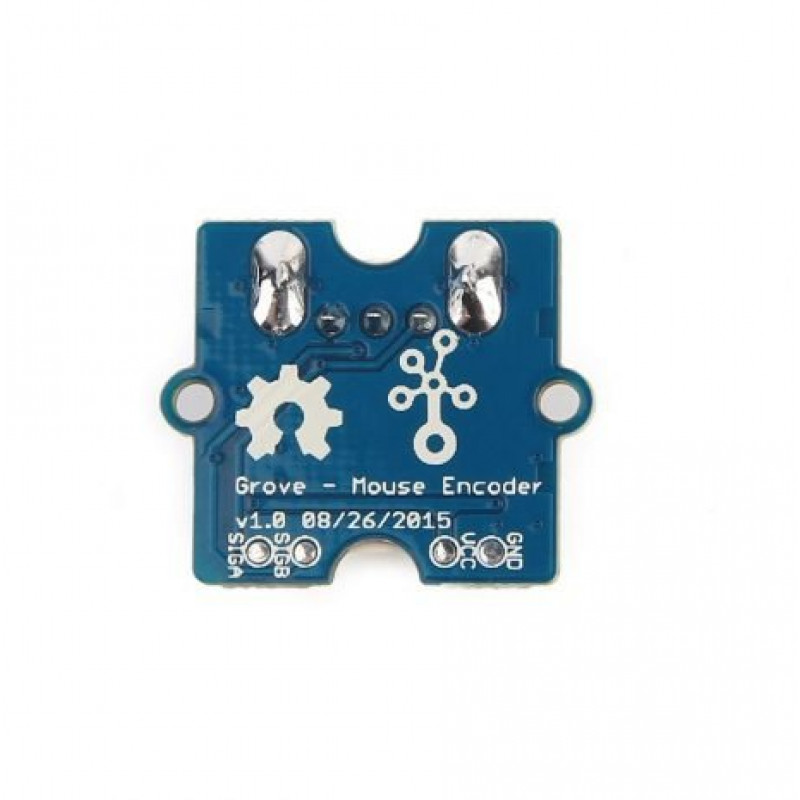

SeeedStudio Grove Mouse Encoder Module
- Product Code: EC-5174
- Availability: 34
-
Rs.632.00
- (Excluding 18% GST)
