Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes. With the Nextion Editor software, users are able to create and design their own interfaces for Nextion display.

The Nextion Enhanced series are more powerful compared to the Nextion Basic series. It has a faster MCU clock, built-in RTC, 1K EEPROM for user data, 8 digital GPIO, larger flash capacity, and more RAM.

Features:

1. Nextion Type: Intelligent Series
2. Nextion Models: NX8048K070-011R (18.1 cm resistive touchscreen with enclosure)
3. Built-in RTC support (Battery type: CR1220)
4. Operating Voltage:5V-7V
5. Operating Current: 510mA(VCC=+5V, Brightness is 100%).

Package Includes:

1 x Power Supply Test Board

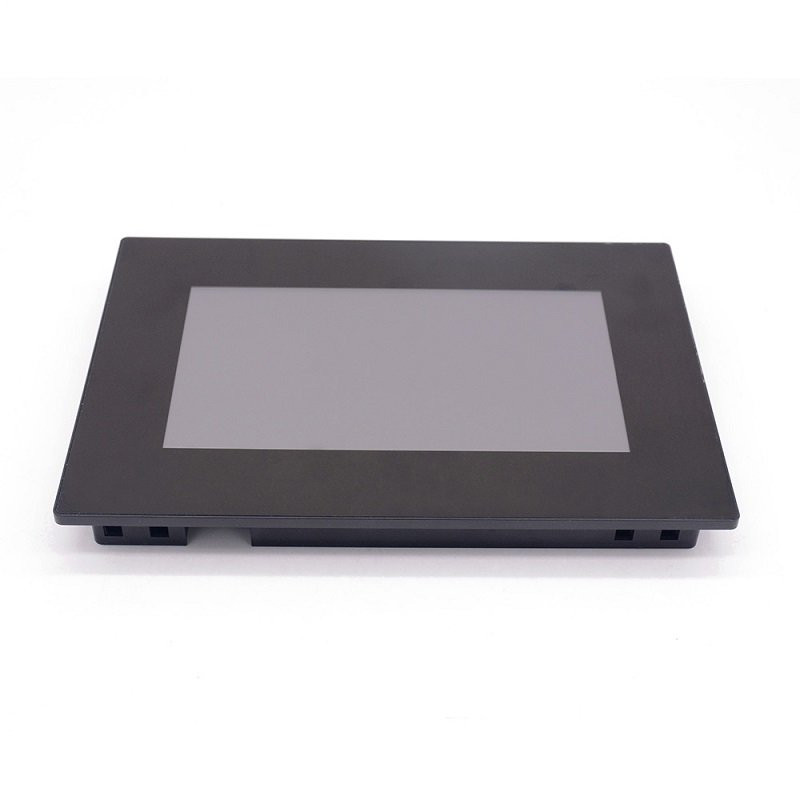

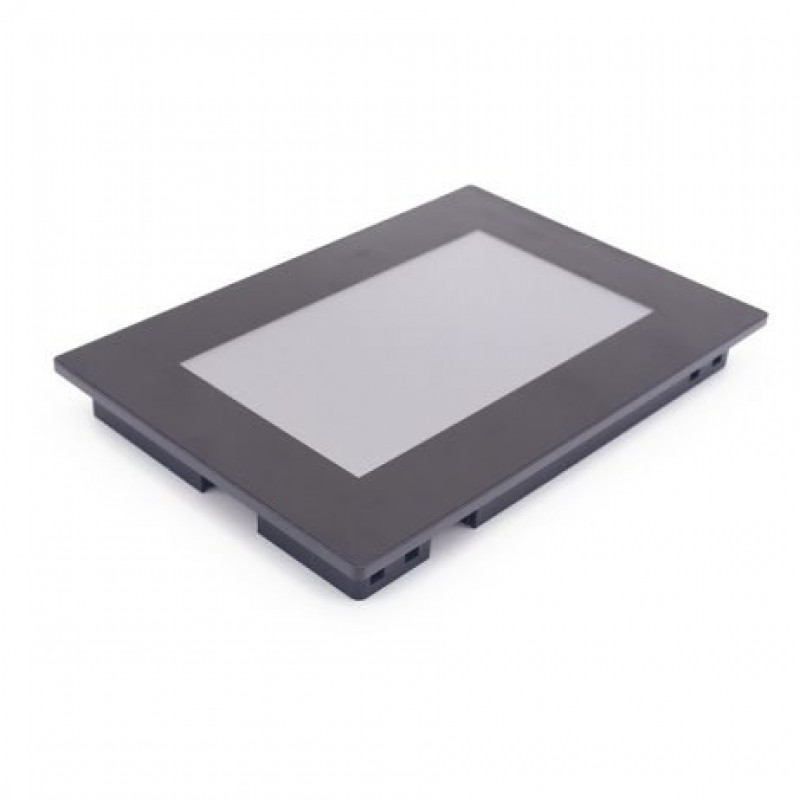

1 x Nextion 18.1 cm (7 inch) Enhanced NX8048K070-011R HMI Resistive Touch Display with enclosure

1 x XH2.54 4P Wire

4 x Mounting Buckle & Screw

Specifications :-

Model Name	NX8048K070-011R
Colour	64K 65536 colors

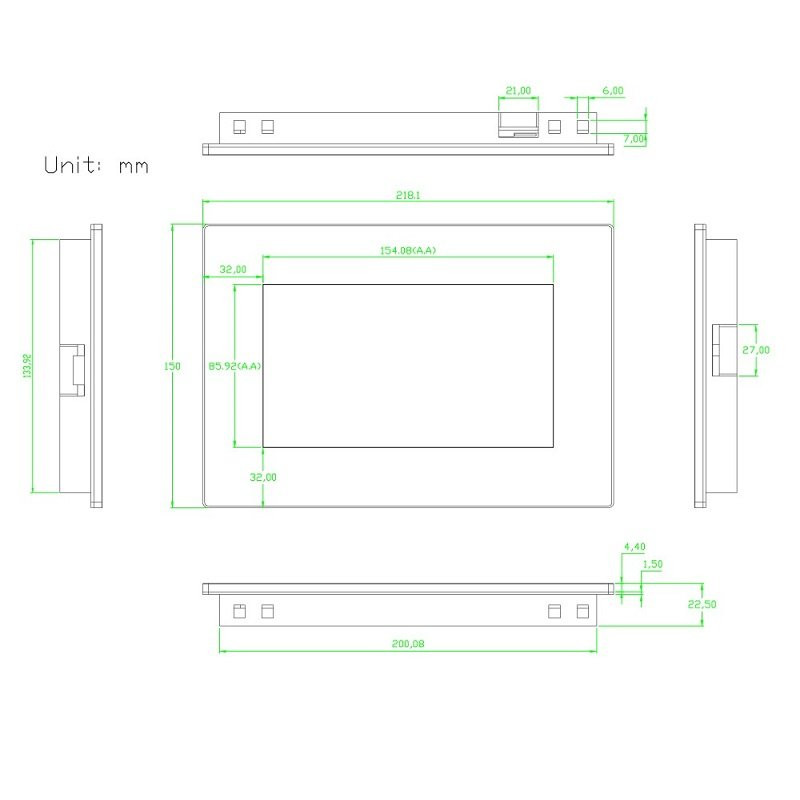

Layout size	18.1 cm(L) x 10.8 cm(W) x 0.93 cm(H)
Resolution	800 x 480 pixel
Touch type	Resistive
Touches	> 1 million
Backlight	LED
Backlight lifetime (Average)	>30,000 Hours
Brightness	230 nit
RAM	8192 BYTE
FLASH Memory	32 MB
Instruction Buffer	1024 BYTE
User Storage	1024 BYTE
Weight	598g
