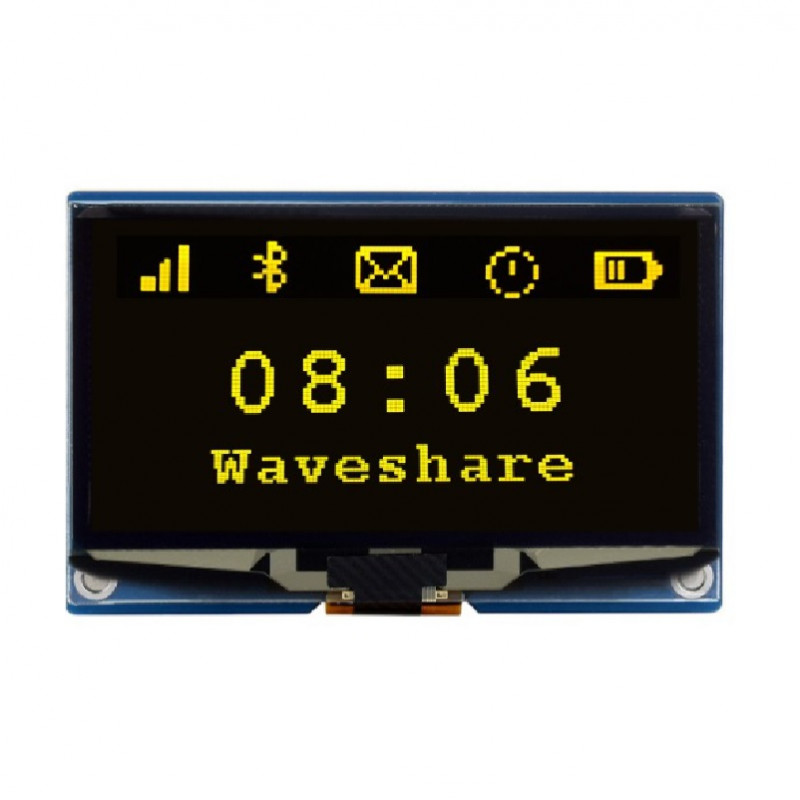

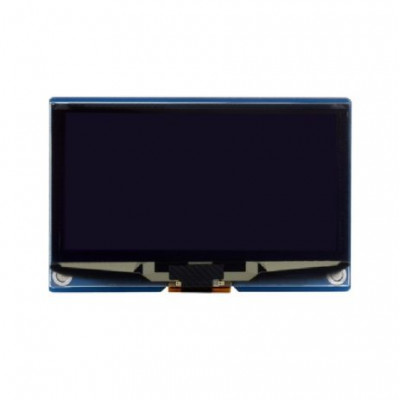

The Waveshare 2.42-inch OLED Display Module (C) boasts a crisp 12864 resolution, delivering vibrant visuals. Compatible with both SPI and I2C communication, it offers flexibility in connectivity. This module is ideal for various applications, providing clear and high-contrast displays.
Features:
- Ultra-narrow bezel, compact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32/ESP32/Jetson Nano)
Specifications:
- Operating Voltage: 3.3V / 5V
- Resolution: 128 64 pixels
- Communication Interface: 4-wire SPI (default) / I2C
- Display panel: OLED
- Driver: SSD1309
- Display size: 55.01 27.49mm
- Pixel size: 0.4 0.4mm
- Display color: 2.42inch OLED Module (C): yellow
Package Includes:
1 x 2.42inch OLED Module
1 x GH1.25 7PIN cable
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 2.42inch OLED Display Module(C), 12864 Resolution, SPI / I2C Communication Yellow Display
- Product Code: EC-29380
- Availability: 8
-
Rs.1349.00
- (Excluding 18% GST)
