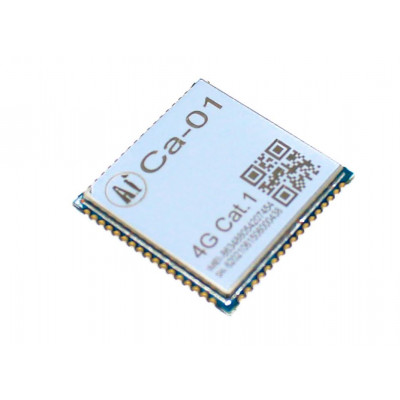

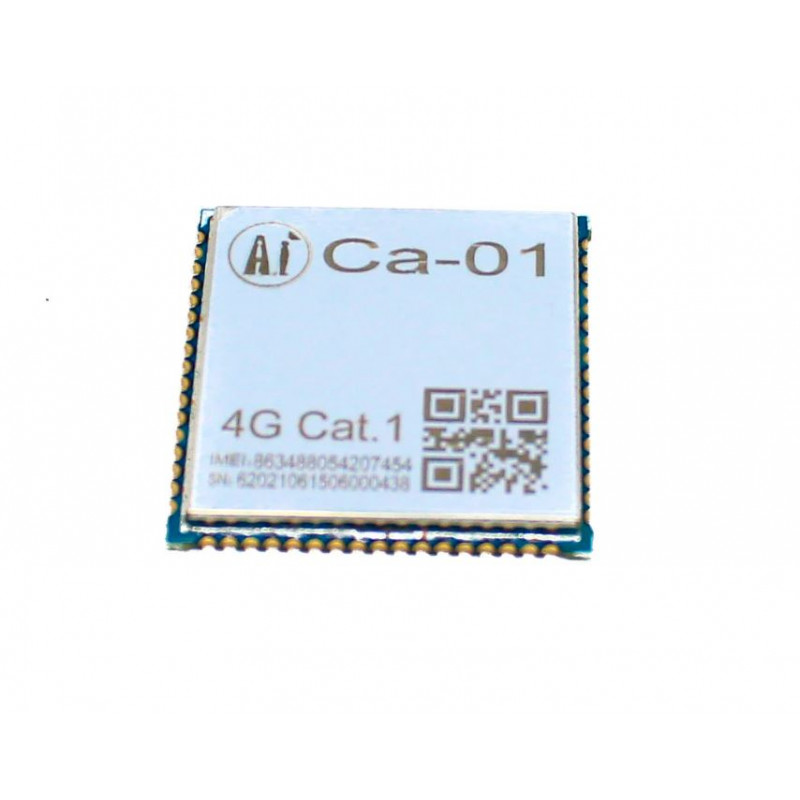

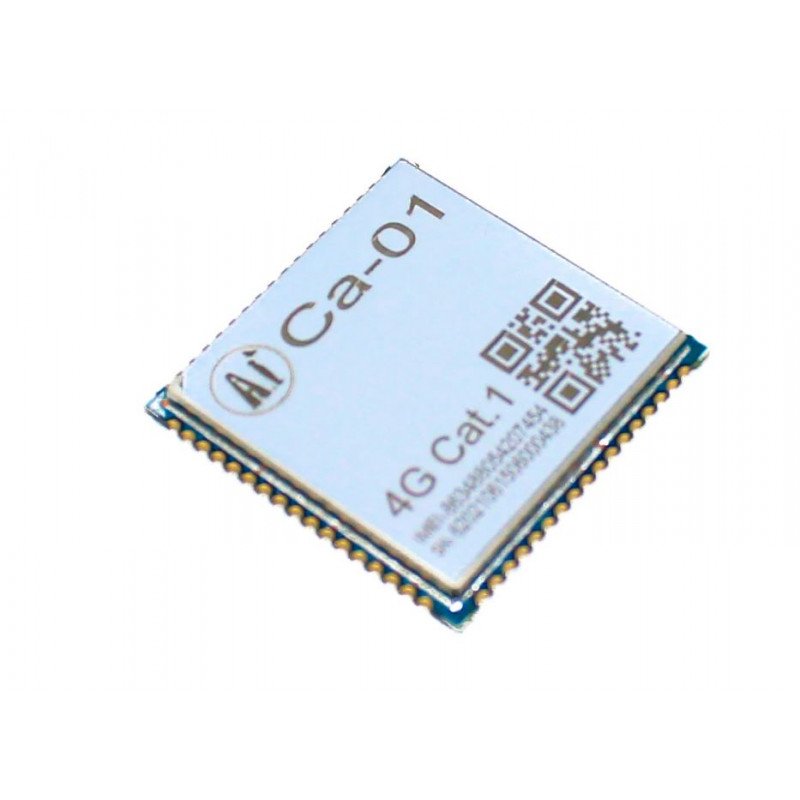

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It uses Ziguang’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module, which can adapt to different operators and products Maximum flexibility in product design.

Features:-

• Support Cat.1
• Support VoLTE
• Support 1.4 ~ 20MHz RF bandwidth
• LTE-TDD: uplink and downlink configuration 2
• Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
• LTE-TDD: uplink and downlink configuration 1
• Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
• Network protocol features
• Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
• In development: SMTP/SMTPS/MMS/DTMF
• USIM card interface
• Support USIM / SIM card: 1.8V and 3V
• USB interface
• Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
• Used for AT commands, data transmission, software debugging, software upgrade
• USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
• Serial port

Specifications:-

• Module : Ca01
• Communication standard : 4G
• Applicable frequency band : LTE-FDD: B1/B3/B5/B , LTE-TDD: B34/B38/B39/B40/B41
• General characteristics : 3GPP E-UTRA Release 13
• bandwidth : 1.4/3/5/10/15/20MHz
• Module size : 24.0mm X 24.0mm x 2.3mm

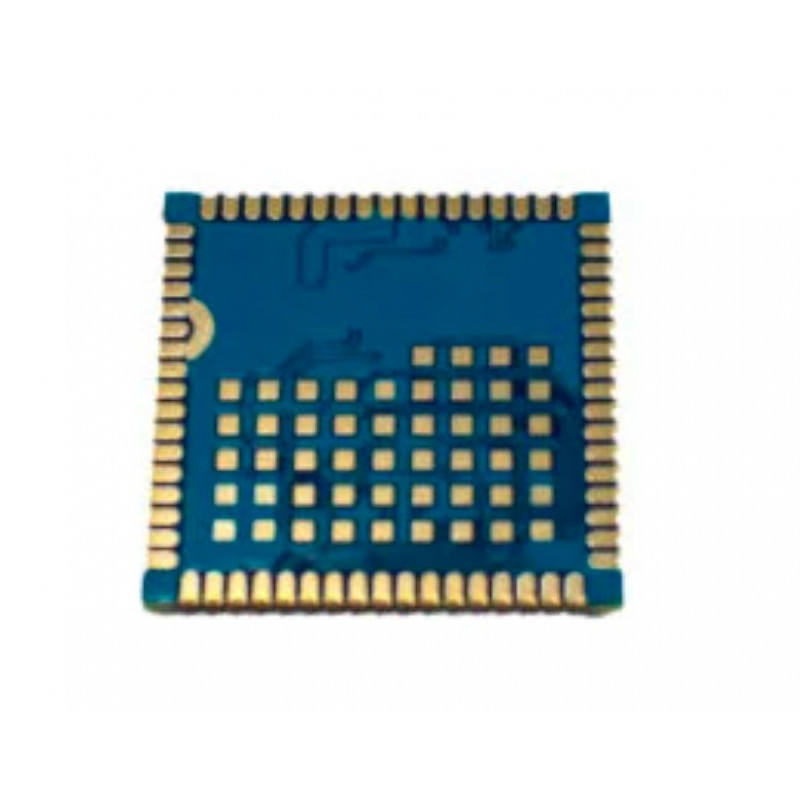

• Packaging method : stamp hole + LGA
• Module weight : about 2.6g
• Power supply voltage : Power supply voltage: 3.3V ~ 4.3V, typical value 3.8V
• Supports : Support VoLTE, Support Bluetooth, Support Wi-Fi positioning, Support SPI Support MIPI Camera, Support SPI LCD, Support 6×6 scan keyboard
• temperature range : Normal working temperature: -35 ° C ~ + 70 ° C
• Limit working temperature : -40 ° C ~ + 85 ° C
• LTE-TDD : Class3(23dBm+1/-3dB)
• LTE-FDD : Class3(23dBm+ -2dB)
• UART 1 : For AT commands and data transmission "Maximum baud rate 921600bps, default 115200bps ”Support hardware flow control (CTS / RTS)
• UART2 : UART2: "For debugging information output" Baud rate 115200bps
• HOST UART : used to output debugging information
• ZSP UART : ZSP UART: used to output debugging information

Package Includes:-

1 x Ai Thinker Ca-01 LTE Cat.1 Module
