Ai Thinker ESP-01M WiFi Module can be widely used on various occasions for networking, home automation, industrial wireless control, baby monitors, wearable electronics, infinite position sensing device, wireless positioning systems, signals, and other networking applications, networking applications is the ideal solution.

Ai Thinker ESP-01M WiFi Module uses the DIP plug-in package, the unique design so that it can be flexible docking to existing products, especially suitable for automation, large-scale, modern production of low cost, convenient application in various networking hardware terminal applications.


Features:

  1. The smallest 802.11b/g/n Wi-Fi SoC module
  2. Uses low power 32bit CPU and compatible with an application processor
  3. Main frequency up to 160MHz
  4. Built-in 10Bit high precision ADC
  5. Support UART/GPIO/PWM/ADC interface
  6. Integrate Wi-Fi MAC/BB/RF/PA/LNA
  7. Support multiple sleep modes
  8. Standby power consumption as low as 1.0mW
  9. Embedded Lwip protocol stack
  10. Support STA/AP/STA+AP work model
  11. Support Smart Config/AirKiss
  12. Series Rate up to 4Mbps
  13. Universal AT instruction
  14. Support serial local upgrade and remote firmware upgrade
  15. Small size 18*18*2.8mm


Package includes:

1 x Ai Thinker ESP-01M WiFi Module


Additional information

Module Model

ESP-01M

Package/Case

DIP-18

Antenna Type

PCB

Transmit Power (dBm)

802.11b: 162 dBm (@11Mbps)
802.11g: 142 dBm (@54Mbps)
802.11n: 132 dBm (@HT20, MCS7)

Receiving Sensitivity

54 Mbps (3/4 64-QAM): -70dBm
6 Mbps (1/2 BPSK): -88dBm
CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm

UART Baudrate

Support 300 ~ 4608000 bps Default 115200 bps

Frequency Range

2412 ~ 2484MHz

IO Port

11

Security

WEP/WPA-PSK/WPA2-PSK

Storage Environment

-40 ~ 90 , < 90%RH

Interface

UART/GPIO/PWM/ADC

Operating temperature

-20 ~ 85

SPI Flash

built-in 1MByte

Power Supply Voltage

3.0V ~ 3.6VCurrent >300mA

Length(mm)

18

Height (mm)

2.8

Width (mm)

18

Weight (gm)

3


Brand/Manufacturer Ai Thinker
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 218.3 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

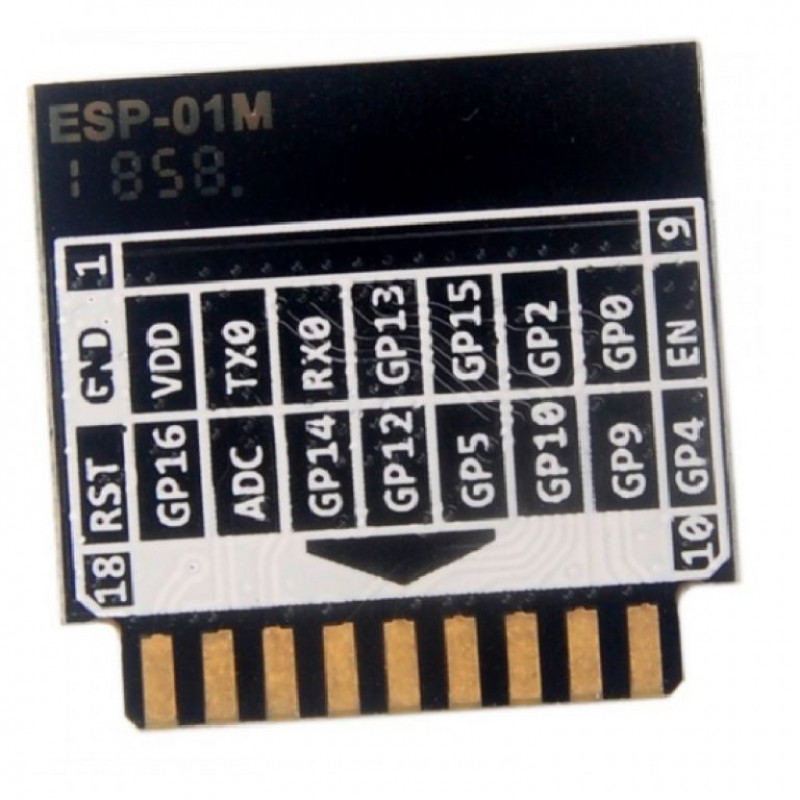

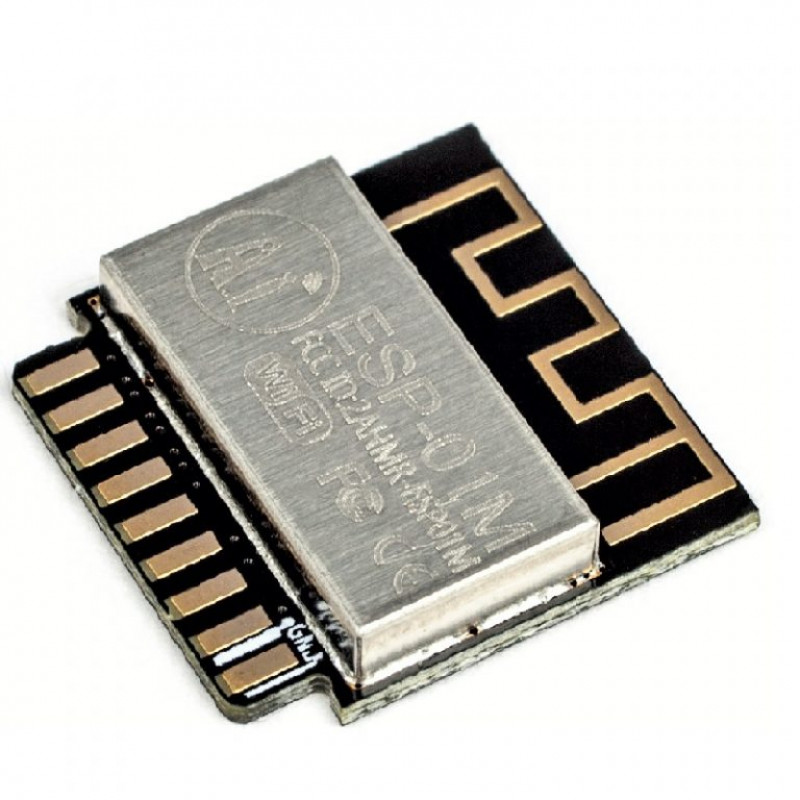

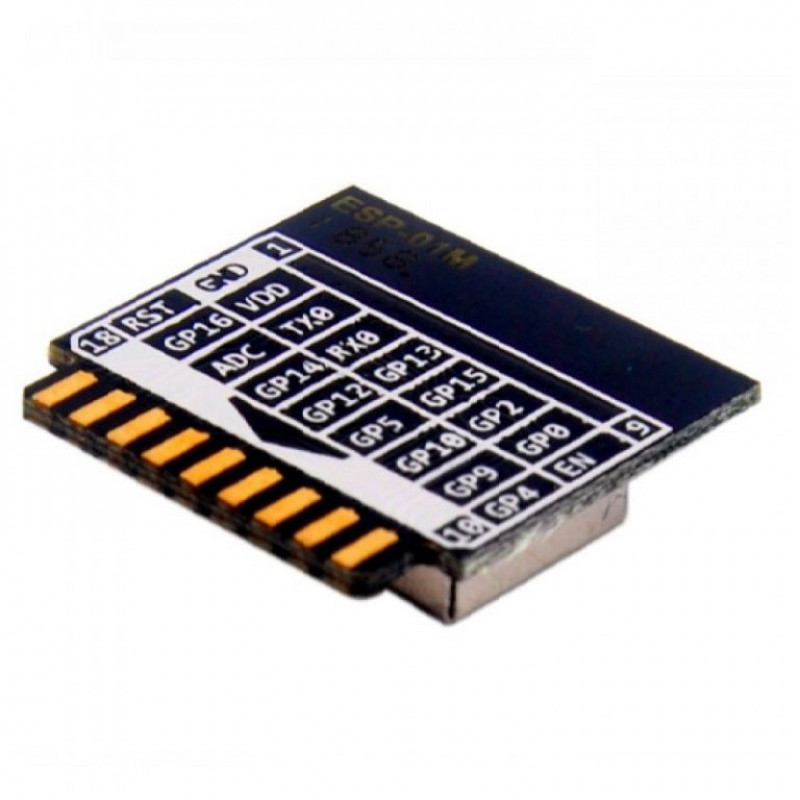

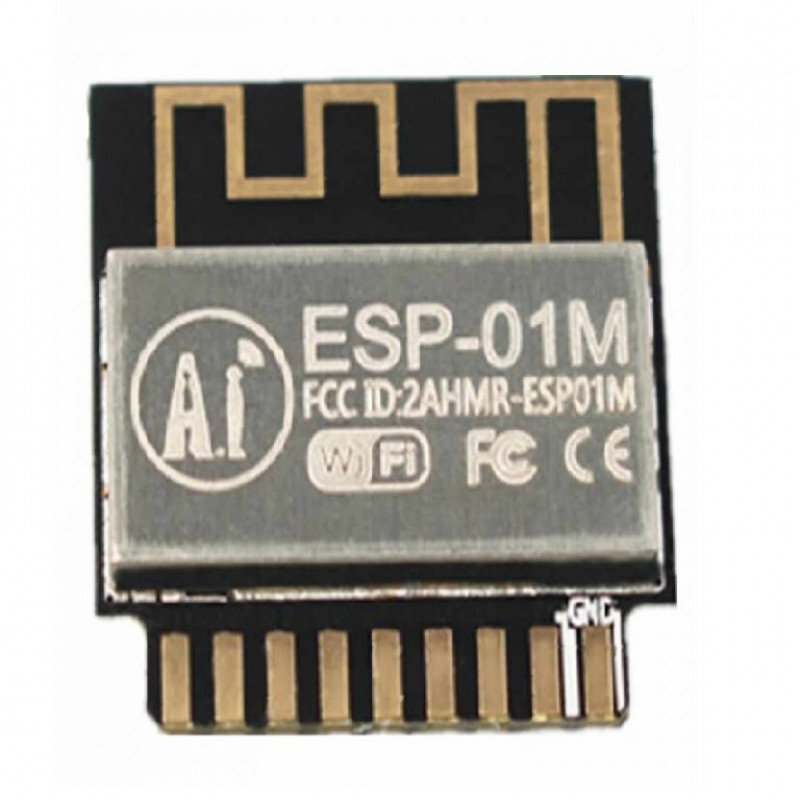

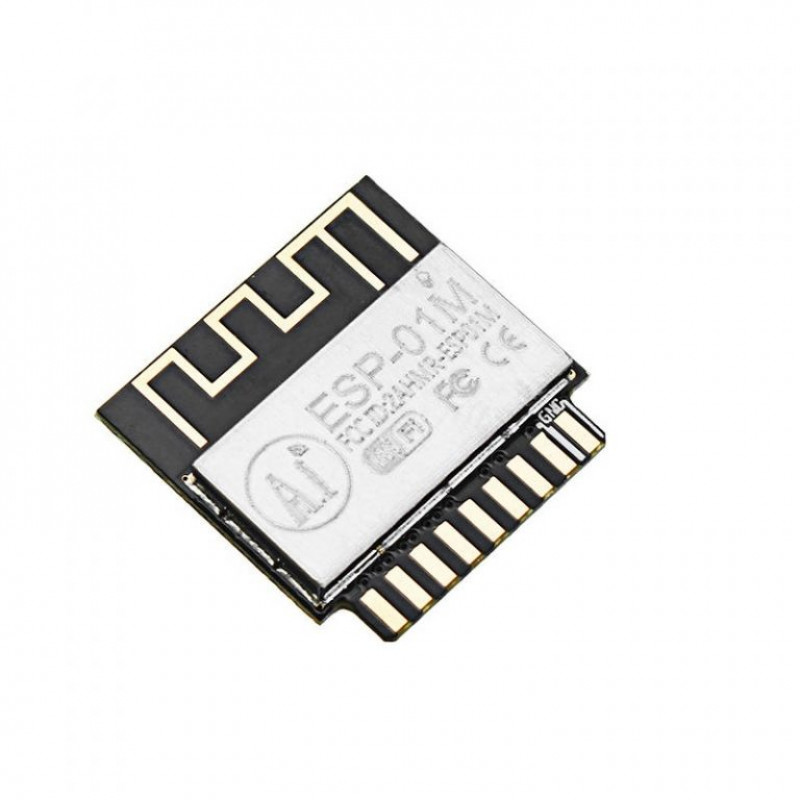

Ai Thinker ESP-01M WiFi Module
