HC-02 Bluetooth serial communication module is based on the Bluetooth v2.0 Bluetooth protocol data transmission module, high stability, ultra-low power consumption, industrial-grade Bluetooth data transmission module.

Users do not need to care about complex wireless communication configuration and transmission algorithms. They only need to connect to devices through the TTL serial port. Powered the HC-02 slave module, and can be connected to the mobile phone for data transmission. In addition, it can be used with HC-05orHC-06hosts(matching code, default is 1234) to connect, can replace a traditional serial line, save wiring work, use its very flexible.

Features

1. Support transparent transmitted with iPhone, integrated with the advantage of Bluetooth 4.0 BLE (Support iPhone 4s version above, cannot connect with the phones Bluetooth directly, need a BLE Bluetooth serial port assistant)
2. Compatible with HC-05 and HC-06 Bluetooth serial port module, Bluetooth 2.0 with EDR, 2 MBPS 3 MBPS modulation
3. Built-in 2.4 GHz antennas, users need to debug the antenna
4. Support transparent transmitted with Android smartphone and notebook computer
5. Support transparent transmitted with desktop computer via HC-06-USB

Specifications:

1. Model: HC-02
2. Working Frequency:2.4G
3. Communication Interface: UA pin 3.3V TTL level
4. Input Voltage: 3.2~ 6V
5. Operating Voltage: 3.0 ~ 3.6V
6. RSSI Support: not support
7. Communication Level:3.3V
8. Transmitted Power: 6dBm (max)
9. Reference Distance: 10m
10. Air Data Rate: 2Mbps
11. Antenna Interface: Internal PCB antenna
12. Communication Current: 30mA
13. Receiving Sensitivity: -85dBm @ 2Mbps
14. Work Humidity: 10% ~ 90%
15. Work Temperature:-25C ~ 75C
16. Storage Temperature: -40C ~ + 85C
17. Module Size: 37 x 15.6mm

Package Includes:

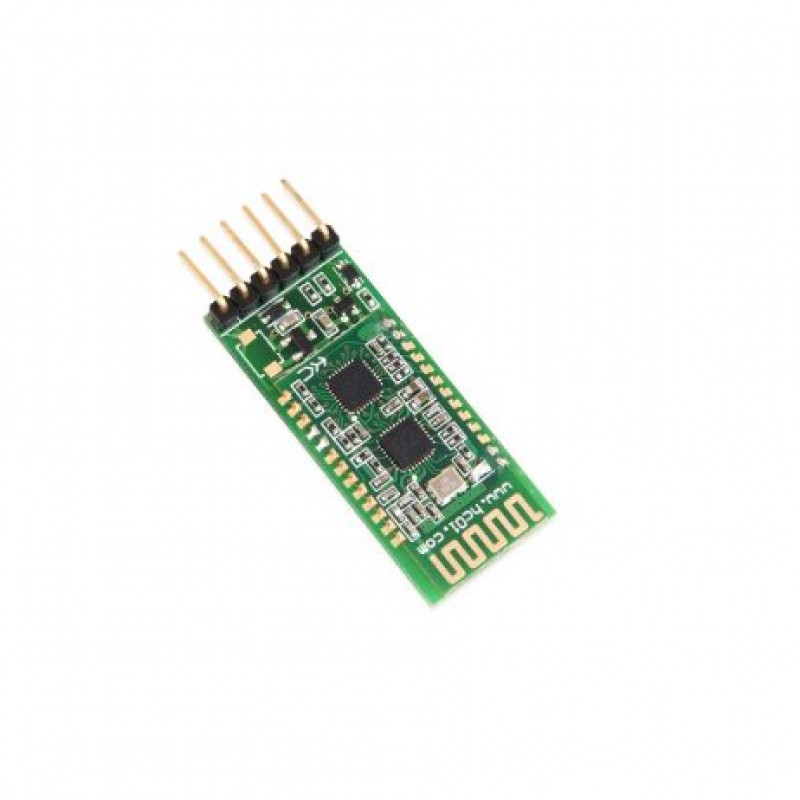

1 x HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06
