The JDY-31 SPP-C module is a Bluetooth serial pass-through module based on the Bluetooth 2.0 protocol. Its commonly used in electronics projects that require Bluetooth communication between devices. The module allows for wireless serial communication between devices, enabling data transmission over Bluetooth. It typically operates in transparent mode, meaning it passes data between devices without interpreting or modifying it.
Its important to note that the JDY-31 module uses an older Bluetooth version (2.0), which might have limitations compared to newer versions in terms of data transfer speed, range, and compatibility with newer Bluetooth-enabled devices. There might be newer versions or alternatives available if youre looking for more advanced Bluetooth functionalities.
Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability. Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Bluetooth Version: Bluetooth 2.0
- Serial Pass-through: Allows for transparent serial data transmission between devices.
- Low Power Consumption: Designed for efficiency in power usage.
- Ease of Use: Simple to integrate into projects requiring Bluetooth communication.
- Compact Size: Small form factor for easy integration into devices.
- Cost-Effective: Generally an affordable option for Bluetooth-enabled projects.
- Standard AT Commands: Supports standard AT commands for configuration and control.
Specifications:
- Model: JDY-31
- Working frequency band: 2.4GHZ
- Communication interface: UART
- Operating voltage: 1.8-3.6V (3.3V recommended)
- Working temperature: -40 C 80 C
- Antenna: Built-in PCB antenna
- Transmission distance: 30 meters
- Master-slave support: slave
- Bluetooth version: Bluetooth 3.0 SPP
- STM soldering temperature: <260C
- Unconnected operating current: 4.7mA
- Current after BLE connection: 7.3mA
- Transmitting power: 8db (maximum)
- Receive sensitivity: -97dbm
- SPP maximum throughput: 16K bytes/s (android, window
- Product dimensions (mm): 27.5 x 13 x 1.6
- Product weight (g): 3g
Package Includes:
1 x JDY-31 SPP-C Bluetooth Module
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

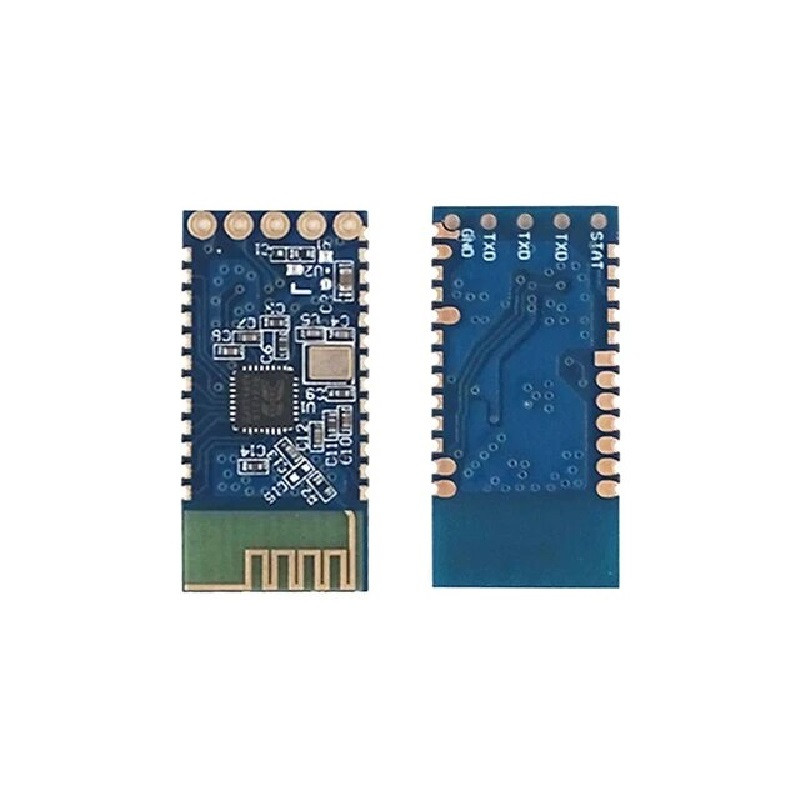

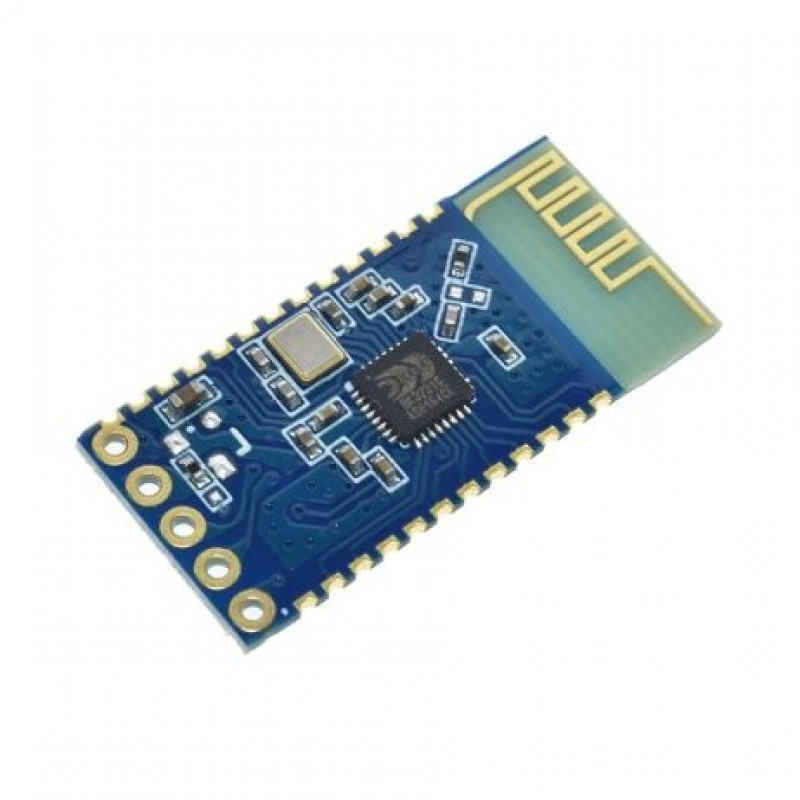

JDY-31 SPP-C Bluetooth Module
