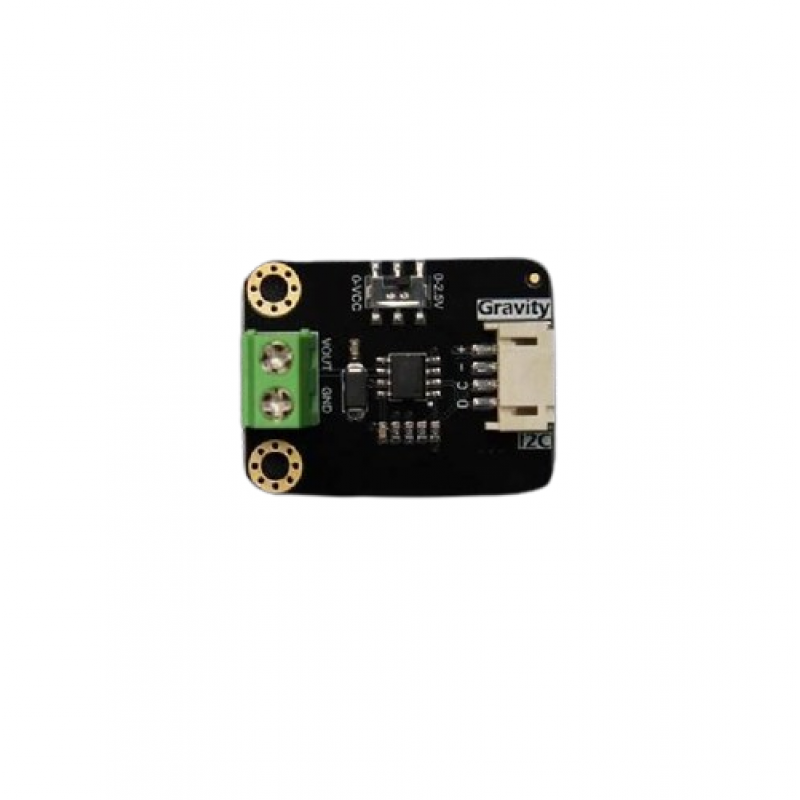

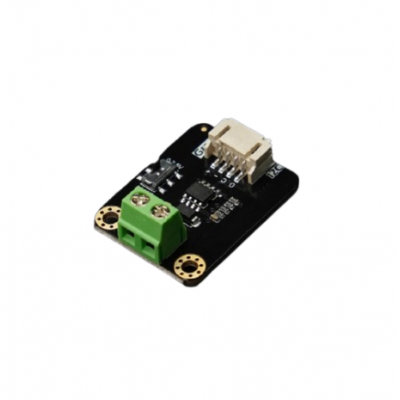

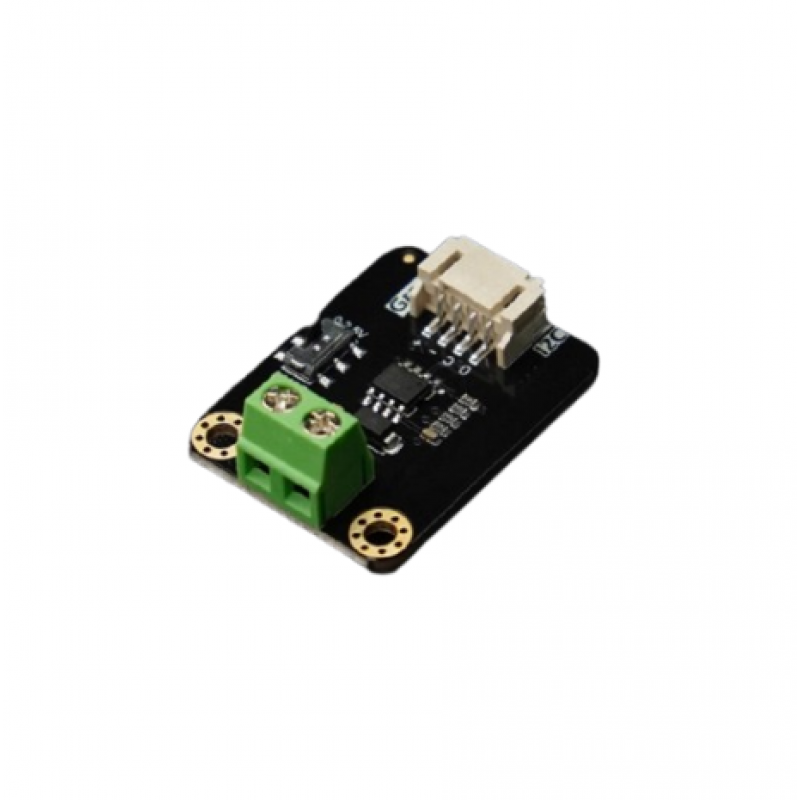

This is a 1-channel analog voltage output DAC module with I2C communication, 15-bit resolution, and 0.01% precision. It is well-suited for control projects operating within the 3.3V range, such as ESP32, Raspberry Pi, STM32, and other microcontrollers that require analog signal output.

The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy, such as fine speed control or angle control.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output

Applications:

1. Orchestrates automatic control of motor rotational speed
2. Facilitates the automatic modulation of volume
3. Governs temperature through automatic control mechanisms
4. Commands the automatic control of indoor and outdoor illumination
5. Functions as an apparatus for laboratory testing equipment

Features:

1. Support 3.3V-5V power supply.
2. Output voltage error is less than 0.01%.
3. The output voltage linearity error is 0.01%.
4. Two channels of voltage output, either 0-2.5V or 0-VCC, enable connection and control of standard analog voltage devices.
5. Gravity interface, I2C communication, Arduino control, suitable for program automation control.
6. The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy.

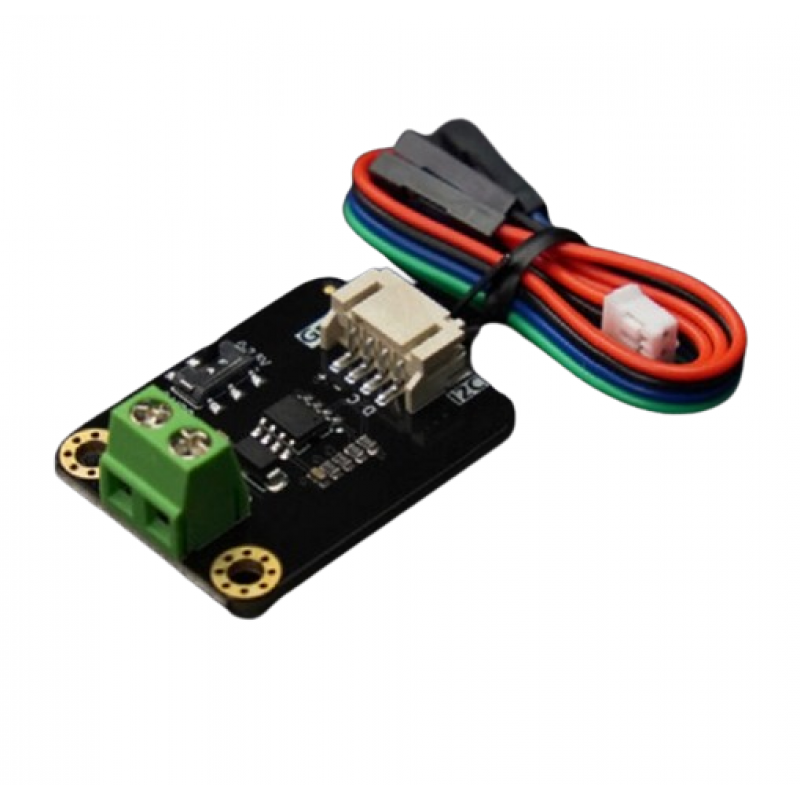

Package Includes:

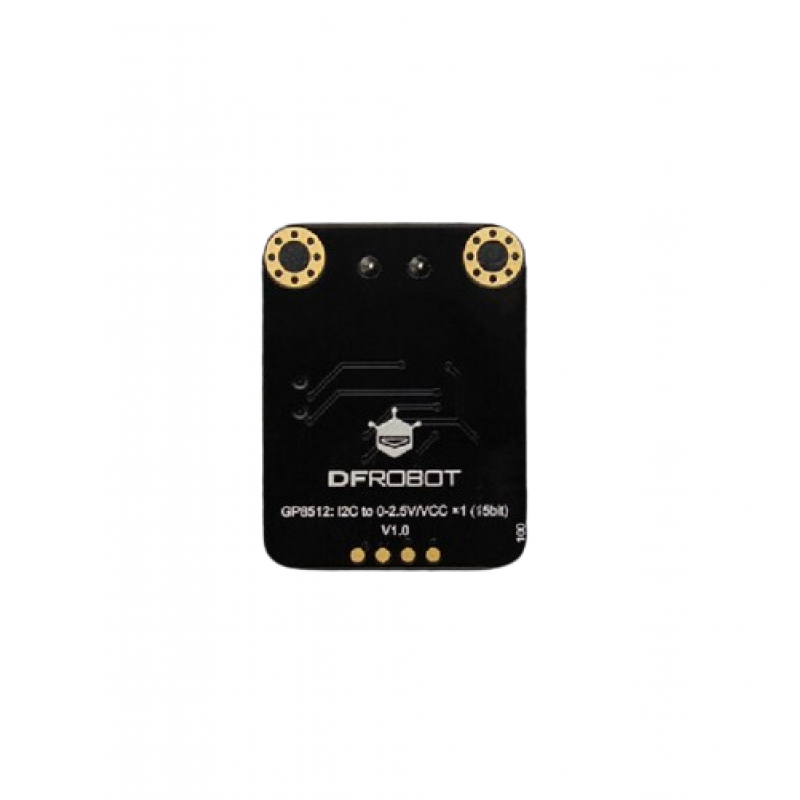

1 x GP8512: 1-Channel 15bit I2C to 0-2.5V/VCC DAC Module

1 x Gravity-4P I2C/UART Sensor Cable
