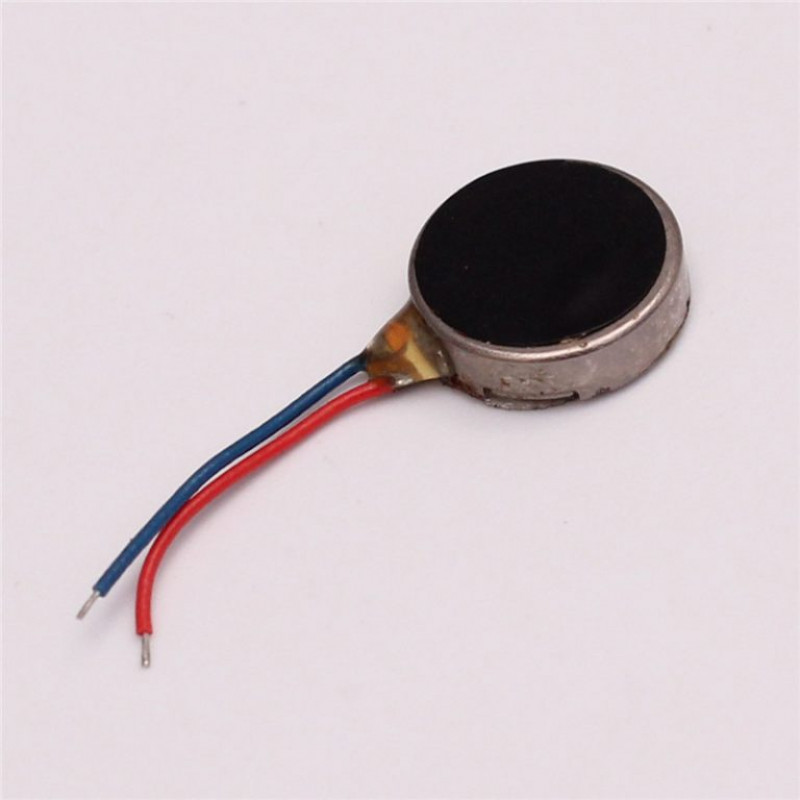

This Flat 1034 Mobile Phone Vibrator Motor is a shaftless vibration motor that is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.
The motor has a 3M adhesive backing on it for easy mounting and 1.5 leads for making quick connections. Polarity is not important; the motor can run CW or CCW.
This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60mA when 3V is applied to its leads.

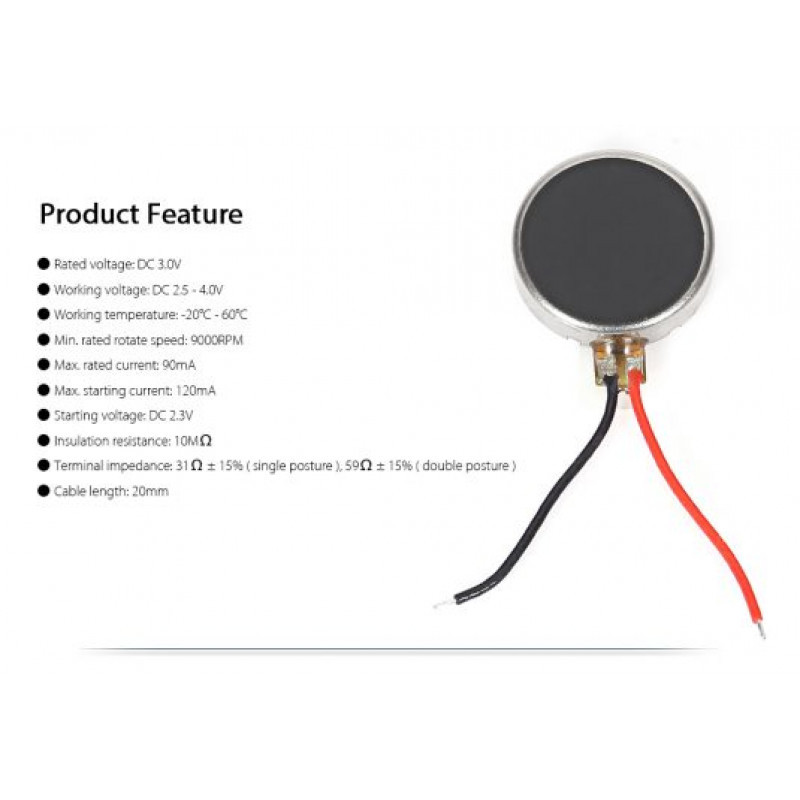

Specifications:-
| Type | 1034 |
| Rated Voltage(V) | 3 |
| Operating Voltage(VDC) | 2.5 to 4 |
| Operating Temperature (C) | -20 to 60 |
| Min. Rated Speed(RPM) | 9000 |
| Max. Rated Current(mA) | 90 |
| Max. Starting Current(mA) | 120 |
| Cable Length | 20 cm |
Package Includes :
1 x Flat 1034 Mobile Phone Vibrator Motor.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Flat 1034 Mobile Phone Vibrator Motor
- Product Code: EC-4767
- Availability: 1135
-
Rs.19.00
- (Excluding 18% GST)
