This is a one-channel Modbus RTU relay module equipped with a stable 8-bit MCU and RS485 level communication chip, adopting standard MODBUS RTU format RS485 communication protocol. It can realize 2-bit input signal detection and provides a 2-bit relay output. It can be used for digital detection or power control occasions.
Application:
- Supports all MCU control.
- The industrial field.
- PLC control.
- Smart home control.
Features:
- .Modbus serial communication
- Relay switching output
- Convenient AT command control
Specification:
- Product Name:1 Bit ModbusRTU Relay Module
- Working Voltage: DC 12V
- Working Current:1A
- Work Temperature:-25~85
- Work Humidity:5%~95%RH
- Size:84*27*20mm
Package Includes:
1 x 12V Modbus RTU 1 Channels Relay Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 553.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

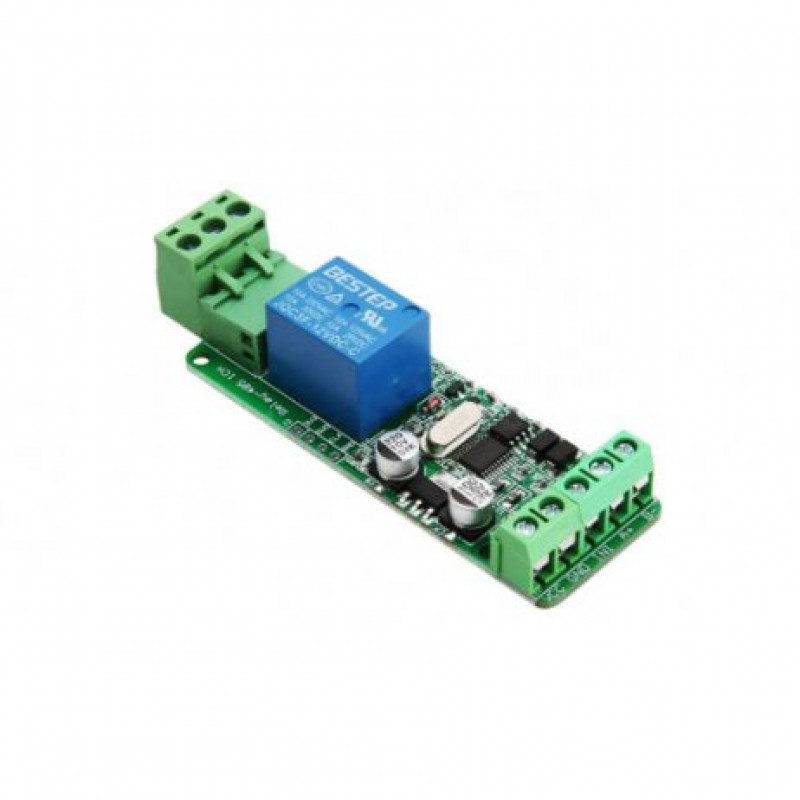

12V Modbus RTU 1 Channel Relay Module Optocoupler RS485 MCU for Arduino
- Product Code: EC-7917
- Availability: 4
-
Rs.537.00
- (Excluding 18% GST)
