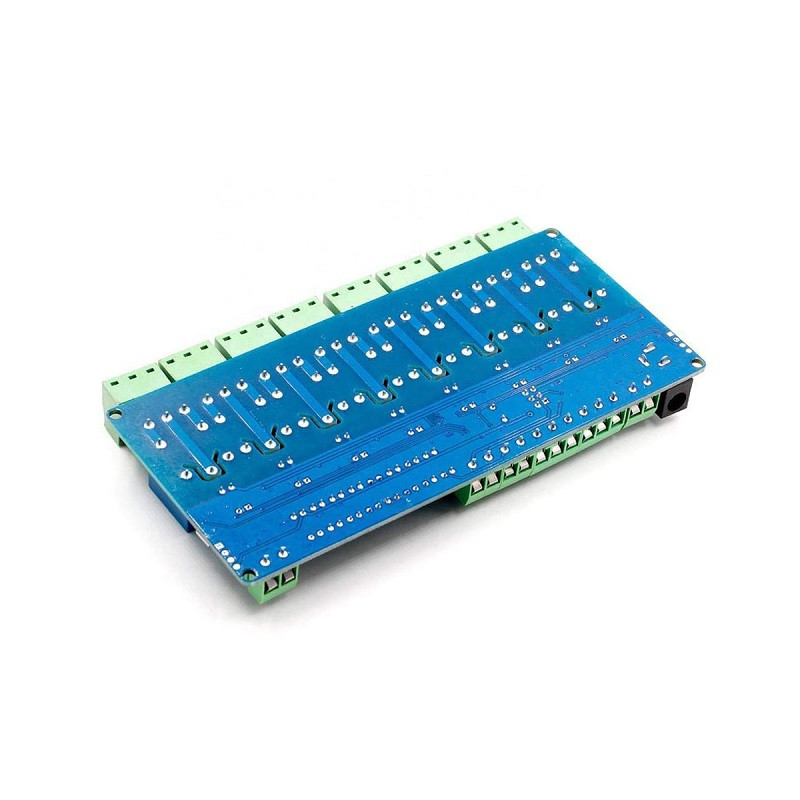

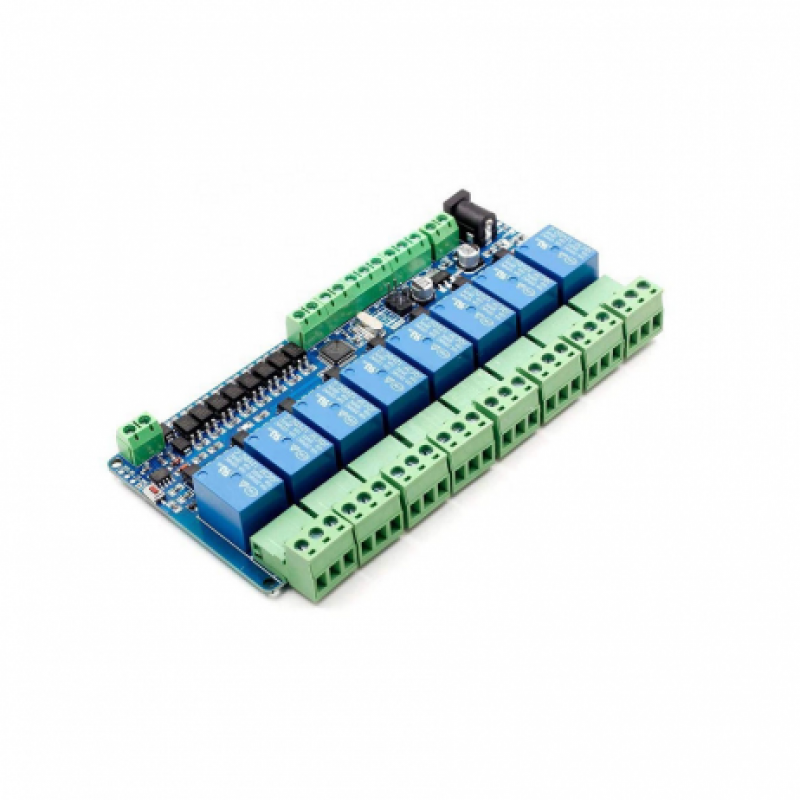

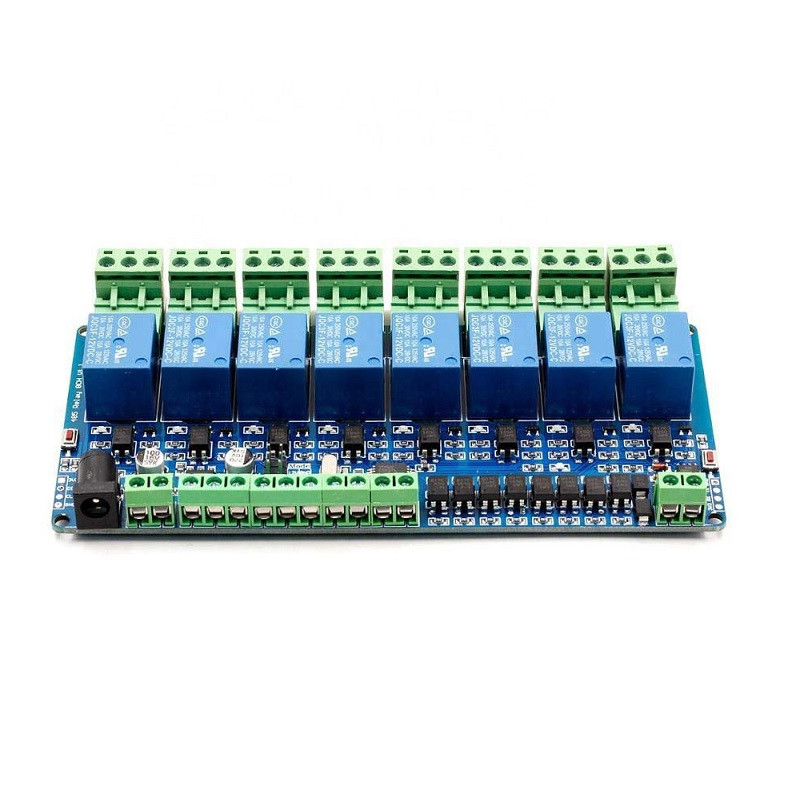

This is a 12V Modbus RTU 8 Channels Relay Module Input Optocoupler Isolation RS485 MCU. It is used to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). 12V 8-Channel Relay interface board and each one needs 50-60mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Application:
- Supports all MCU control.
- The industrial field.
- PLC control.
- Smart home control.
Features:
- .Modbus serial communication
- Relay switching output
- Convenient AT command control
Specification:
- Product Name:8 Bit ModbusRTU Relay Module
- MCU: One STM8S103K
- Working Voltage: DC 12 V
- Work Temperature:-25~85
- Work Humidity:5%~95%RH
- Size:140*80*20mm
Package Includes:
1 x 12V Modbus RTU 8 Channels Relay Module Input Optocoupler Isolation RS485 MCU
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1935.2 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
12V Modbus RTU 8 Channels Relay Module Input Optocoupler Isolation RS485 MCU
- Product Code: EC-7925
- Availability: 24
-
Rs.1825.00
- (Excluding 18% GST)
