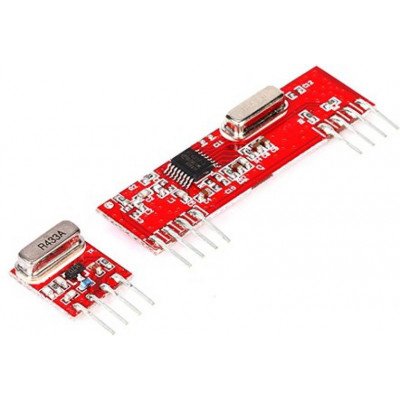

This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.

Specifications of 433MHz RF Transmitter Receiver Wireless Module:-

• Range in open space(Standard Conditions) : 100 Meters

• RX Receiver Frequency : 433 MHz

• RX Typical Sensitivity : 105 Dbm

• RX Supply Current : 3.5 mA

• RX IF Frequency : 1MHz

• RX Operating Voltage : 5V

• TX Frequency Range : 433.92 MHz

• TX Supply Voltage : 3V ~ 6V

• TX Out Put Power : 4 ~ 12 Dbm


Features of 433MHz RF Transmitter Receiver Wireless Module:-

• Low Power Consumption

• Easy For RF based Application

• Complete Radio Transmitter

• Transmit Range Up To 50m

• CMOS / TTL Input

• No Adjustable Components

• Very Stable Operating Frequency

• Low Current Consumption (Typ 11mA)

• Wide Operating Voltage

• ASK Modulation


Applications 433MHz RF Transmitter Receiver Wireless Module:-

• Remote Controls

• Automation System

• Wireless Security System

• Sensor Reporting

• Car Security System

• Remote Keyless Entry
