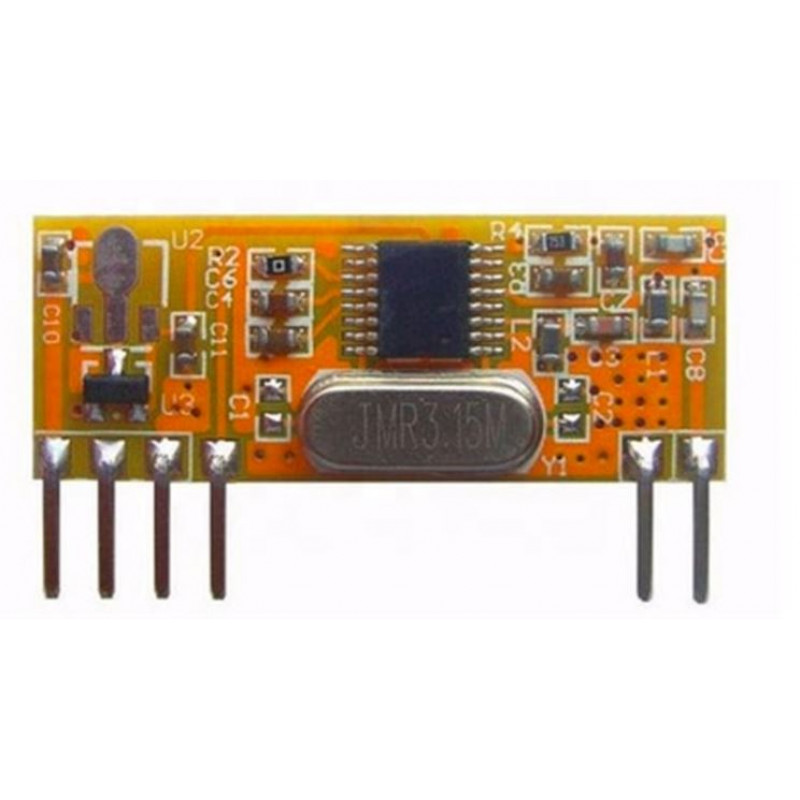

  • RXB7 433Mhz Superheterodyne Wireless Receiver Module

RXB7 433Mhz Super heterodyne Wireless Receiver Module work with our 433MHz transmitters. They can easily fit into a breadboard and work well with microcontrollers to create a very simple wireless data link. Since these are only receivers, they will only work communicating data one-way, you would need two pairs (of different frequencies) to act as a transmitter/receiver pair.


Applications :-

  • Car remote door switch (RKE);
  • Remote control door opener;
  • Wireless security alarm;
  • Remote control curtains;
  • The wireless industrial controller;
  • A wireless data transmission.


Features :-

  • Power Enable mode power consumption can be done lowest 50nA;
  • has an analog RSSI signal strength level output;
  • Good selectivity and spurious radiation suppression, and easy through CE / Fcc international certification;
  • Good local oscillator radiation suppression, multiple receiver modules to work together (ie, more than single income) and will not interfere with each other, used together does not affect the receiving distance.
  • Temperature range: -40-85 ℃ can work even in harsh ambient temperature.


Specifications :-

  • Receiving Sensitivity: 112dBm; (2)
  • Operating Frequency: 433.92 MHz;
  • Power Supply Voltage: 3.6V-5.8V
  • Low Power Supply: 3.3V @ 433.92MHz
  • Power Enable mode power consumption can be done lowest 50nA;
  • Good selectivity and stray radiation suppression ability, easy to pass CE/FCC International certification
  • Good local oscillator radiation suppression capability
  • Temperature range: -40-85℃, it can work normally even in harsh environmental temperature.


Package Includes :-

1 X RXB7 433Mhz Superheterodyne Wireless Receiver Module
