FlexiPot Strip sensors are low-powered force-sensing linear potentiometers with a rectangular shape and 3-pin male connector. They are designed for use with your own electronics.
Features:
- Flexible, ultra-thin, lightweight profile.
- Its low power requirements and linear output make it the ideal position sensor for test and measurement or embedded applications.
Package Includes:
1 x FlexiForce FlexiPot Strip Position Sensor
Specifications :-
| Sensor Thickness | 0.208 mm |
| Shape | Strip |
| Connector | 3-pin Male Square Pin |
| Substrate | Polyester |
| Sensor Length | 91.2 mm |
| Sensor Width | 11.6 mm |
| Length of Rectangle Sensing Area | 63.5 mm |
| Width of Rectangle | 4.3 mm |
| Pin Spacing | 2.54 mm |
| Linearity (Error) | < 2% |
| Repeatability | < 1% of full scale |
| Spatial Resolution | < 2 % of full scale |
| Operating Temperature Standard | -40C 60C |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1709.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

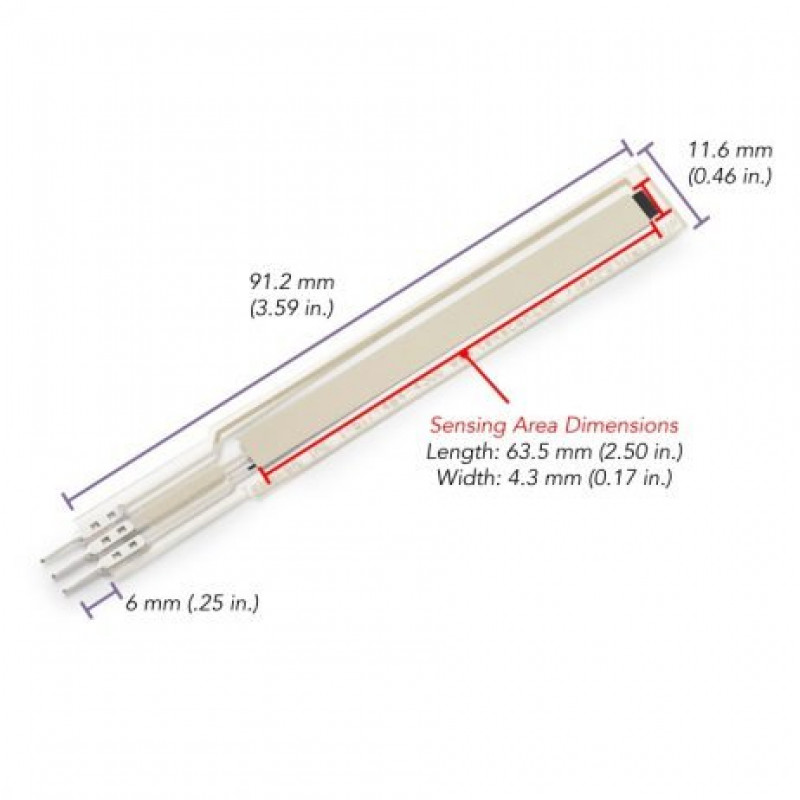

FlexiForce FlexiPot Strip Position Sensor
- Product Code: EC-5354
- Availability: Out Of Stock
-
Rs.2485.00
- (Excluding 18% GST)
