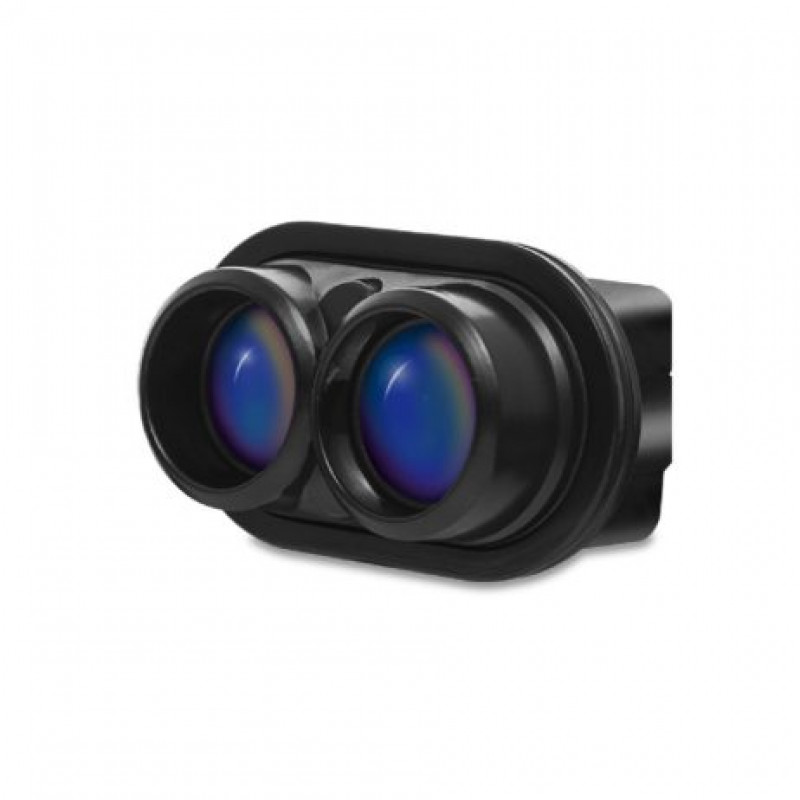

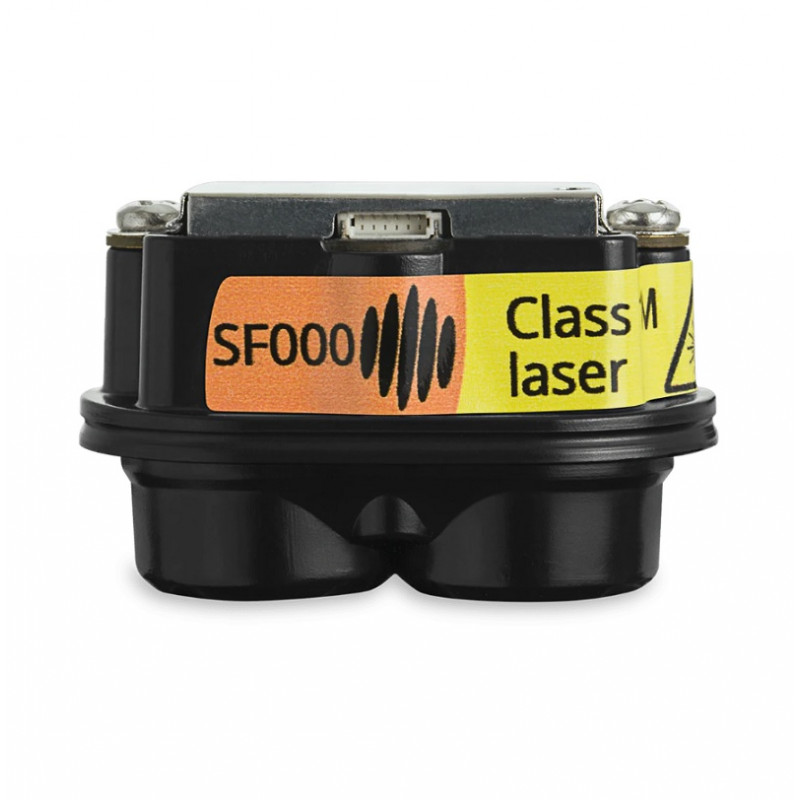

microLiDAR Lightware SF000B (50m) is an advanced sensor designed for precise distance measurement and object detection in a compact form factor. With a maximum range of 50 meters, it utilizes LiDAR technology to emit laser pulses and accurately calculate distances based on the reflected light. The SF000/B offers high-resolution measurements, fast response times, and a wide field of view, making it suitable for a variety of applications including robotics, industrial automation, and smart cities.

The SF000/B is the worldssmallest and lightest 50-meter microLiDAR sensor. Specifically designed for size and weight-constrained applications. Dynamite comes in small packages as proven by the SF000/B an industry favorite!

Applications:

• AGL (Altitude above ground level)
• Position hold
• Terrain following
• Detect and avoid
• IoT sensor
• Assisted take-off and landing

Features:

• Key features: Multiple return signals, signal strength, noise measurement, etc.
  Upgradable through the LightWare Studio application
• Measuring range: 0.2 m to 50 m (80% reflective, large target)

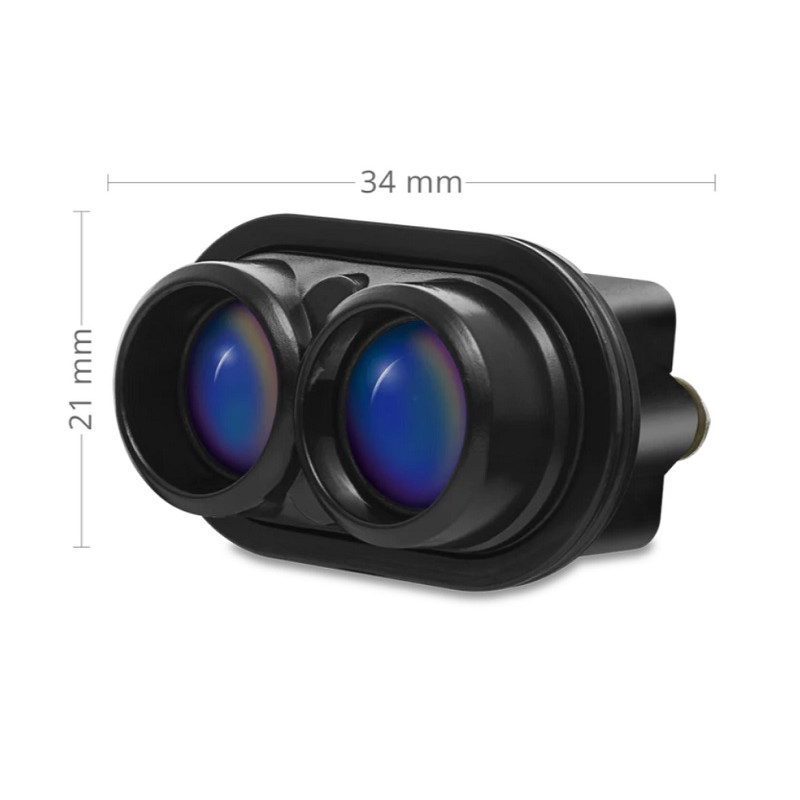

• Size: 22 x 34 x 21 millimeters
• Weight: 8.8 grams
• Measuring speed: 48 to 388 readings per second (configurable)
• Interfaces: Serial and I2C
• Integration: User APIs, LightWare Studio

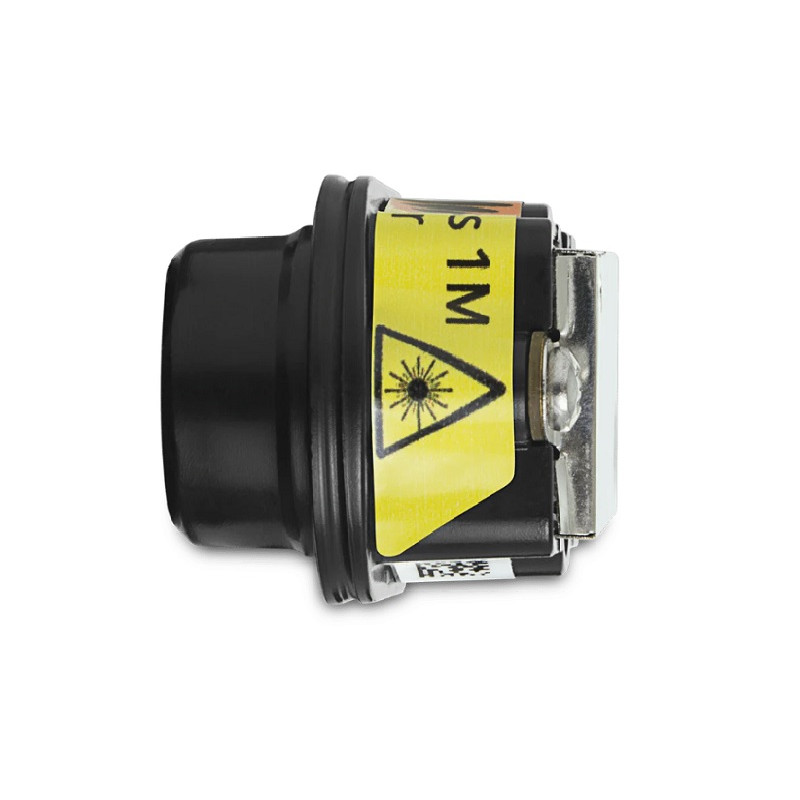

• Safety: Eye-safe laser emission Class 1M
• Environmental: Open frame, no IP rating

Useful Links:

• Product Guide
• 3D CAD files: SF000/B housing assembly

Support software

• LightWare Studio
• SF000/B firmware release notes

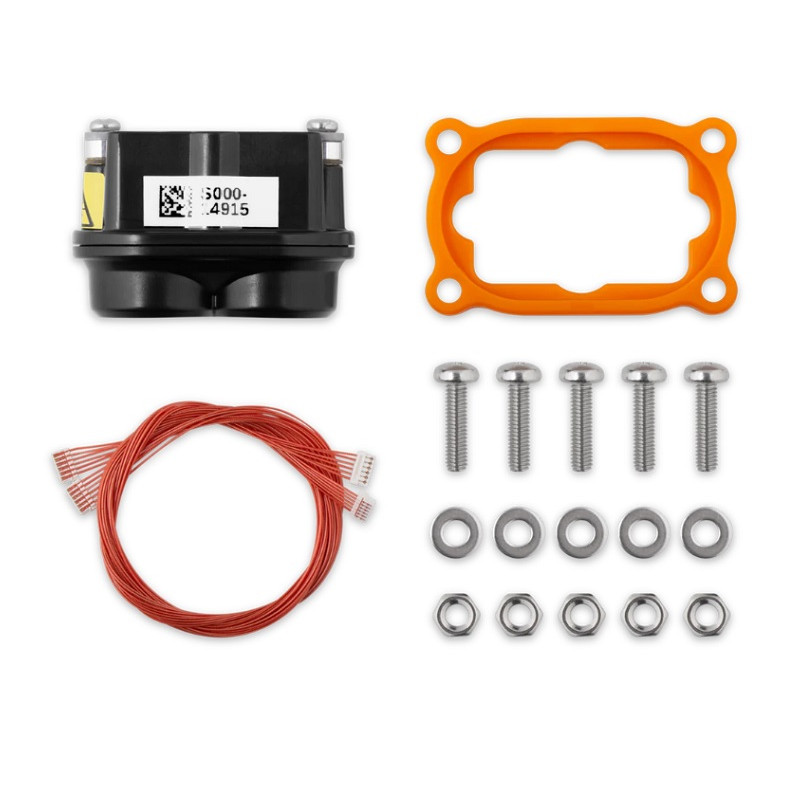

Accessories and options

• SF000/B breakout board
• SF000/B USB connector
• SF000/B mounting bracket
• SF000/B communications cable

Package Includes:

1 x Lightware SF000/B (50m) microLiDAR.
