This capacitive soil moisture sensor V2.0 measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data!
This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter.
This soil moisture sensor is compatible with our 3-pin Gravity interface, we can connect to the Gravity I/O expansion shield.
Software
- Arduino IDE V1.6.5
Features:
- Supports 3-Pin Gravity Sensor interface
- Analog output
Applications:
- Garden plants
- Moisture detection
- Intelligent agriculture
Package Includes:

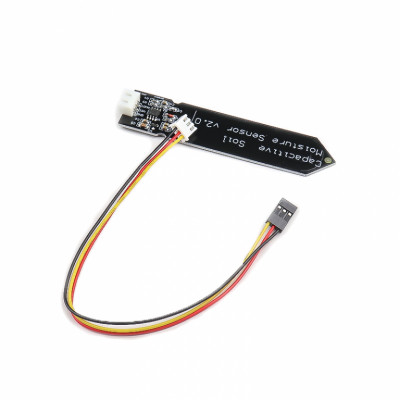

1 x Capacitive Soil Moisture Sensor V2.0
Additional information
| Operating Voltage | 3.3 ~ 5.5 VDC |
| Output Voltage | 0 ~ 3.0VDC |
| Operating Current | 5mA |
| Interface | PH2.54-3P |

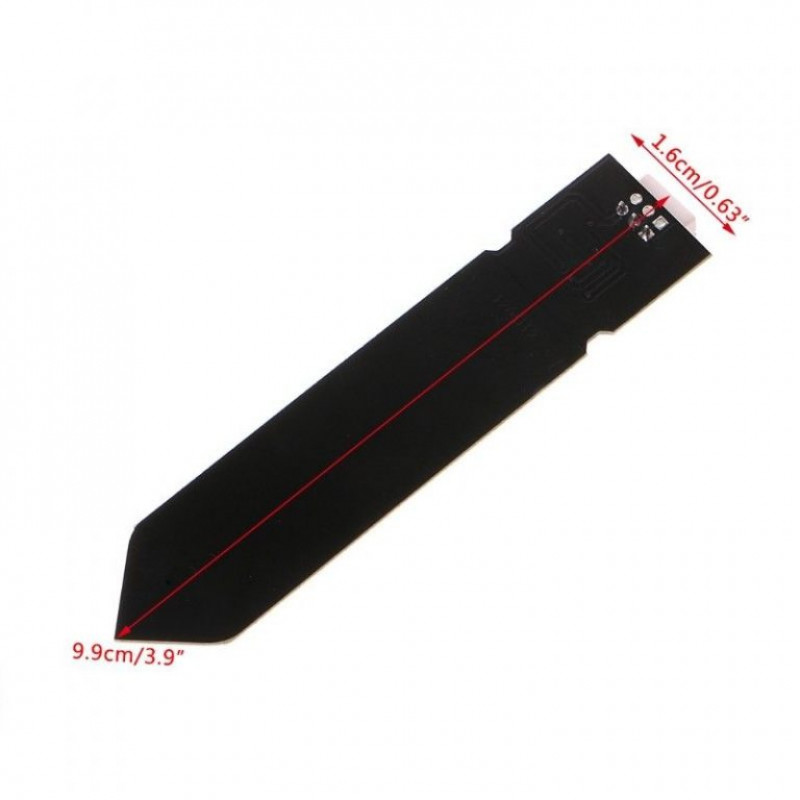

| Dimensions mm(LxWxH) | 98 x 23 x 4 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 71.98 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Capacitive Soil Moisture Sensor V2.0
- Product Code: EC-5092
- Availability: 1293
-
Rs.61.00
- (Excluding 18% GST)
