The MiniSense 100NM is a low-cost cantilever- type vibration sensor offering moderate sensitivity over a useful frequency band up to 200 Hz. Pins are designed for easy installation and are solderable. Horizontal and vertical mounting options are offered. The active sensor area is shielded for improved RFI/EMI rejection. Rugged, flexible PVDF sensing element withstands high shock overload. Sensor has excellent linearity and dynamic
range, and may be used for detecting either continuous vibration or impacts.

Applications:

  1. Low Cost Vibration Sensing
  2. Car Alarms
  3. Body Movement
  4. Medical Applications
  5. Security Systems

Note: For more info refer to datasheet


Features:

  1. High Sensativity
  2. Higher Resonaant Frequency
  3. Solderable
  4. Shielded
  5. Rugged
  6. Withstands High Shock

Packages Includes:

1 x TE CONNECTIVITY Vibration Sensor, MiniSense 100, Cantilever Type, 16 pC/g, No Mass


Attachments :


Download
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

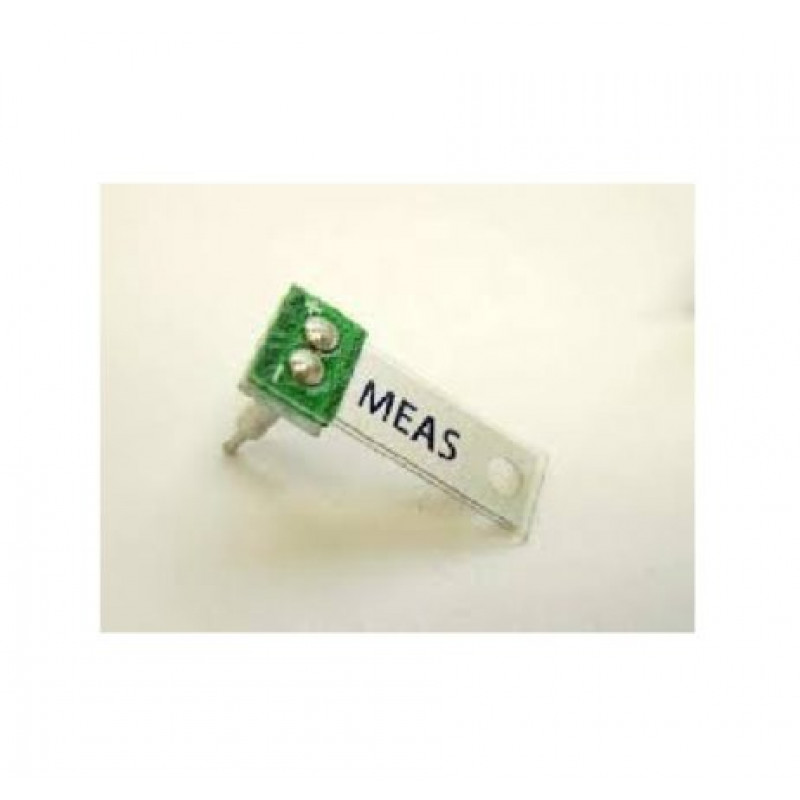

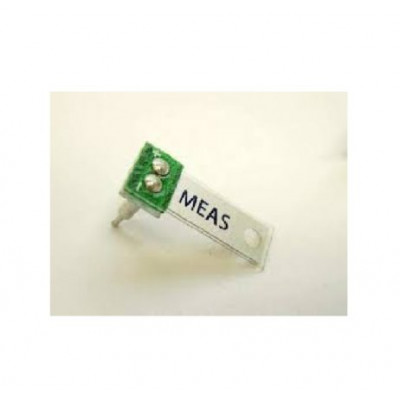

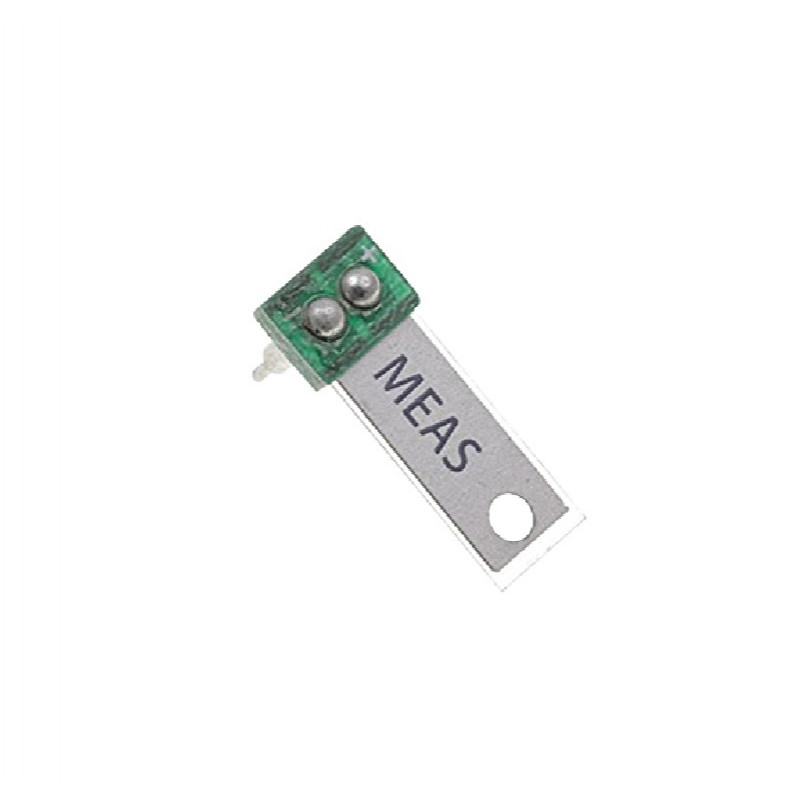

TE CONNECTIVITY Vibration Sensor, MiniSense 100, Cantilever Type, 16 pC/g, No Mass

  • Product Code: EC-23396
  • Availability: 3
  • Rs.518.00
  • (Excluding 18% GST)
