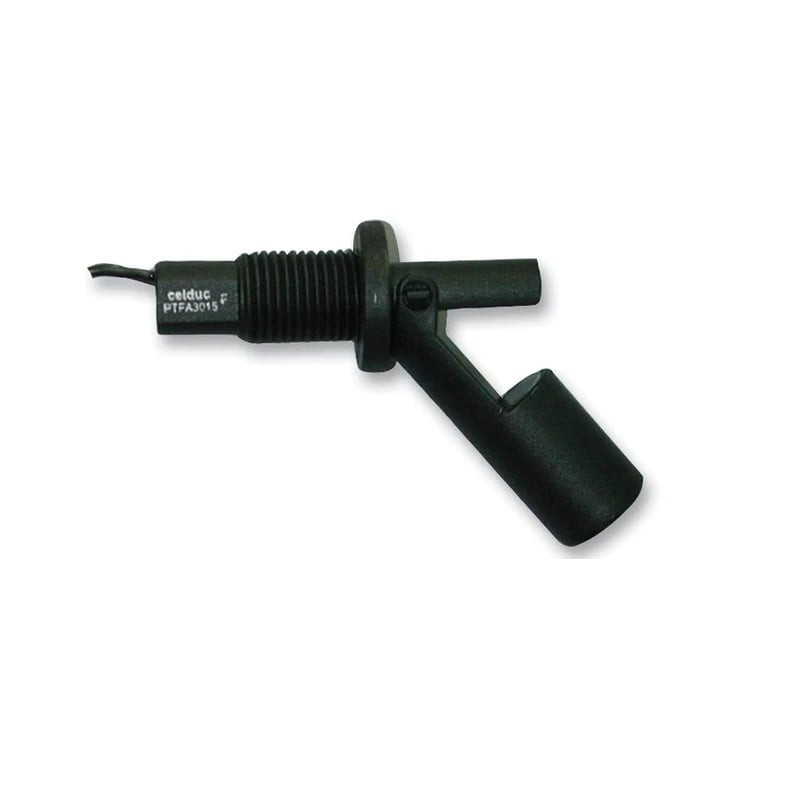

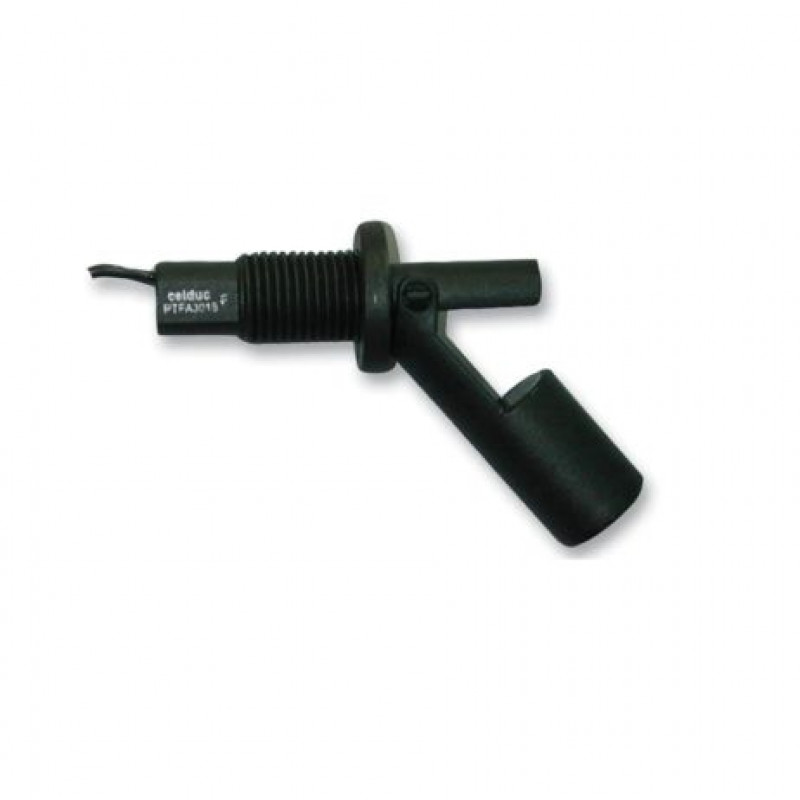

The PTFA0100 is a Horizontal Level Sensor with a reed switch. closed: float end sensor lined up, Open: float end sensor out of line. used in Liquid level detection for drink vending or coffee machines, and washing machines. 30% Glass filled nylon 6 housing .30% Glass filled nylon 6 float .-0 to 70C Operating temperature.
Features:
- Level sensor with reed switch
- Closed float end sensor lined up
- Open float and sensor out of line
- Inverse function by reversing the sensor
Package Includes:
1 x CELDUC PTFA0100 Float Switch, PTFA Series
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
CELDUC PTFA0100Float Switch, PTFA Series, Horizontal, SPST-NO, Nylon 6.6, 10 VA
- Product Code: EC-23463
- Availability: 2
-
Rs.1290.00
- (Excluding 18% GST)
