This barometric pressure temperature sensor is equipped with TDKs newly launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy, and temperature offset coefficient.
The Fermion: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of 1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.
The pressure noise can be as low as 0.4Pa, and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of 0.5 Pa/C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation, and altitude-hold in drones
Features:
- Relative accuracy 1Pa, as small as 8.5cm height measurement difference
- 0.5Pa/ temperature coefficient offset, high stability for long-term use
- 0.4Pa pressure noise, more stable data
APPLICATIONS
- UAV height control
- Indoor navigation and positioning
- Vertical speed measurement
- Enhancing reality and virtual display applications
Package Includes:

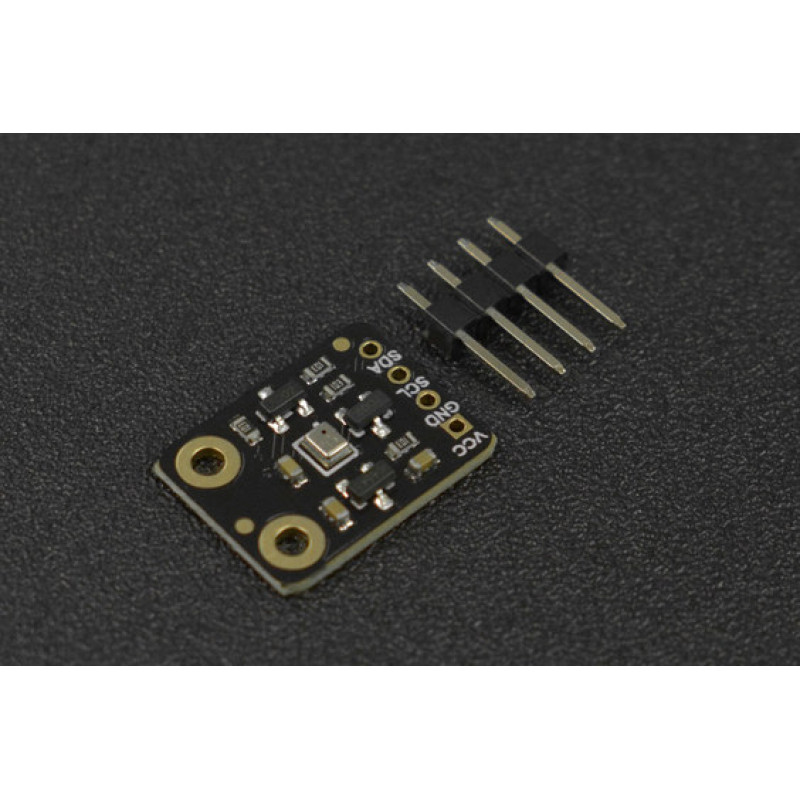

1 x Fermion: ICP-10111 Pressure Sensor
1 x 2.54-4P Black Single-row Pin Connector
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

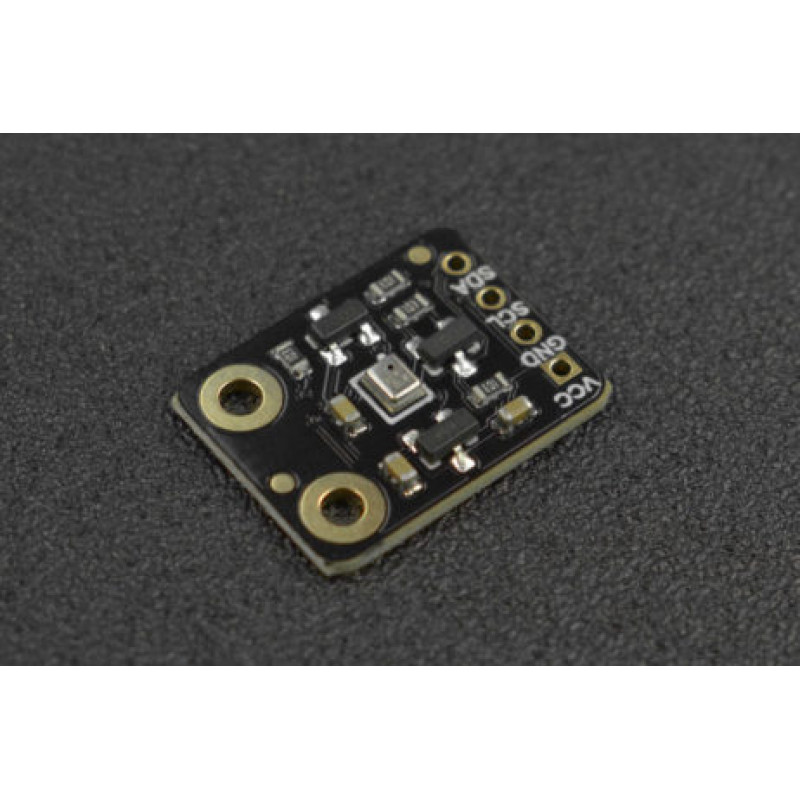

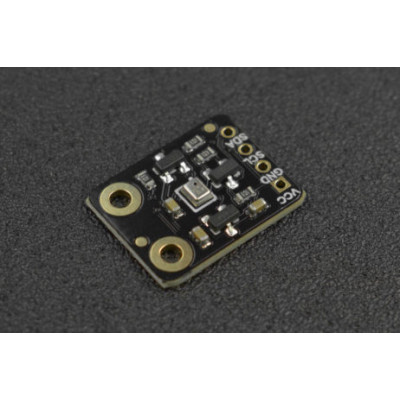

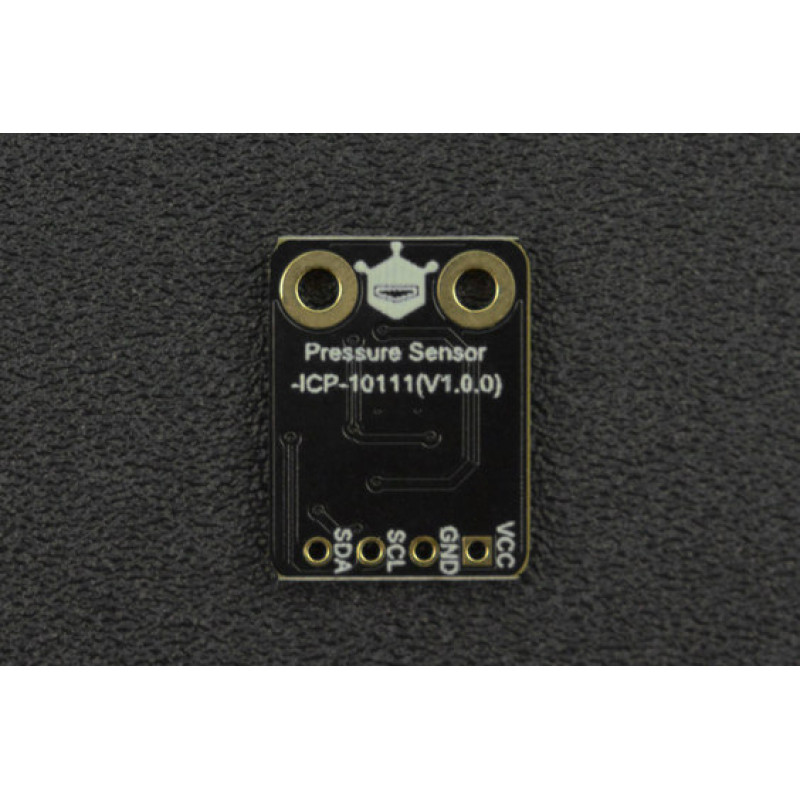

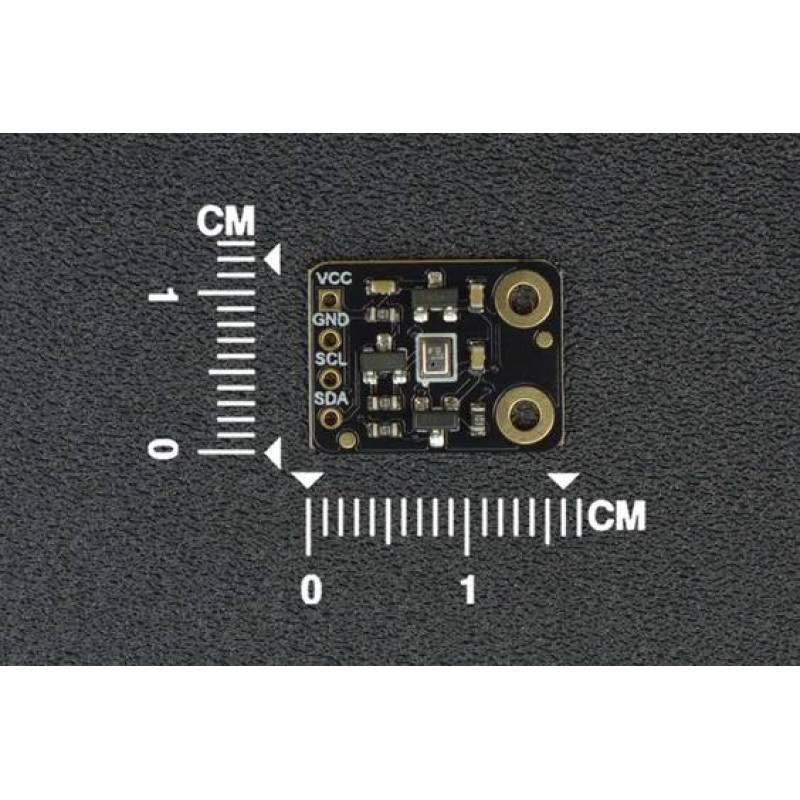

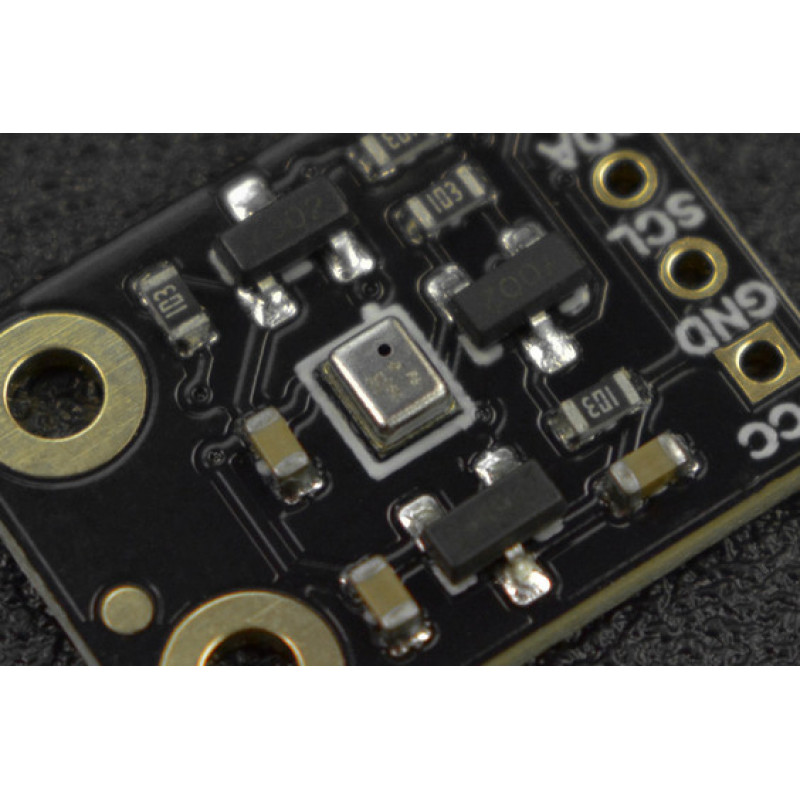

DFRobot Fermion: ICP-10111 Pressure Sensor (Breakout)
- Product Code: EC-24501
- Availability: 1
-
Rs.555.00
- (Excluding 18% GST)
