B2X2 is a quad element type product. With the same horizontal and vertical detection angles. It is widely used in the ceiling light.
B2X2 PIR sensor with the same horizontal and vertical detection angles. It is widely used for ceiling light, intrusion detector. PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use, and dont wear out. They are often referred to as PIR, Passive Infrared, Pyroelectric, or IR motion sensors.
Field of View
Equivalent Circuit
Applications:
- Household or other appliances
- Start air conditioning or turn on the lights.
- Digital photo frame
- Automatic control for indoor, corridor and stairs lights, etc.
- Lighting appliances
Features:
- Quad Elements
- Same horizontal and vertical detection angles
- Slight movement can be detectable
- Low power Consumption
Package Includes:
1 x B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting
Specifications :-
| Window Size | 4*4mm |
| IR Receiving Electrode | 1.1 x 1.1mm 4elements |
| Encapsulation Type | TO-5 |
| Spectral Response | 514 m |
| Transmittance | 75% |
| Output Signal[Vp-p] | 3500mV |
| Sensitivity | 3300V/W |
| Detectivity (D*) | 1.4 108 cmHz1/2/W |
| Noise[Vp-p] | <100mV |
| Output Balance | <10% |
| Offset Voltage | 0.3~1.2V |
| Supply Voltage | 3~15V |
| Operating Temp | -30~70C |
| Storage Temp | -40~80C |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 3 1 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

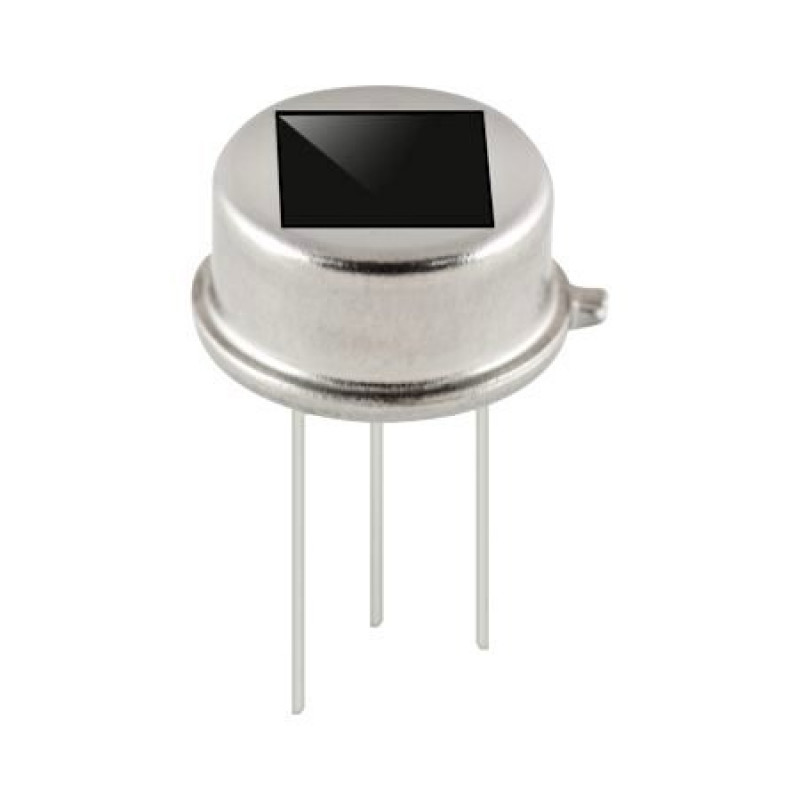

B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting
- Product Code: EC-7541
- Availability: 2
-
Rs.119.00
- (Excluding 18% GST)
