Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognizeand buy an originalTowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name. Robu.in believes in satisfied customers, so whatever the product is, we first import them, then test them for their supplier defined and standard capabilities. Only after doing all the possible quality checks, we make the product available to our customers.

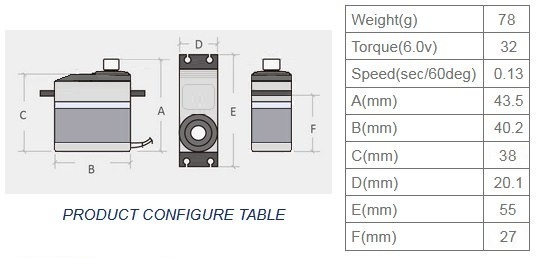

Now, we are presenting TowerPro MG959 Digital Metal Gear Servo Alloy Case. It includes accessories and has dual ball bearings and metal gearing. The Servo case milled from a single block of 6061 T651 aluminum is ready to use for giant airplanes! The product configure table is provided in the attachments. Please refer to it to get more information regd. the dimensions of the product.
Wire Description
RED Positive
Brown Negative
Orange Signal
We are also selling the wide range of Servo Motors with variable specs and quality material, Check them now here. Servo Motors and Accessories
Features:
- Control system: +pulse width control 1520uS neutral
- Motor type: Coreless motor
- Potentiometer drive: Indirect drive
- Bearing type: Dual ball bearing
- Gear type: metal gears
- Connector wire length: 32cm
- Servo arms & screws are included
- CE & RoHS approved
Package Includes:

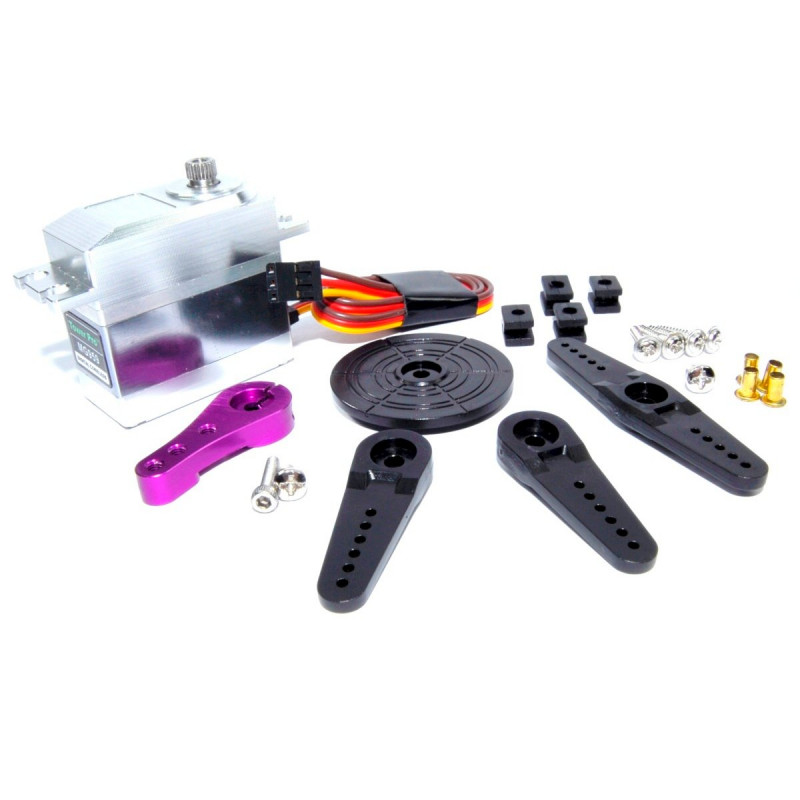

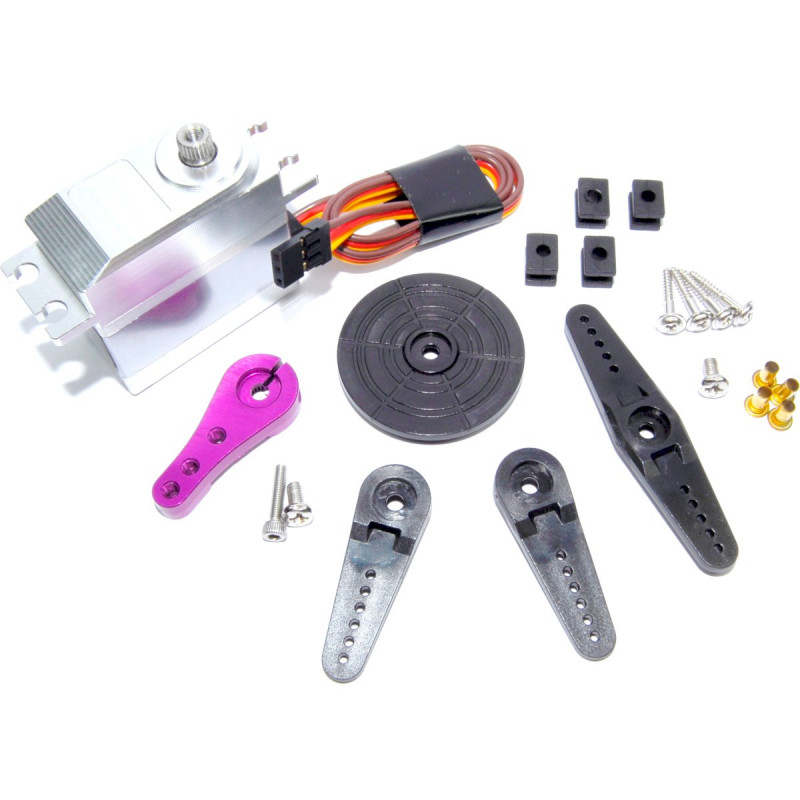

1 x TowerPro MG959 Full CNC Alloy Case High Torque Servo Motor & Accessories Parts(as shown in the image)
| Operating Voltage (VDC) | 4.8 ~ 6 |
| Operating Temperature Range (C) | 0 to +55 |
| Operating speed @4.8V | 0.16sec / 60 degree at no load |
| Operating speed @6.0V | 0.13sec / 60 degree at no load |
| Stall torque @ 4.8V | 28.0kg.cm |
| Stall torque @ 6.0V | 32.0kg.cm |
| Dead band width | 1uS |
| Wire length | 32cm |
| Control system | +Pulse width control 1520usec neutral |
| Required pulse | 3-5v peak to peak square wave |
| Length (mm) | 55 |
| Width (mm) | 20 |
| Height (mm) | 44 |
| Weight (g) | 78 |
| Shipment Weight | 0.078 kg |
| Shipment Dimensions | 9 7 4 cm |
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5898.82 (Inclusive of all Taxes) |
