Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognizeand buy an originalTowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name.
Robu.in believes in satisfied customers, so whatever the product is we first import them then test them for their supplier defined and standard capabilities. Only after doing all the possible quality checks we make the product available to our customers.
We have imported this copy of original TowerPro SG92R Mini Servo from our trusted supplier. Though these are the copy of the original Mini TowerPro servos, they are compatible with all the applications that use the genuine Tower Pro SG92R because of their same size, comparablequality, and optimized performance.
It equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear servo motor adds on unnecessary weight, so wesuggest using this lightweight plastic gear servo motors.
The TowerPro SG92R Mini Servo is 180 rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists.
They are packed within a tight sturdy plastic case which makes themwater and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.
Wire Description
RED Positive
Brown Negative
Orange Signal
We are selling the wide range of Servo Motors with variable specs and quality material, Check them now
Servo Motors and Accessories
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power

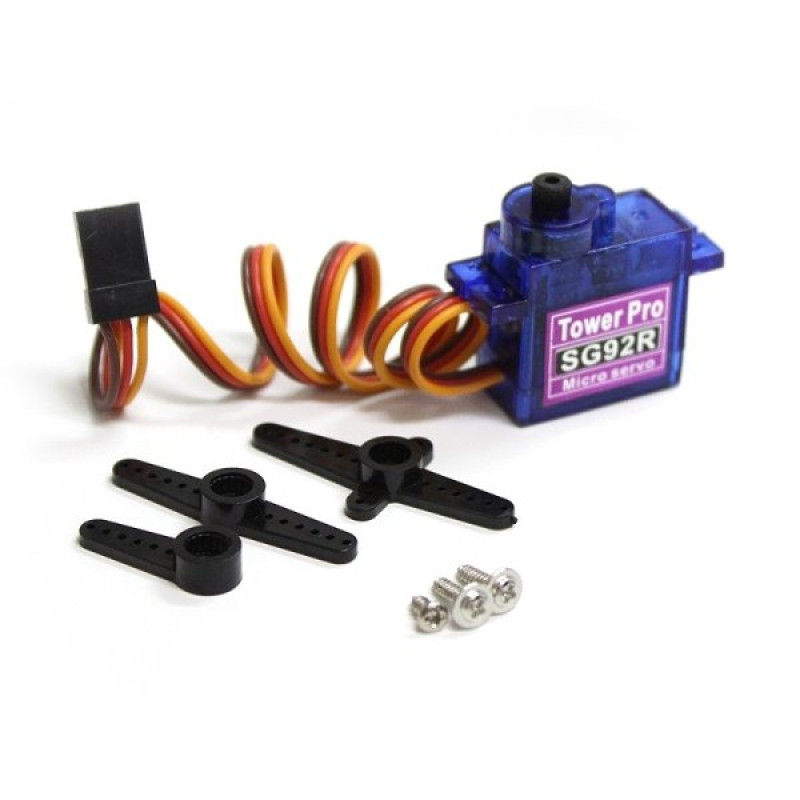

Package Includes :
1 x TowerPro SG92R Servo Motor with Cable
Set of Horns
- One Point
- Two Point
- Four Point
1 x Set of Screws
| Model | SG92R |
| Weight(gm) | 9 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 33515 |
| Stall Torque @ 4.8V (Kg-Cm) | 2.5 |
| Operating Temperature (C) | -30 to 60 |
| Servo plug | 3-wire JR |
| Rotational Degree | 180 |
| Cable Length (cm) | 25 |
| Length (mm) | 22.8 |
| Width (mm) | 12.6 |
| Height (mm) | 34.5 |
| Shipment Weight | 0.014 kg |
| Shipment Dimensions | 6 5 3 cm |
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 145.14 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TowerPro SG92R Mini Servo 2.5kg / 9gm
- Product Code: EC-5552
- Availability: 31
-
Rs.124.00
- (Excluding 18% GST)
