SIM808 Module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications. Featuring an industry standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
General features of SIM808 Module:-
- Quad-band 850/900/1800/1900MHz
- GPRS multi-slot class 12/10
- GPRS mobile station class B
- Dimensions: 24*24*2.6mm
- Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
- Supply voltage range 3.4 ~ 4.4V
- Low power consumption
- Operation temperature:-40℃ ~85℃
Specifications for GPRS Data:-
- GPRS class 12: max. 85.6 kbps (downlink/uplink)
- PBCCH support
- Coding schemes CS 1, 2, 3, 4
- PPP-stack
- USSD
Specifications for SMS via GSM/GPRS:-
- Point to point MO and MT
- SMS cell broadcast
- Text and PDU mode
Interfaces:-
- 68 SMT pads including
- Analog audio interface
- PCM interface(optional)
- SPI interface (optional)
- RTC backup
- Serial interface
- USB interface
- Interface to external SIM 3V/1.8V
- Keypad interface
- GPIO
- ADC
- GSM Antenna pad
- Bluetooth Antenna pad
- GPS Antenna pad
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1056.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

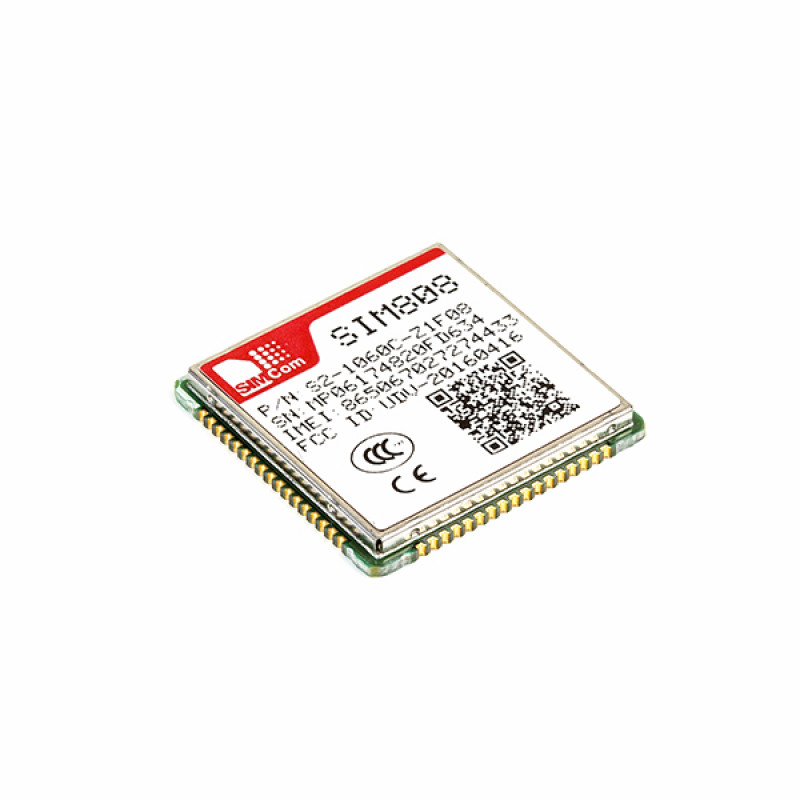

SIM808 Quad-Band GSM GPRS GPS Module
- Product Code: EC-3071
- Availability: Out Of Stock
-
Rs.895.00
- (Excluding 18% GST)
