These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

Main Application of SMB Connectors:

Aerospace and Defense: Test Stands
Medical:Telemetry
Commercial Vehicle:GPS
Telecommunications:Wireless Base Stations, Cellular Mobile System
Data/Communications:Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation

Features:

1. Cable Connector, plug/male, Straight/180, 50, Crimp Type;
2. Snap-on coupling design for fast installation;
3. With broadband performance and low reflection;
4. To reduce your cost by using die casting process in non-critical areas.
5. High Quality with 30 days 100% Money back;
6. From the OEM Original Factory, same quality with much better price

Electrical Characteristics

1. Impedance 50 ohm
2. Frequency Range: 0~4 GHz
3. VSWR: Straight type 1.3max / R/A type 1.5max
4. Dielectric Withstanding Voltage:
   1000 V rmsmin for RG316, RG402
   750 V rms min. for RG178
5. Working Voltage:
   335 V rms max. for RG316, RG402
   250 V rms max. for RG178
6. Center Contact Resistance 6.0 m (Milliohms max.)
7. Outer Contact Resistance 1.5 m (Milliohms max.)
8. Insulation Resistance 1000 m(Megohms min.)

Mechanical Characteristics

1. Coupling:Snap-on
2. Contact Retention: 4lbs min.
3. Mating Durability: 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Environmental Characteristics: -65C ~ +155C
2. Vibration:MIL-STD-202 Meth.204
3. Corrosion Resistance:MIL-STD-202 Meth. 101

Package Includes:

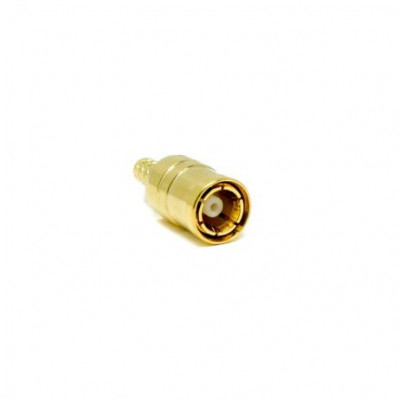

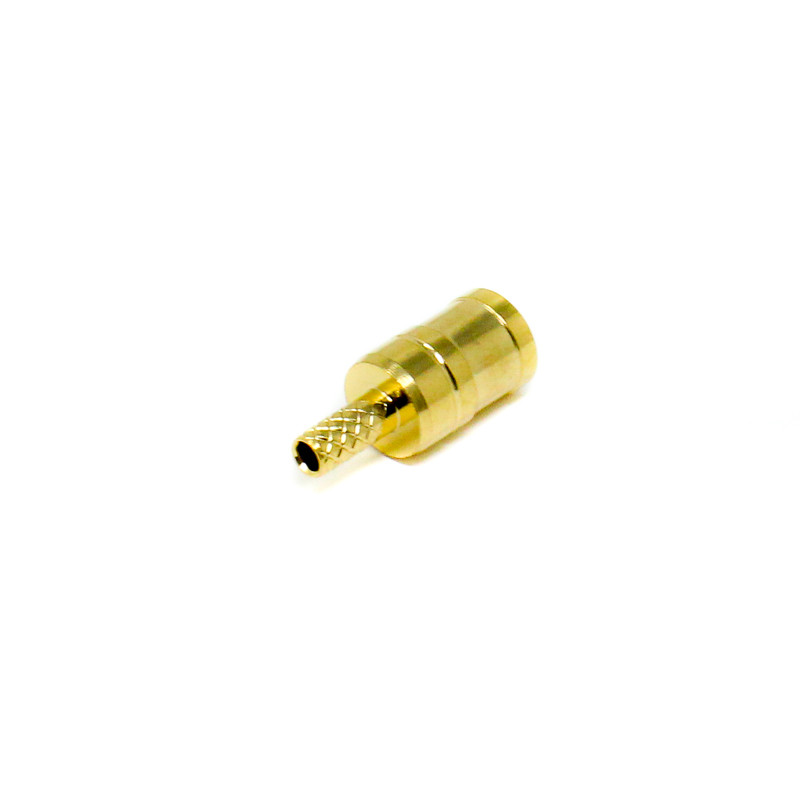

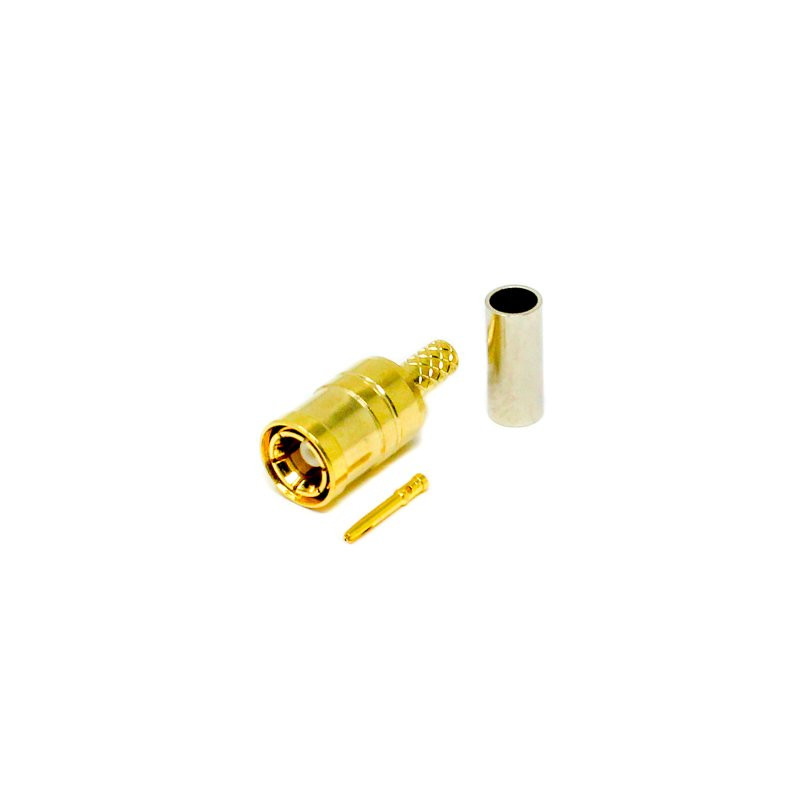

1 x SMB Connector Male Straight Crimp type for Cable
