This P-Channel 1.8V specified MOSFET uses advanced low voltage Power Trench process. It has been optimized for battery power management applications.

Features:-

• -2.4 A, -20 V.

                    RDS(ON) = 52 m @ VGS =   -4.5 V

                    RDS(ON) = 70 m @ VGS =   -2.5 V

                    RDS(ON) = 100 m @ VGS = -1.8 V

• Fast Switching Speed
• High Performance Trench Technology for Extremely Low RDS(ON)
• Super SOT-23 provides Low RDS(ON) and 30% Higher Power Handling Capability than SOT23 in the same Footprint
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications:-

• Battery management
• Load switch
• Battery protection

Specifications:-

• Drain-Source Voltage:  -20V
• Gate-Source Voltage: ±8V
• Drain Current – Continuous: -2.4A
• Drain Current – Pulsed: -10A
• Maximum Power Dissipation: 0.5-0.46W
• Operating and Storage Junction Temperature Range: -55 to +150°C

Package Includes:-

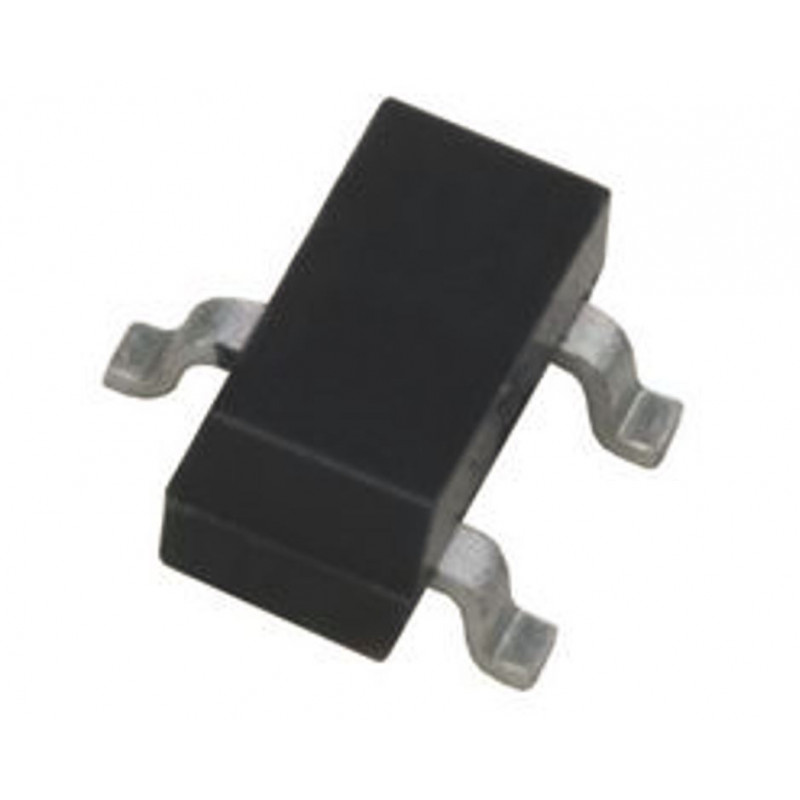

1 x FDN304P MOSFET - (SMD SOT-23 Package) - 20V 2.4A P-Channel MOSFET
