This P−Channel Logic Level MOSFET is produced uses advanced low voltage Power Trench process that has been especially tailored to minimize the on−state resistance and yet maintain low gate charge for superior switching performance. These devices are well suited for portable electronics applications: load switching and power management, battery charging circuits, and dc−dc conversion.
Features:-
- -1.6 A, -20 V
RDS(ON) = 70 mΩ @ VGS = -4.5V
RDS(ON) = 110 mΩ @ VGS = -2.5V
- Low Gate Charge (7.2nC Typical)
- High Performance Trench Technology for Extremely Low RDS(ON)
- High Power Version of Industry Standard SOT−23 Package. Identical Pin−Out to SOT−23 with 30% Higher Power Handling Capability
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications:-
- Battery management
- Load switch
- Battery protection
Specifications:-
- Drain-Source Voltage: -20V
- Gate-Source Voltage: ±8V
- Drain Current – Continuous: -2A
- Drain Current – Pulsed: -10A
- Maximum Power Dissipation: 0.5-0.46W
- Operating and Storage Junction Temperature Range: -55 to +150°C
Package Includes:-
1 x FDN340P MOSFET - (SMD SOT-23 Package) - 20V 2A P-Channel Logic Level MOSFET
Brand/Manufacturer | |
Country Of Origin | |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 16.52 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

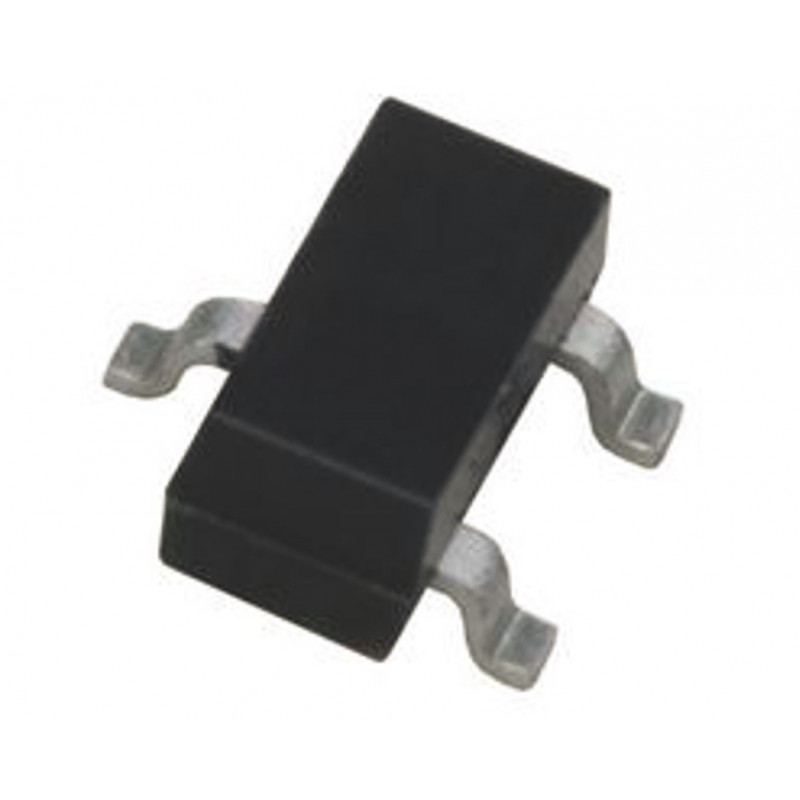

FDN340P MOSFET - (SMD SOT-23 Package) - 20V 2A P-Channel Logic Level MOSFET
- Product Code: EC-11374
- Availability: 1710
-
Rs.14.00
- (Excluding 18% GST)
