5mm Electrical Waterproof Seal Heat Shrink Splice Wire Sleeve White-Blue; is designed for electrical termination of multiple-wire combinations. They provide a reliable alternative to crimping, welding; or conventional twist-on-style closed-end connectors. Their unique combination of wire fixture and controlled soldering technology provides dependable electrical termination.
Steps for use:
1. Select the right size of connectors for the wires.
2. Insert the wires into the solder splice.
3. Heated directly with a hot gun make the solder melt and flow through the stripped wires.
Features :

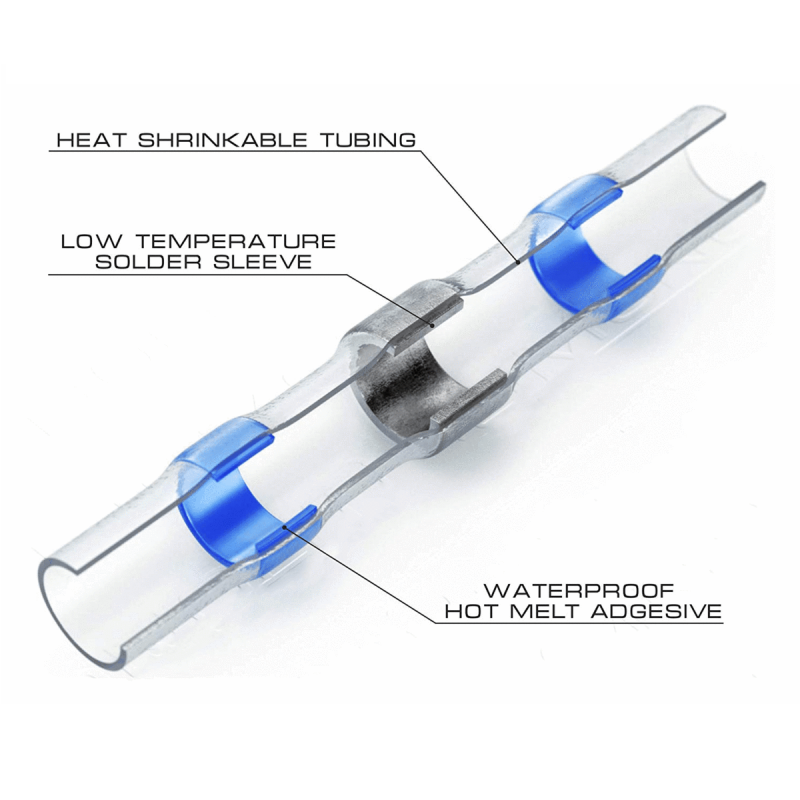

- Waterproof Protection Hot Melt Adhesive & Solder inside the insulated polyolefin tubing create a durable waterproof seal between the wire and the connector; and prevent any corrosion.
- Fast & Easy Operation No need to crimp, just strip your wires, insert them into the solder sleeve and apply heat to finish the connection. Using a heat gun to heat until the heat shrink tube wrap terminal.
- No Slip Wire Contact When heat is applied, tubing reduces in size and melted solder flows through the stripped wires; ensure strong holding and avoids wires slipping out from the terminal.

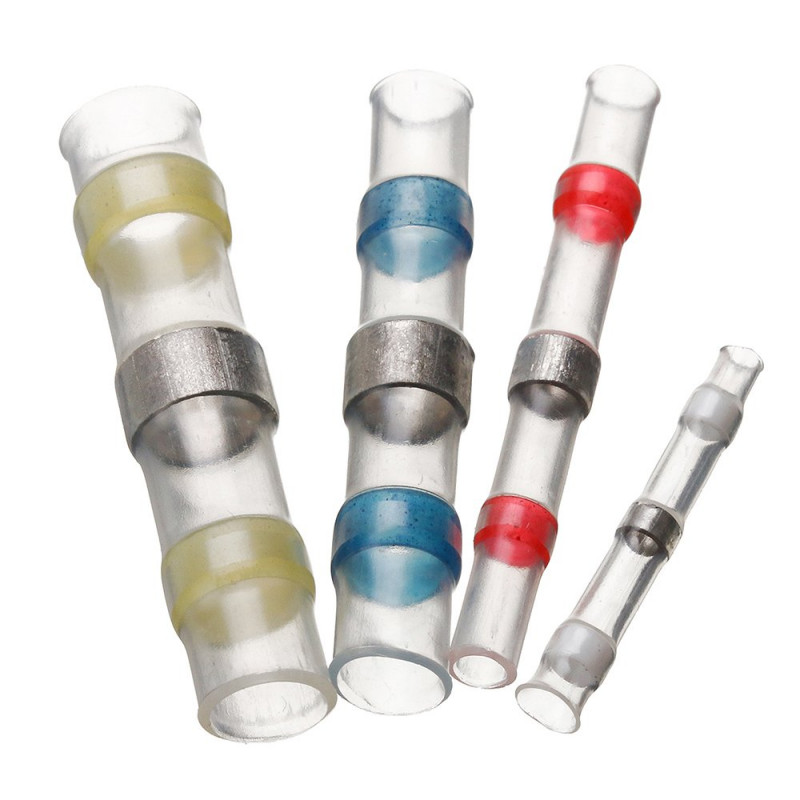

- Easy Identification Different Colours for Different Sizes of the Solder Seal Wire Connectors; easy to identify and pick up for use. The transparent sleeve provides precise inspection when strip and insert wires inside.
- Wide Application This Solder Seal Electrical Heat Shrink Butt Terminals kit is widely used for marine, aviation; and automobile applications, maintenance operation, and other wiring projects.
- Starting temperature of solder melt: 138
- Minimum full recovery temperature: 160
Package Includes :
1 x 5mm Electrical Waterproof Seal Heat Shrink Splice Wire Sleeve White-Blue.
Specifications :-
| Shrink Ratio | 2:1 |
| Tubing | Polyolefin |
| Plating | Tin |
| Allowed Wire Size (AWG) | 16 ~ 14 |
| Terminal Body | Copper |
| Colour | White Blue |
| Operating Temperature (C) | -55 to 125 |
| Shrink Temperature (C) | 80 |

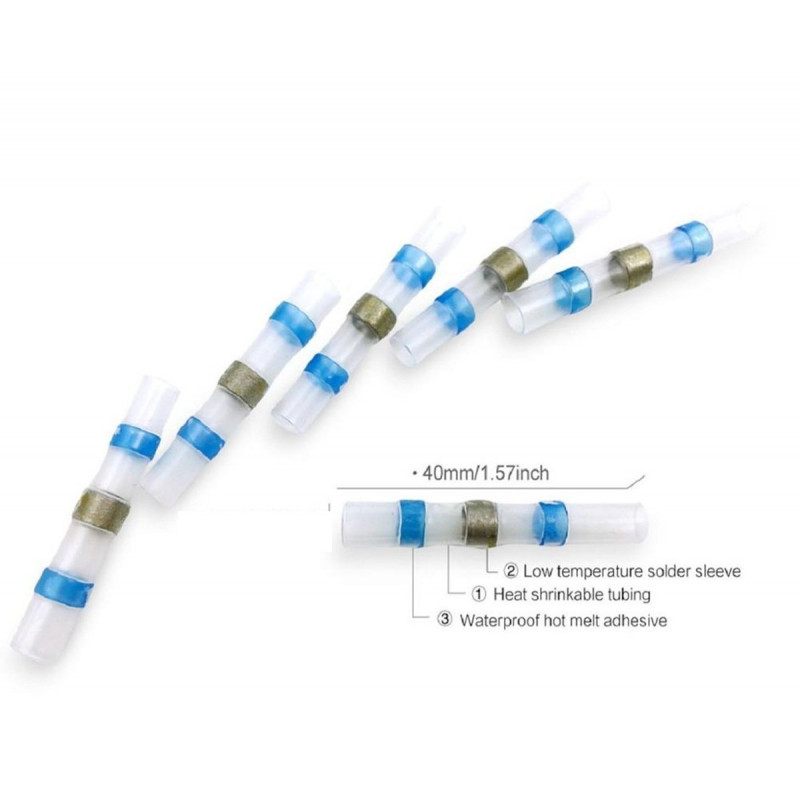

| Dimensions (mm) LxWxH | 5 x 40 (D x L) |
| Weight (gm) | 1 (Each) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 83.78 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
5mm Electrical Waterproof Seal Heat Shrink Splice Wire Sleeve White-Blue
- Product Code: EC-6450
- Availability: 13
-
Rs.71.00
- (Excluding 18% GST)
