LM2577 DC to DC step-up switching regulator, adjustable +1.25 to 30vdc output, up to 3A. The LM2577 is really designed to step up +5 to 10vdc to +12vdc at < 1A. The maximum step-up voltage and current available depends on the input voltage, so if you input +5vdc you could expect to get 12vdc output at < 1A.
Ideal for battery-operated projects requiring a regulated power supply. It has a low output ripple due to extra filtering. It has an adjustable Power Supply Step-up Module, maximum input current 3A, the highest conversion efficiency 92%. It very suitable for DIY a mobile power, Boost charger.
Features:
- Wide Input voltage: 3.5V-35V
- Output Voltage: 4-35V (Adjustable)
- Output current: rated current 3A MAX ( Heat-sink Needed)
- Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
- Switching Frequency: 50KHz
- Rectifier: Non-Synchronous Rectification
- Short circuit protection: current limiting, since the recovery
- High-quality PCB FR4 Grade with FPT Certified
Package Includes:
1 x LM2577 DC-DC Step-Up Power Converter Module
Specifications:
| Wide Input voltage | 3.5V-35V |
| Output Voltage | 4-35V |
| Output current | Rated current 3A MAX |
| Conversion efficiency | Up to 92% |
| Switching Frequency | 50KHz |
| Operating temperature | (°C)-40 to +85 C |
| Load regulation ± | 0.5% |
| Voltage regulation | ±0.5% |
| Length(mm) | 52 |
| Width(mm) | 22 |
| Height(mm) | 20 |
| Weight(g) | 13 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 218.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

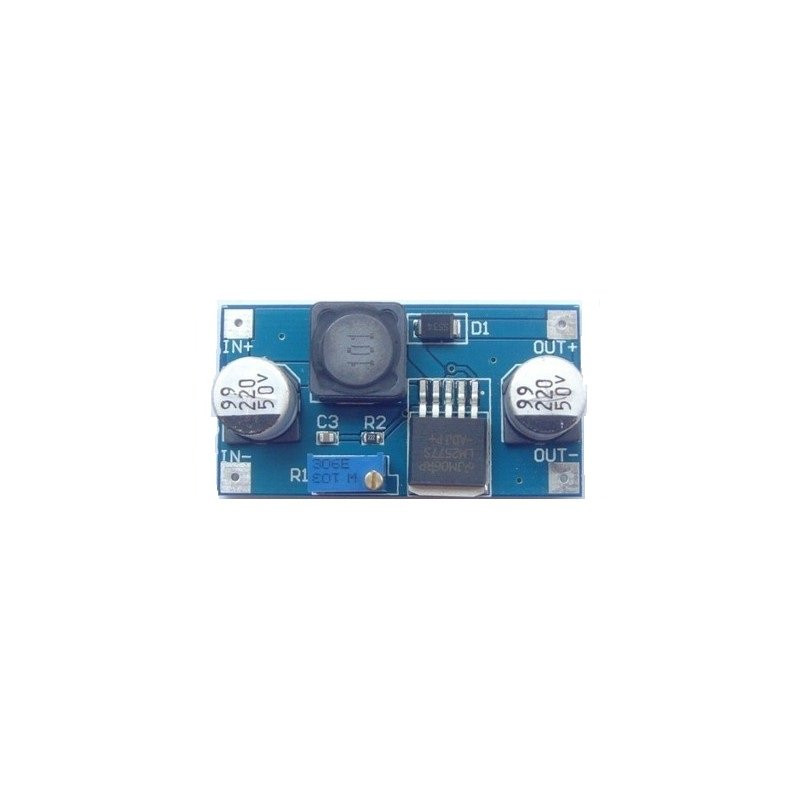

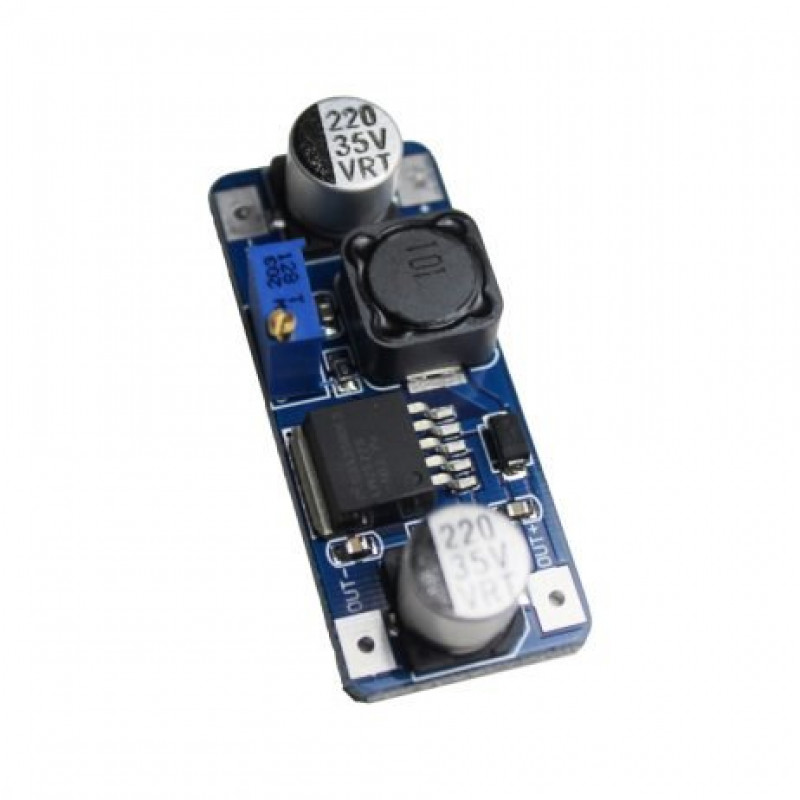

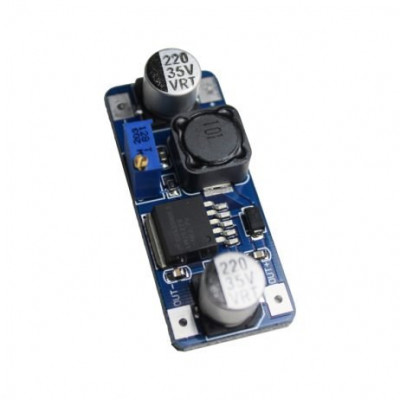

LM2577 DC-DC Step-Up Power Converter Module
- Product Code: EC-6684
- Availability: 31
-
Rs.185.00
- (Excluding 18% GST)
