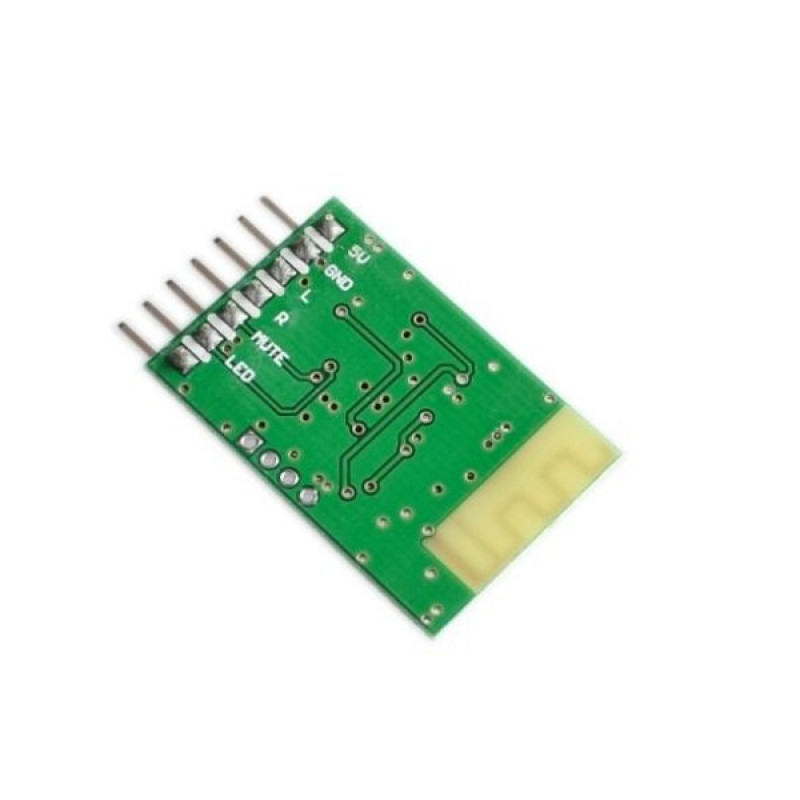

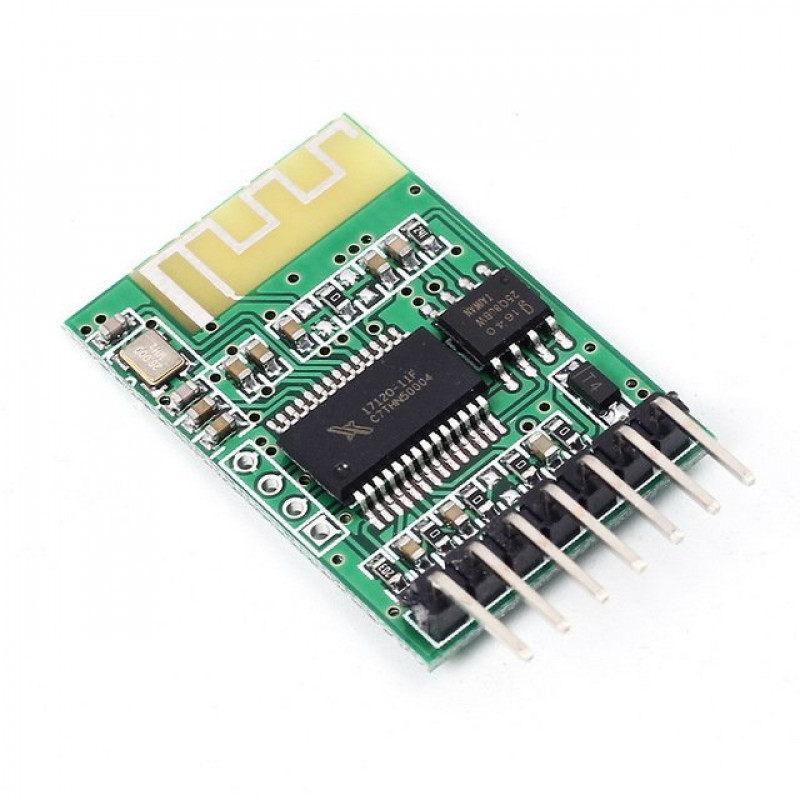

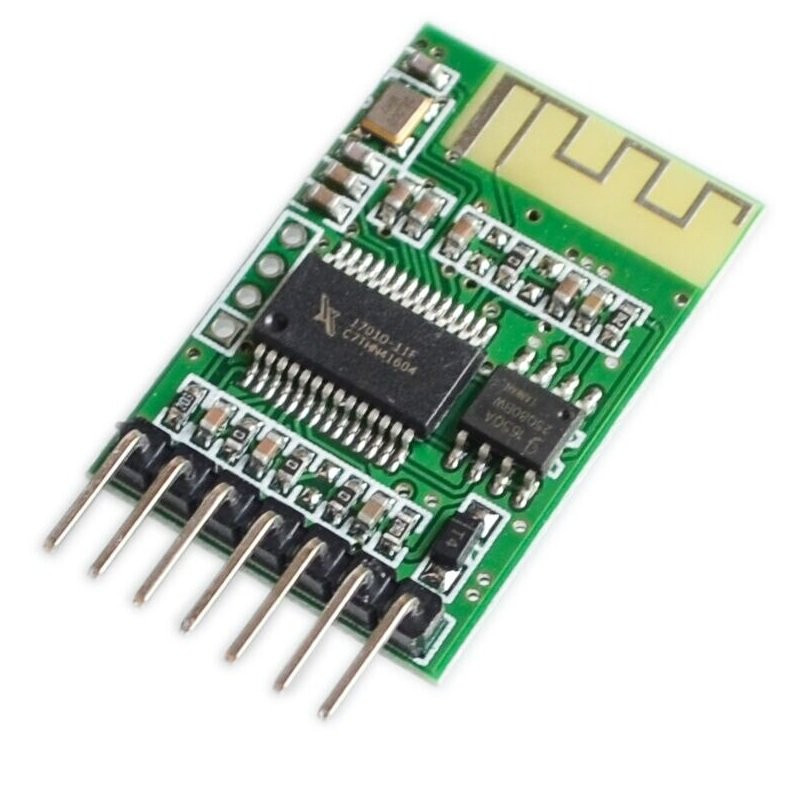

Stereo Wireless Speaker Bluetooth 4.0 Audio Receiver Module For DIY Modified Speaker has a built-in Bluetooth module. The antenna structure is simple. The power supply voltage is 3.7 ~ 5V; active speakers increase Bluetooth connection function. The 7PIN output interface is spacing 2.54 through a hole;
The LED state port is connected with a 100-ohm resistor in series; LED indicates the ground connection, the Bluetooth is not connected and the flash is fast. After the Bluetooth connection is successful, it is slow flashing.

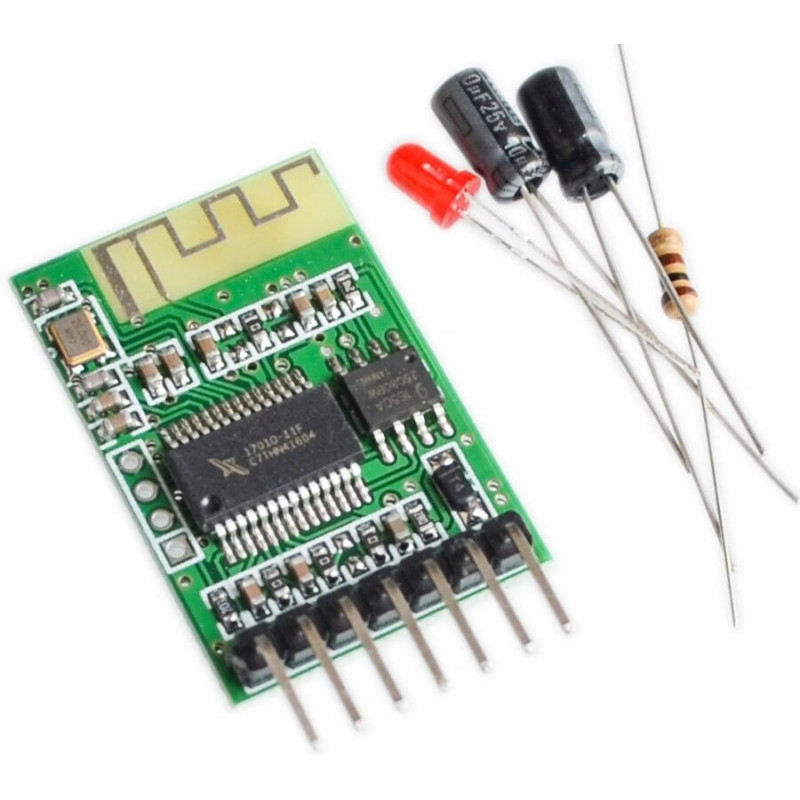

Package Includes:
1 x Stereo Wireless Speaker Bluetooth Module.
1 x LED.
2 x Capacitors
1 x Resistor.
Specifications:
| Input Voltage (V) | 5 |
| Bluetooth version | 4.0 |
| Dimensions(mm) | 30 x 20 x 3 |
| Weight (gm) | 2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 258.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Stereo Wireless Speaker Bluetooth 4.0 Audio Receiver Module For DIY Modified Speaker
- Product Code: EC-6478
- Availability: 9
-
Rs.207.00
- (Excluding 18% GST)
