The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the ASTM32 microcontroller, choosing from the various combinations of performance, power consumption, and features. The ST Zio connector, which is an extension ofArduino Uno V3, provides access to more peripherals and ST morpho headers provide an easy means of expanding the functionality of the nuclei open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe. This board integrates the ST-LINK/V2-1 debugger/programmer and comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as direct access to the ARM mbed online resources at http://mbed.org.
Note: For more technical details go through the datasheet in the attachment section
Features:
- STM32 microcontroller in LQFP144 package
- ST Zio connector including: support for Arduino Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
- ST morpho extension pin header footprints for full access to all STM32 I/Os
- ARM mbed Enabled (see http://mbed.org)
- On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
- Selection-mode switch to using the kit as a standalone ST-LINK/V2-1
- USB re-enumeration capability. Three different interfaces are supported on USB: virtual COM port, mass storage, debug port
- 5 V from ST-LINK/V2-1 USB VBUS
- External power sources: 3.3 V and 7 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
- USB OTG or full-speed device with Micro-AB connector (depending on STM32 support)
- IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support)
- Three user LEDs
- Two push-buttons: USER and RESET
- 32.768 KHz crystal oscillator
- Comprehensive free software HAL library including a variety of software examples
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs, ARM mbed
Package Includes:
1 x STMICROELECTRONICS Development Board, STM32F303ZE MCU, On-Board Debugger, Arduino, ST Zio and Morpho Compatible
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

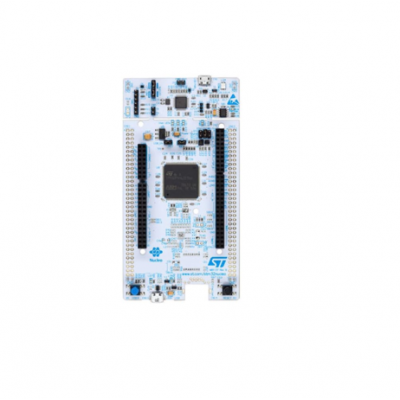

STMICROELECTRONICS Development Board, STM32F303ZE MCU, On-Board Debugger, Arduino, ST Zio and Morpho Compatible
- Product Code: EC-21973
- Availability: 5
-
Rs.1979.00
- (Excluding 18% GST)
