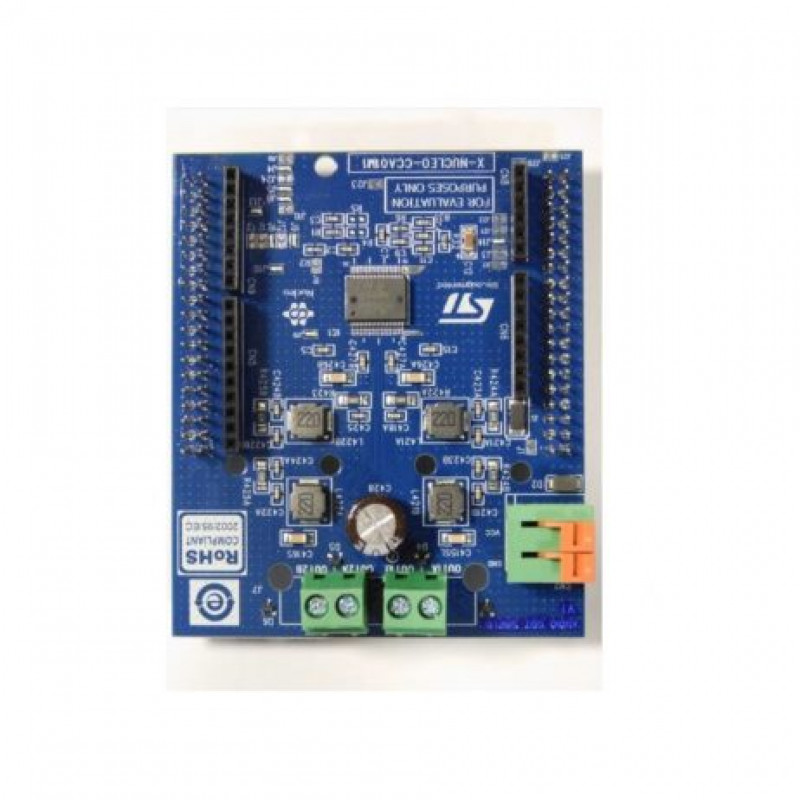

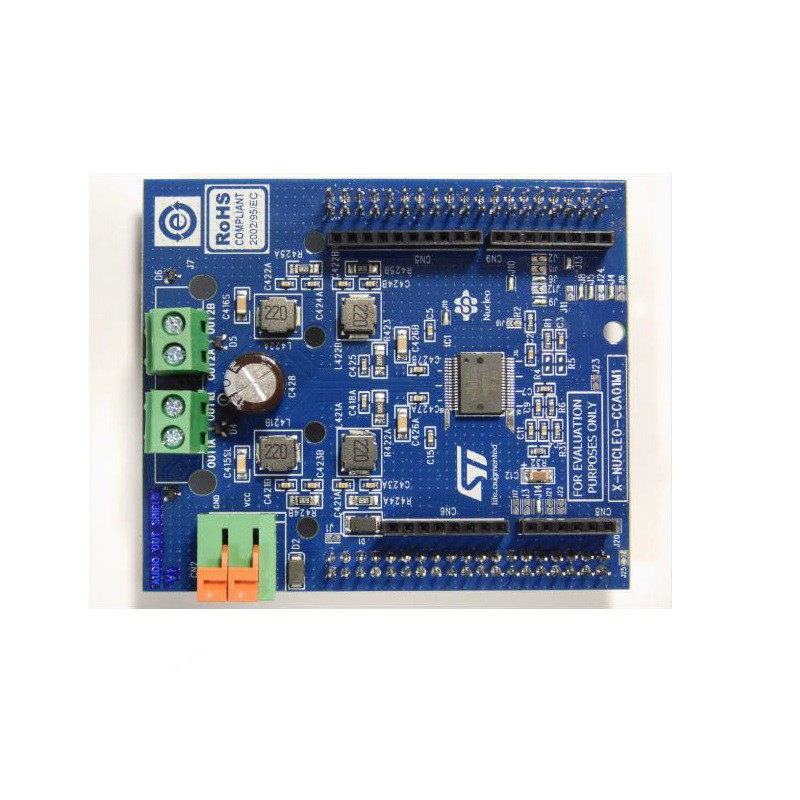

The X-NUCLEO-CCA01M1 is an expansion board based on the STA350BW Sound Terminal 2.1-channel high-efficiency digital audio output system. It can be plugged on top of an STM32 Nucleo board and is compatible with the ST morpho connector layout. It enables the output of digital audio streams to a speakers pairs connected directly to the board and allows the evaluation of the STMicroelectronics STA350BW digital audio output component. Up to two X-NUCLEO-CCA01M1 expansion boards can be plugged on top of the same STM32 Nucleo host in order to build a four-channel digital audio output system.
Note: For more Technical Details go through Datasheet in the attachment section.
Features:
- 2 channels of ternary PWM 2 x 50W @ 25V 6
- FFX 100 dB SNR and dynamic range
- IC control with the selectable device address
- Digital gain +48 dB -80 dB with 0.125 dB/step
- Two independent DRCs configurable as a dual-band anti-clipper (B2DRC) or independent
Package Includes:
1 x STMICROELECTRONICS Expansion Board, 2.1-Channel Audio System, 2x50W, STA350BW, For STM32 Nucelo, Arduino Compatible
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Expansion Board, 2.1-Channel Audio System, 2x50W, STA350BW, For STM32 Nucelo, Arduino Compatible
- Product Code: EC-21982
- Availability: 1
-
Rs.3387.00
- (Excluding 18% GST)
