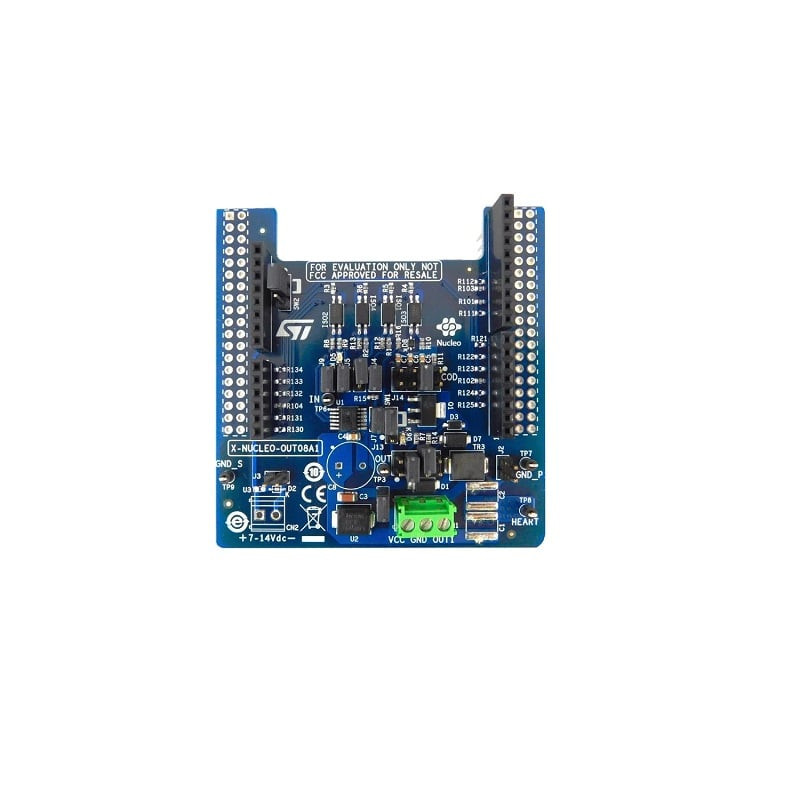

Industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible evaluation and development environment for 2A (typ) digital output modules, featuring the safe driving and smart diagnostic capabilities of the IPS160HF single high-side switch. The X-NUCLEO-OUT08A1 interfaces with the microcontroller on the STM32 Nucleo via 3KV optocouplers driven by GPIO pins and Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors. The expansion board should be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board and can also be stacked with another XNUCLEO-OUT08A1 or X-NUCLEO-OUT10A1. Two X-NUCLEO-OUT08A1 expansion boards allows you to evaluate a dual channel digital output module with 2A (typ.) capability each, or a 2A (typ.) single channel safety digital output module. In the second scenario, the first shield output is connected to the supply of the second one.

Note: For more technical details go through Datasheet in the attachment section

Features & Specifications:

1. Based on IPS160HF single high-side switch, which features:
   Operation up to 60 V/2.4 A
   Low power dissipation (RON(MAX) = 120 m)
   Fast decay for inductive loads
   Open load detection and diagnostics
   Overload and overheating protections with thermal shut-down and cut-off
   PowerSSO-12L package
2. Application board operating range: 12 to 33 V/0 to 2.4 A
3. Extended voltage operating range (J1 open) up to 60 V
4. Status and diagnostic LEDs
5. 3 kV galvanic isolation
6. Supply rail reverse polarity protection
7. Ready for Safety Digital Output Architecture
8. EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
9. Wide application development potential in STM32 Nucleo development
   environment
10. Equipped with Arduino UNO R3 connectors

Package Includes:

1 x STMICROELECTRONICS Expansion Board, IPS160HF, STM32 Nucleo Development Board
