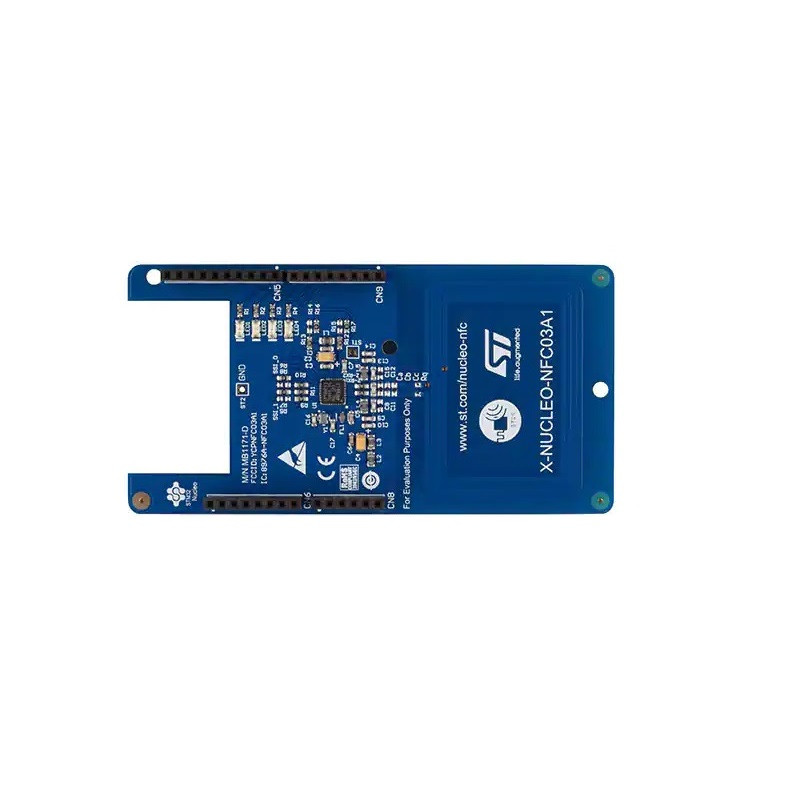

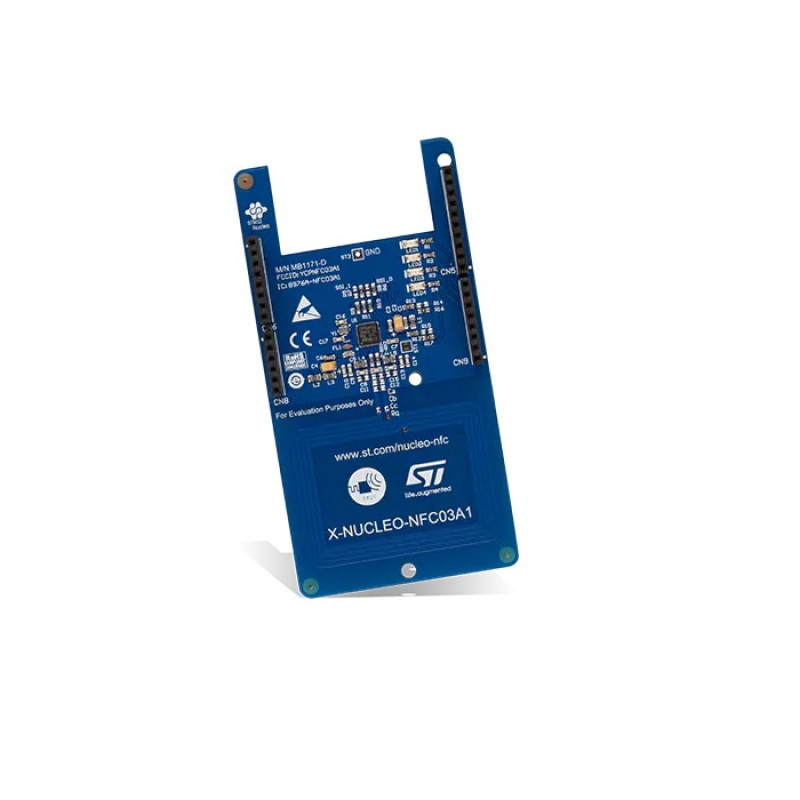

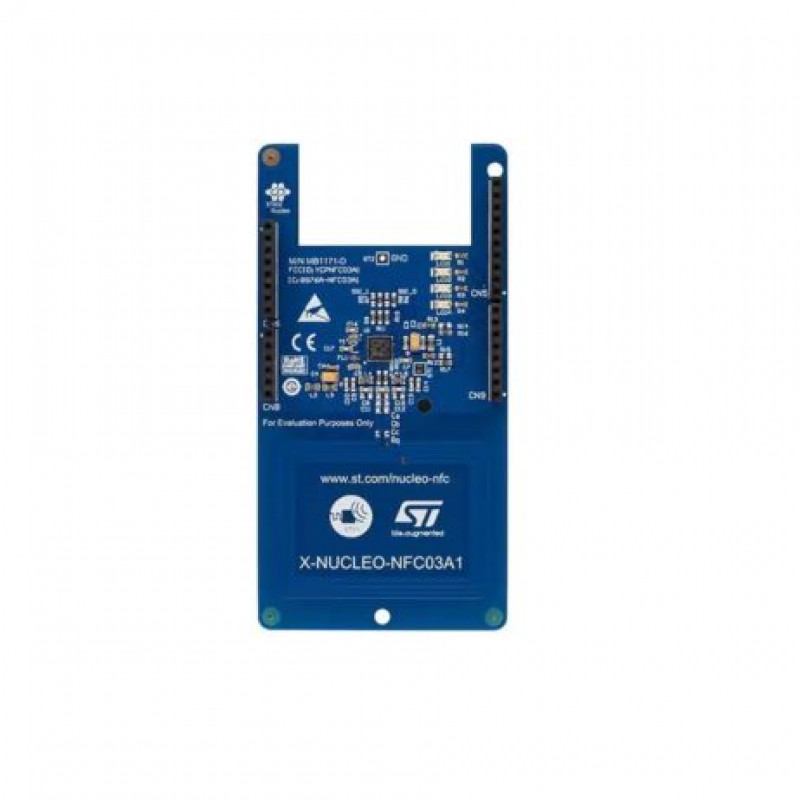

The X-NUCLEO-NFC03A1 (see Figure 1) is an NFC card reader evaluation board based on CR95HF-VMD5T to enable expansion of the STM32 Nucleo boards. The CR95HF manages frame coding and decoding in Reader mode for standard applications, such as NFC, proximity, and vicinity standards. The CR95HF embeds an analog front end to provide the 13.56 MHz air interface. The CR95HF supports ISO/IEC 14443 Type A and B, ISO/IEC 15693 (single or double subcarrier), and ISO/IEC 18092 communication protocols, besides being MIFARE Classic compatible(a). It also supports the detection, reading, and writing of NFC Forum Type 1, 2, 3, and 4 tags.
Note: For more technical details go through the datasheet in the attachment section
Features:
- NFC (Near Field Communication) card reader evaluation board based on CR95HF, designed for expansion of STM32 Nucleo boards
- Reader/Writer modes supported
- 47 mm x 34 mm, four turns, 13.56 MHz
inductive antenna etched on PCB and associated tuning circuit
RF communication
ISO/IEC 14443 (A and B)
ISO/IEC 15693
ISO/IEC 18092
MIFARE Classic compatible - Equipped with Arduino UNO R3 connector
- Four general-purpose LEDs
- Scalable solution, capable of cascading
multiple boards for larger systems
Package Includes:
1 x STMicroelectronics Expansion Board, NFC Card Reader, Read/Write, CR95HF, For STM32 Nucelo, Arduino Compatible
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Expansion Board, NFC Card Reader, Read/Write, CR95HF, For STM32 Nucelo, Arduino Compatible
- Product Code: EC-22024
- Availability: 1
-
Rs.1627.00
- (Excluding 18% GST)
