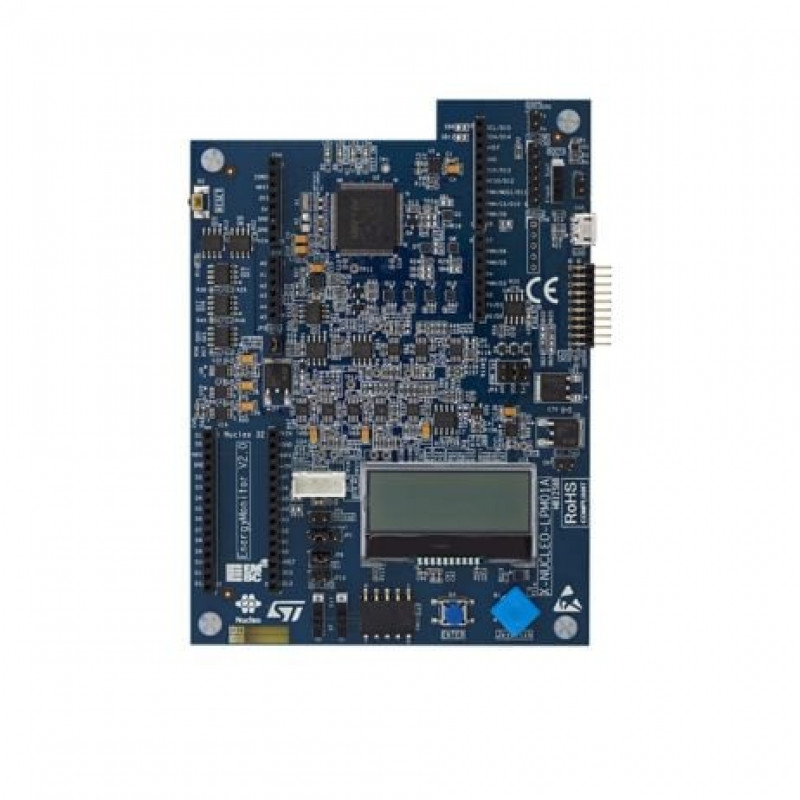

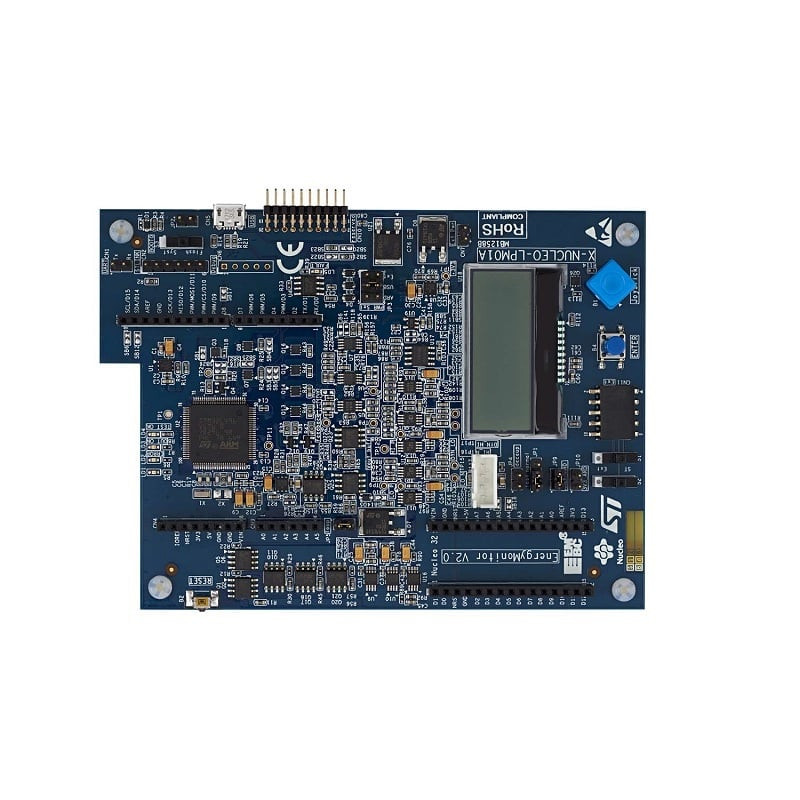

The X-NUCLEO-LPM01A is a 1.8 V to 3.3 programmable power supply source with Picture is not contractual. advanced power consumption measurement capability. It performs consumption averaging (static measurement up to 200 mA) as well as real-time analysis (dynamic measurement up to 50 mA with 100 kHz bandwidth). The X-NUCLEO-LPM01A operates either in
standalone mode (using its LCD, joystick, and button to display static measurements), or in controlled mode connected to the host PC via USB(using the STM32CubeMonitor-Power software tool with its comprehensive graphical user interface).
Note: For more technical details go through Datasheet in the attachment section
Features:
- STM32L496VGT6 microcontroller featuring Arm Cortex-M4 core at 80 MHz / 100 DMIPS and three 12-bit ADC at 5 Msps
- Programmable voltage source from 1.8 V to 3.3 V
- Static current measurement from 1 nA to 200 mA
- Dynamic measurements:100 kHz bandwidth, 3.2 Msps sampling
Package Includes:
1 x STMicroelectronics Expansion Board, STM32L496VGT6 MCU, Power Consumption Measurement, For STM32 Nucleo
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Expansion Board, STM32L496VGT6 MCU, Power Consumption Measurement, For STM32 Nucleo
- Product Code: EC-22021
- Availability: 1
-
Rs.6951.00
- (Excluding 18% GST)
