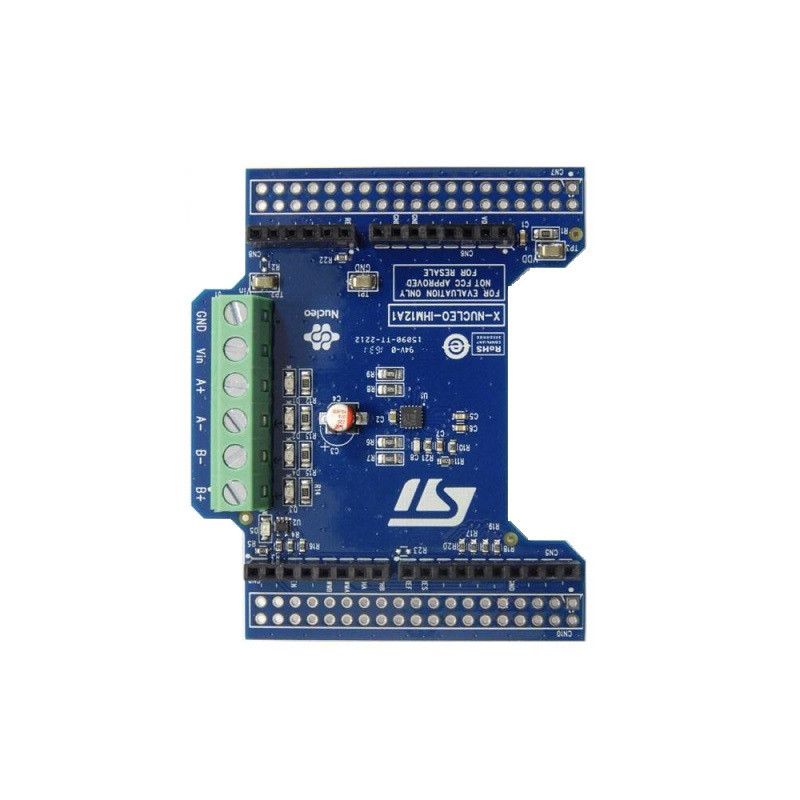

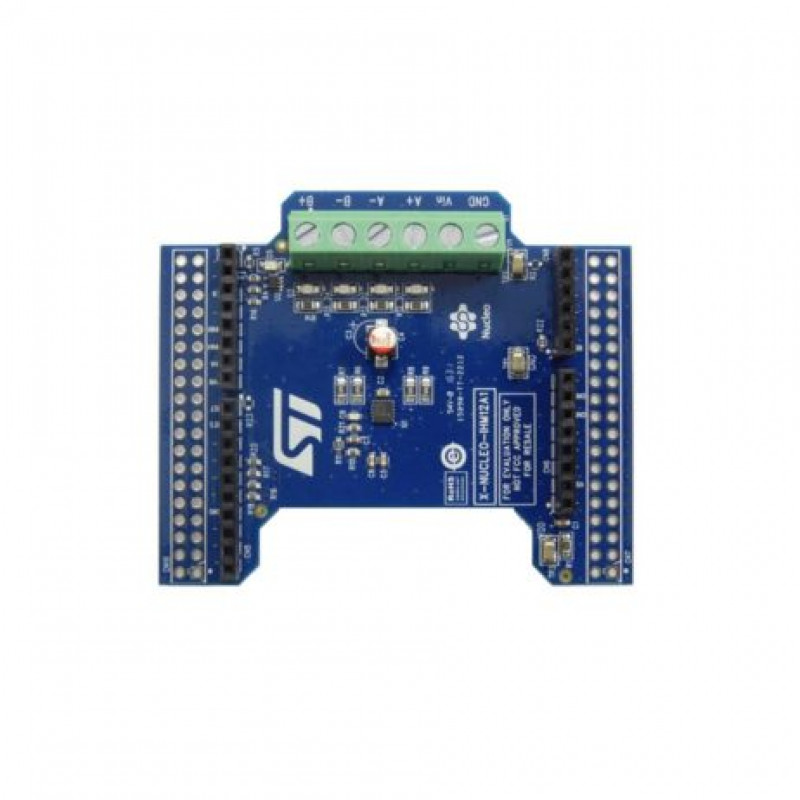

The X-NUCLEO-IHM12A1 is a low voltage dual brush DC motor driver expansion board based on STSPIN240 for STM32 nucleo. It provides an affordable and easy-to-use solution for the implementation of portable motor-driving applications such as thermal printers, robotics and toys.
Features:
- Low voltage range from 1.8V to 10V
- Current up to 1.3Arms
- Current control with adjustable off-time
- Full protection overcurrent and short-circuit protection
- Low RDS (ON) power stage (HS + LS = 0.4ohm typ)
Package Includes:
1 x STMICROELECTRONICS Expansion Board, STSPIN240 Dual Brush DC Motor Driver, For STM32 Nucleo
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Expansion Board, STSPIN240 Dual Brush DC Motor Driver, For STM32 Nucleo
- Product Code: EC-22019
- Availability: 1
-
Rs.950.00
- (Excluding 18% GST)
