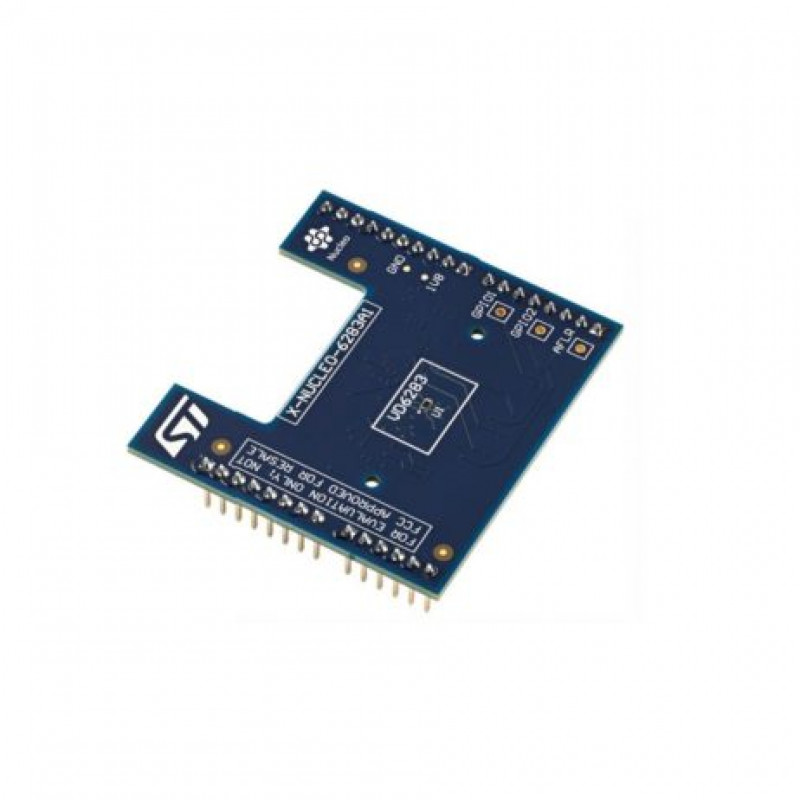

X-NUCLEO-6283A1 is an expansion board for the STM32 Nucleo development boards. It provides a complete evaluation kit allowing anyone to learn, evaluate and develop their applications using the VD6283, a colour sensor with advanced light flicker frequency extraction.The VD6283 (1.83 x 1.0 x 0.55 mm) is the smallest 6-channel, ambient light sensor. Light measurement is fast and accurate thanks to an individual ADC and readout circuitry for each colour channel (Red, Green, Blue, IR, Clear and Visible). The VD6283 uses hybrid colour filters with precise responses allowing accurate computation of the correlated colour temperature (CCT) and Lux information. The VD6283 can be used for display brightness management or scene light correction. Additionally, the VD6283 can extract light flickering frequencies from 100 Hz to 2 kHz, including LED square signals. The X-NUCLEO-6283A1 expansion board is compatible with the STM32 Nucleo-64 board family, and with the Arduino UNO R3 connector layout.

Features:

1. VD6283 6-channel ambient light sensor (ALS) with advanced light flicker extraction
2. Compatible with STM32 Nucleo board family
3. Equipped with Arduino UNO R3 connector
4. Full system software (SW) supplied, including code examples and graphical user interface

Package Includes:

1 x STMICROELECTRONICS Expansion Board, VD6283, STM32 Nucleo Boards
