The X-NUCLEO-IKS02A1 industrial motion MEMS sensor expansion board is compatiblewith the Arduino UNO R3 connector layout. It embeds the ISM330DHCX 3-axis accelerometer and 3-axis gyroscope, the IIS2MDC 3-axis magnetometer, the IIS2DLPC 3-axis accelerometer, the IMP34DT05
digital microphone. The X-NUCLEO-IKS02A1 interfaces with the STM32 microcontroller via the IC pin, with the possibility of changing the default IC port
Note: For more technical details go through Datasheet in the attachment section
Specifications and Features:
- ISM330DHCX MEMS 3D accelerometer (2/4/8/16 g) plus 3D gyroscope (125/250/500/1000/2000 dps)
- IIS2MDC MEMS 3D magnetometer (50 gauss)
- IIS2DLPC MEMS 3D accelerometer low power (2/4/8/16 g)
- IMP34DT05 MEMS digital omnidirectional microphone (-26 dBFS, 3 dB sensitivity)
- DIL 24-pin socket available for additional MEMS adapters and other sensors
- Free comprehensive development firmware library and samples for all sensors compatible with STM32Cube firmware
- Available IC sensor hub features on ISM330DHCX
- Compatible with STM32 Nucleo boards
- Equipped with Arduino UNO R3 connector
Package Includes:
1 x STMICROELECTRONICS EXPANSION BOARD X-NUCLEO-IKS02A1 STM32 NUCLEO DEV BOARD
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

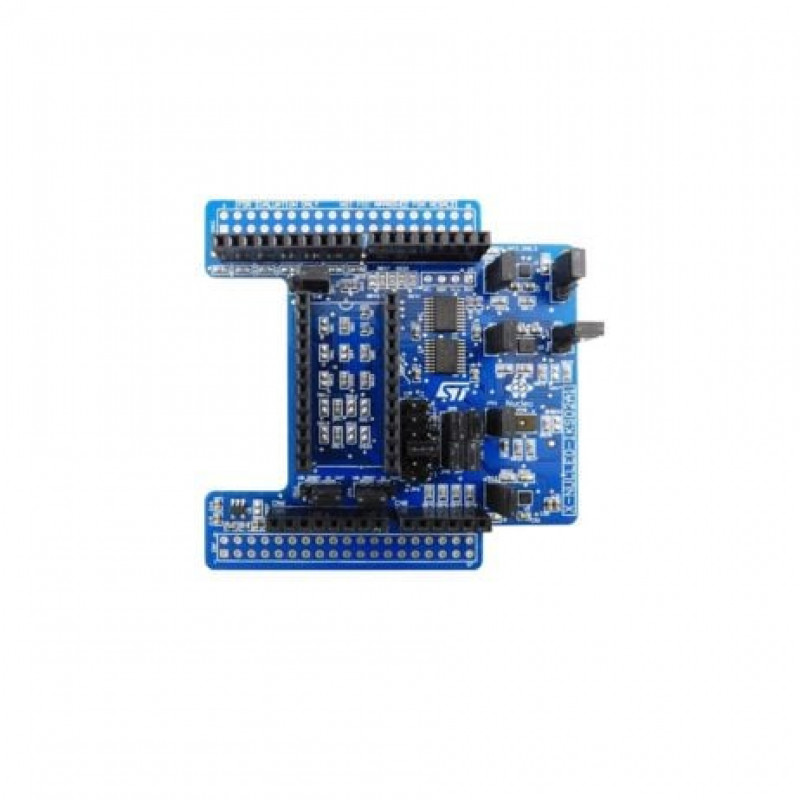

STMicroelectronics Expansion Board X-Nucleo-Iks02A1 Stm32 Nucleo Dev Board
- Product Code: EC-21985
- Availability: 2
-
Rs.2595.00
- (Excluding 18% GST)
