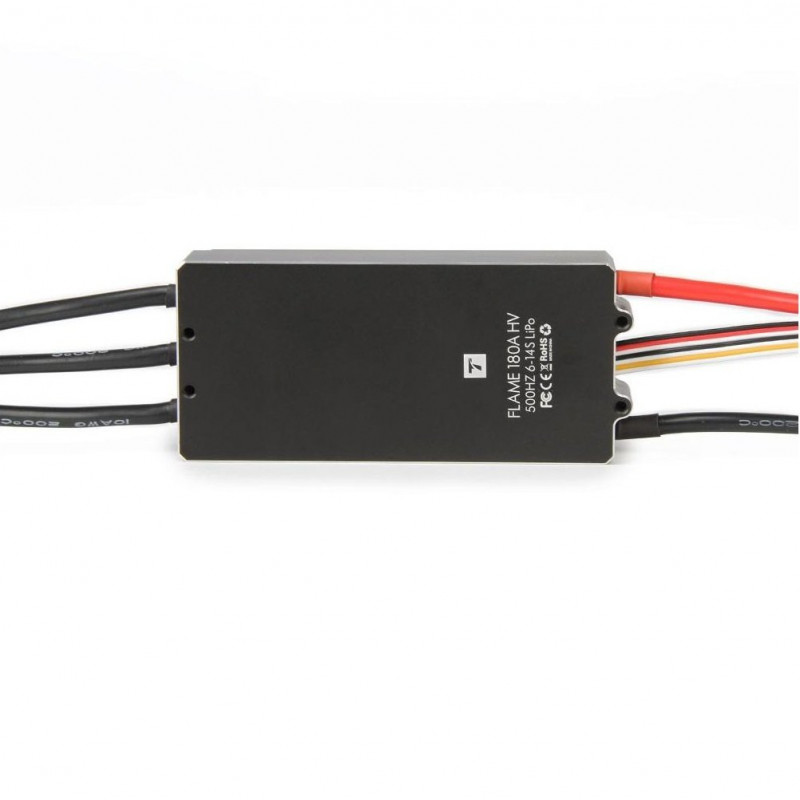

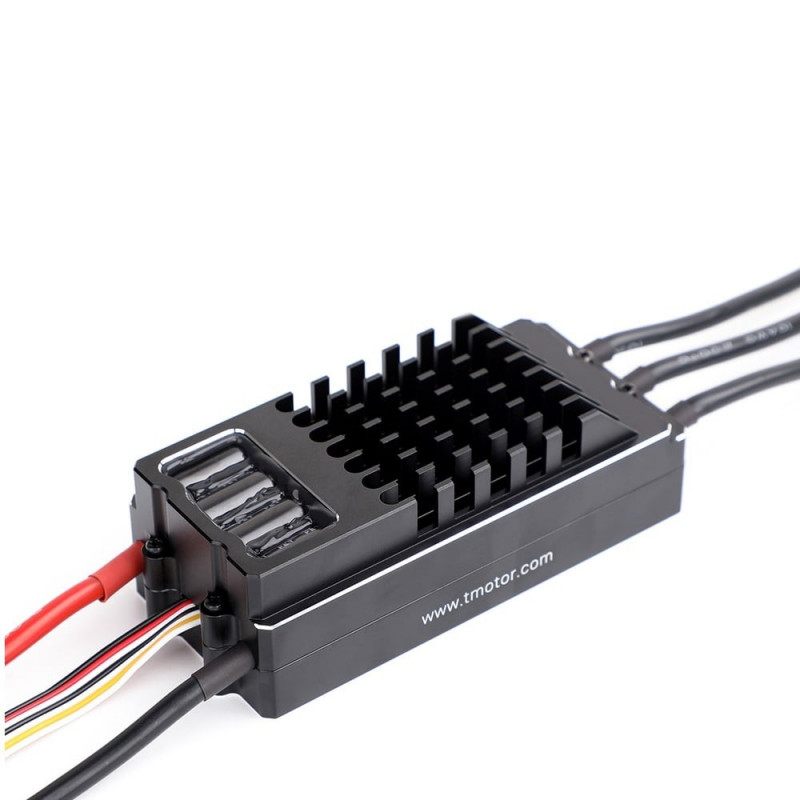

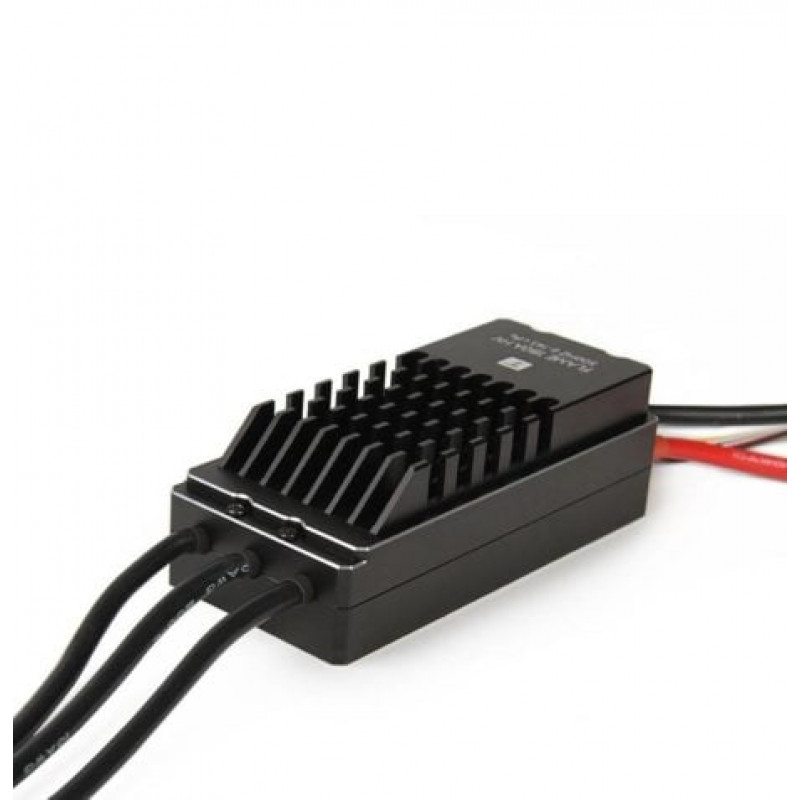

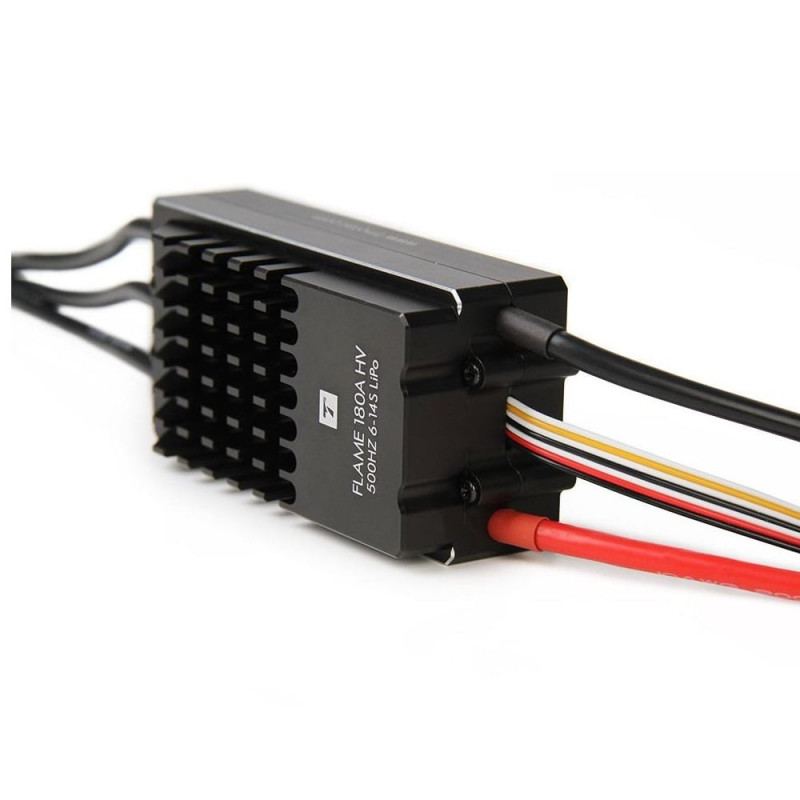

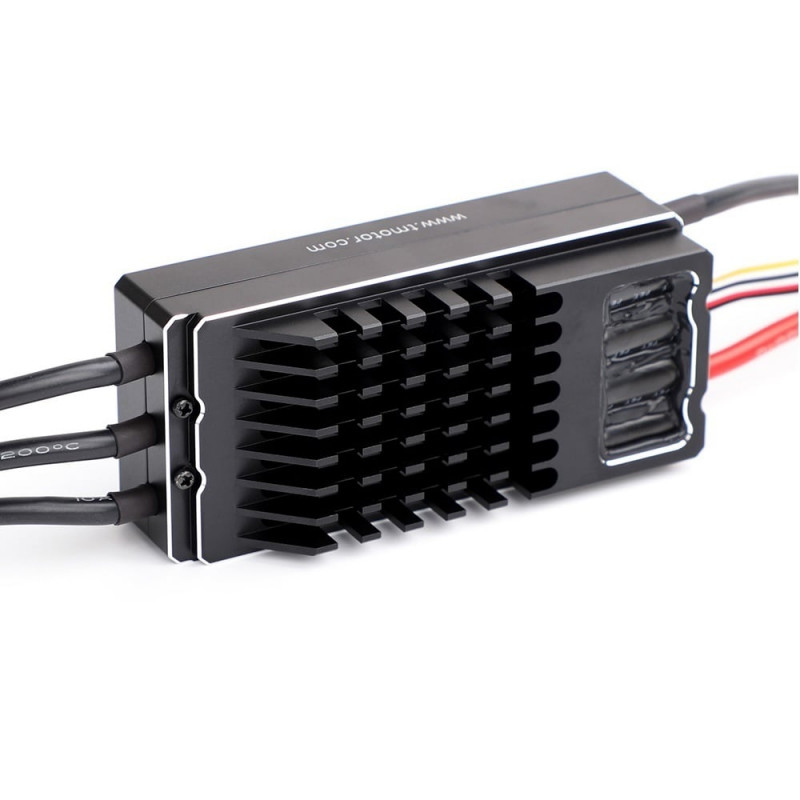

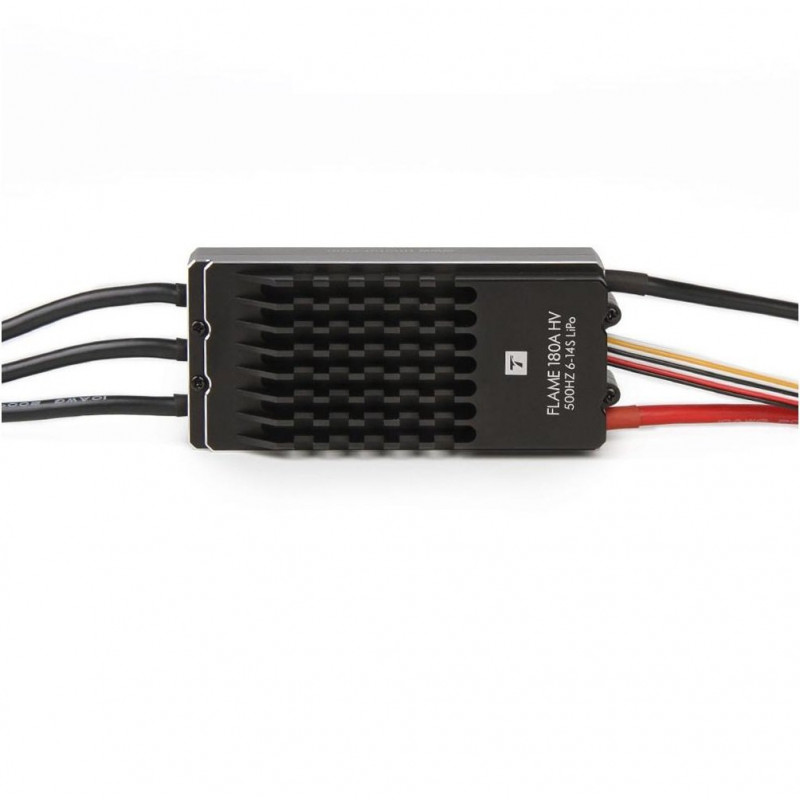

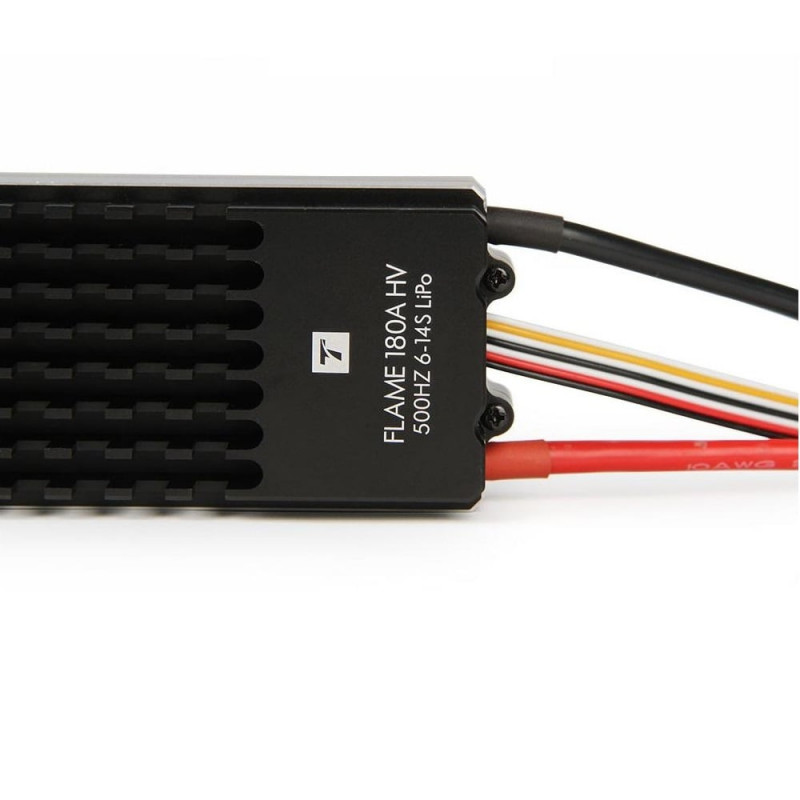

This T-motor 180A 12S Flame Type ESC featured efficient and reasonable dissipation, layered structure. Compatible with U12 Motors and specially designed for multi-rotors. T Flame ESC can give a continuous current of 180A, and a peak current of up to 200A (10 sec).
Features:
- High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- The throttle range can be configured to be compatible with all transmitters currently available on market.
- Smooth, linear, quick, and precise throttle response.
- CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
- Separate voltage regulator IC for the microprocessor to get a better anti-jamming capability.
- Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
- USB supported. The firmware of the ESC can be updated by the USB adapter.
- Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.
Specifications:
- Continuous Current (A): 180
- Peak Current (10s): 200
- BEC: N0
- LIPO: 6-12s
- Programmable: No

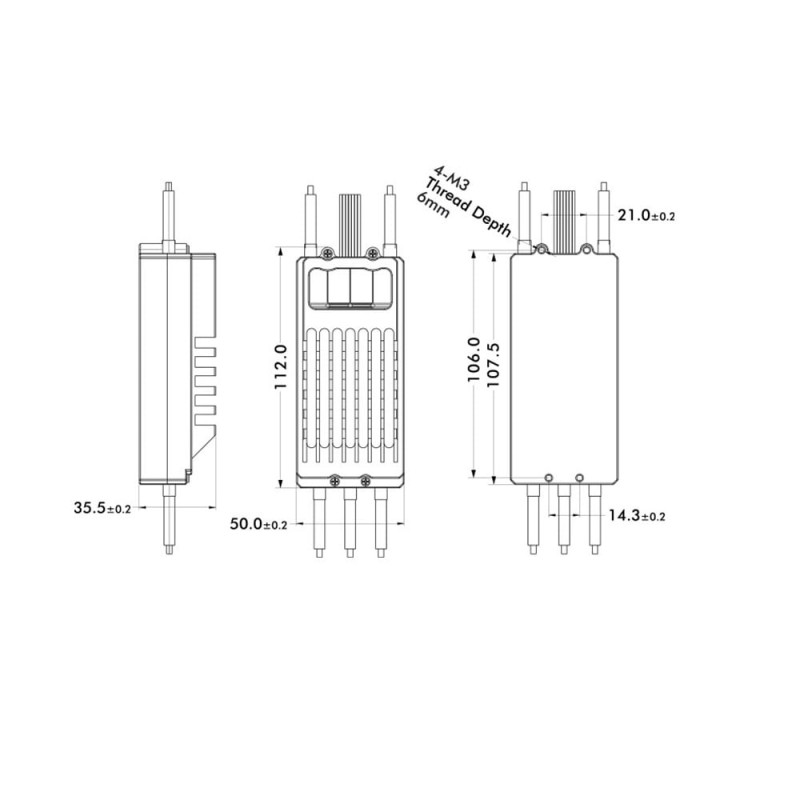

- Dimension: 112 x 51 x 36 mm
- Weight: 280 g
Package Includes:
1 x T motor Flame 180A 12S
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
T Motor Flame 180A 12S V2.0 Esc
- Product Code: EC-22357
- Availability: 2
-
Rs.15065.00
- (Excluding 18% GST)
