BLDC motor works on the principle similar to that of a conventional DC motor, i.e., the Lorentz force law which states that whenever a current carrying conductor placed in a magnetic field it experiences a force. As a consequence of reaction force, the magnet will experience an equal and opposite force.
A brushless DC motor (also known as a BLDC motor or BL motor) isan electronically commuted DC motor which does not have brushes. The controller provides pulses of current to the motor windings which control the speed and torque of the synchronous motor
Features:
- Type: Multirotor, Drone
- Brand: T-Motor
- Max Continuous Power: 180S 310W
- Max Continuous Current: 180S 14A
- Power: Battery
- Internal Resistance: 205M
- Material: Other
- Motor Weight: (Incl. Cable) 103G
- Cells: (Lipo) 3-6s
- Color: Black
- Shaft Diameter: 4mm
- Stator Diameter: 35mm
Package Includes:
1 x T Motor MN3508 KV380 Brushless Motor for Drone
Attachments :
Download
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 6174.94 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

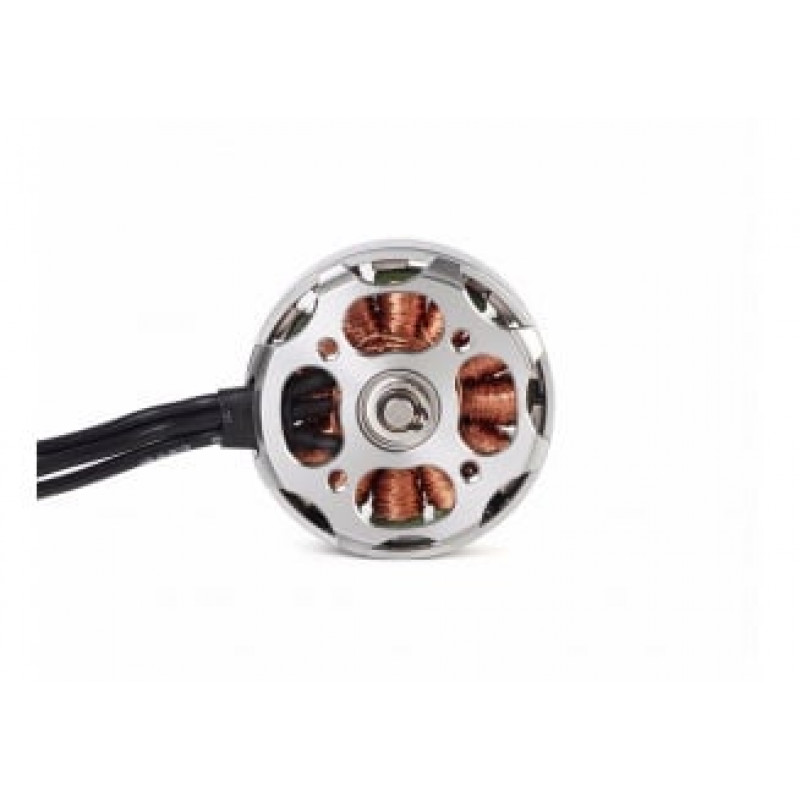

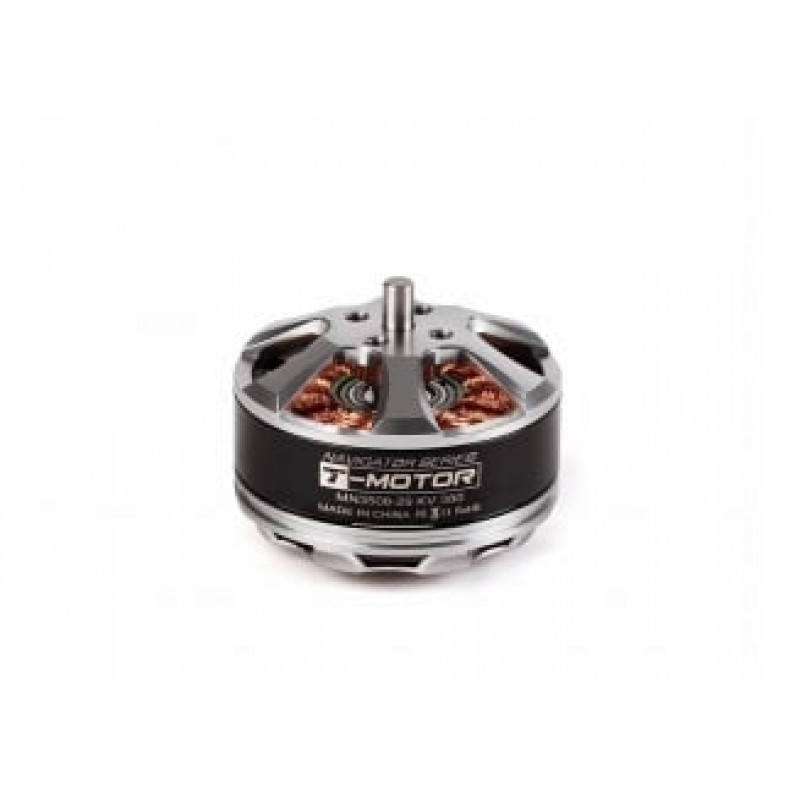

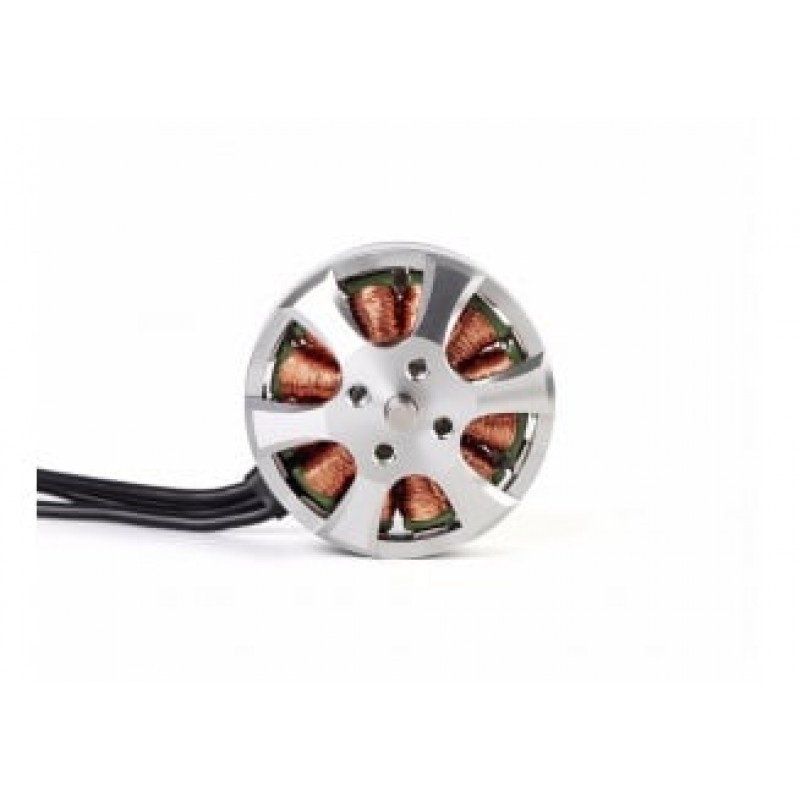

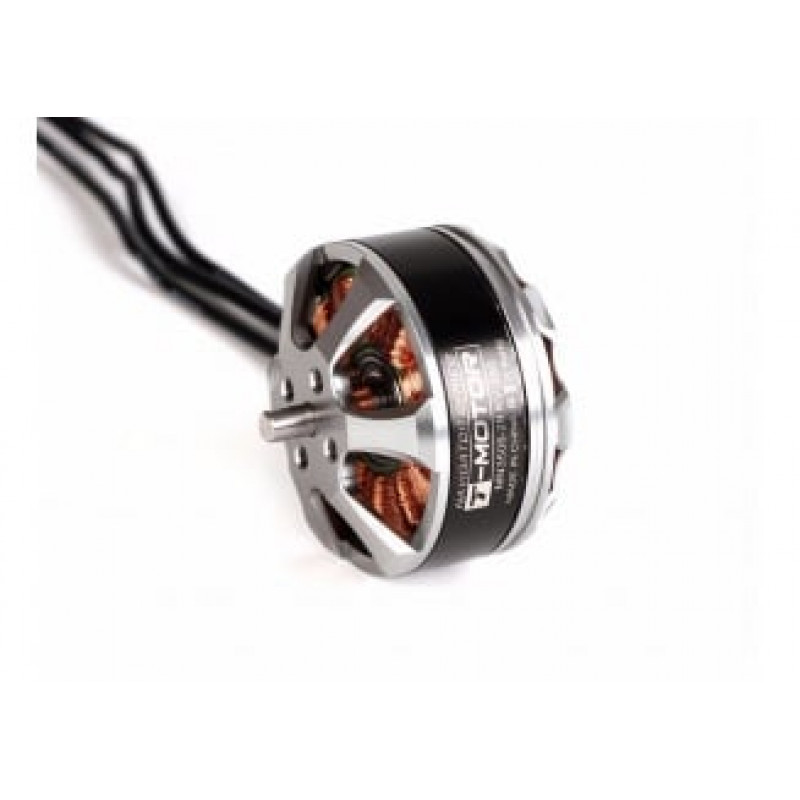

T Motor MN3508 KV380 Brushless Motor for Drone
- Product Code: EC-24282
- Availability: 5
-
Rs.5357.00
- (Excluding 18% GST)
