The FCS-03 is a Flow Switch Sensor that offers design engineers reed switch reliability (file E125629). The design allows for sensing in line flow of liquid or air. 3/8-inch BSP male threaded fittings.
Suitable for hot and cold potable water. Axis mounting. White PPS housing. Ruthenium contact.UL94-HB Flammability rating -30 to 100C Operating temperature
Features:
- Rugged high-grade Noryl
- Minimum pressure drop
- Operates from a small head of water
- Mount in any axis
- Suitable for water and air flow switching
Specifications:
- Mounting: Any Axis
- Housing Material: PPS
- Housing Colour: White
- Fitting: In Line
- Contact Form: A
- Contact Material: Ruthenium
- Maximum Switching Volts (VAC): 250
- Maximum Switching Volts (VDC): 200
- Maximum Switching Current (Amp): 1
- Maximum Power (Watt): 40
- Operate Flow Rate (L/min): 0.6 +/- 0.5
- Operate Temperature Range: -30C to +100C
Package Includes:
1 x TE CONNECTIVITY Flow Switch, FCS Series
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

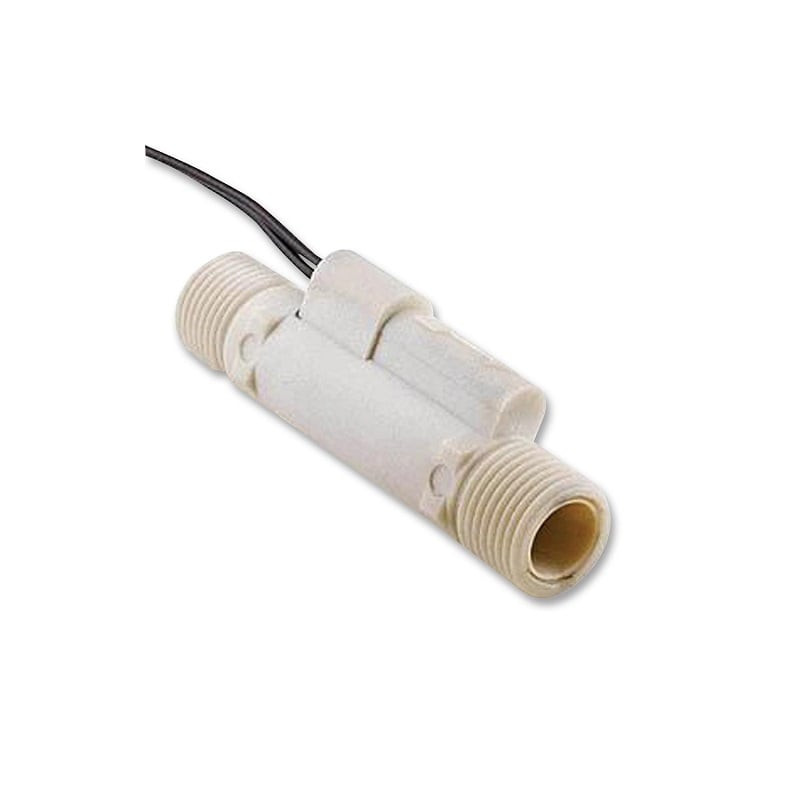

TE CONNECTIVITY Flow Switch, FCS Series, 0.1 l/min to 1.1 l/min, 9.525 mm Port Size, SPST-NO, 250 Vac, 1 A, PPS
- Product Code: EC-23629
- Availability: 2
-
Rs.2477.00
- (Excluding 18% GST)
