The FCS-01 is a Flow Switch Sensor that offers design engineers reed switch reliability (file E125629). The design allows for sensing in line flow of liquid or air. 3/8-inch BSP male threaded fittings. Suitable for hot and cold potable water. Black Noryl housing. Ruthenium contact.
Applications:
- Leak detection
- Flow sensing
- Mains water control
- Cooling systems
- Circulation pump protection
Features:
- UL94-HB Flammability rating
- Minimum pressure drop
- Operates from a small head of water
- Mount in any axis
- Suitable for water and air flow switching
- Food grade material
Specifications:
- Housing Material: Noryl
- Max Switching Voltage VDC: 200
- Max Switching Voltage VAC: 250
- Max Switching Current Amps: 1
- Max Switching Load Watt: 40
- Shuttle Material: Noryl
- Spring Material: Stainless Steel
- Contact Material: Ruthenium
- Operating Temperature: C -30 to 85
- Medium: Water
- Shock: 50g for 11ms Duration
- Vibration: 35g up to 500Hz
- Maximum Pressure: 10 Bar @ 20C
Package Includes:
1 x TE CONNECTIVITY Flow Switch, FCS-01
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

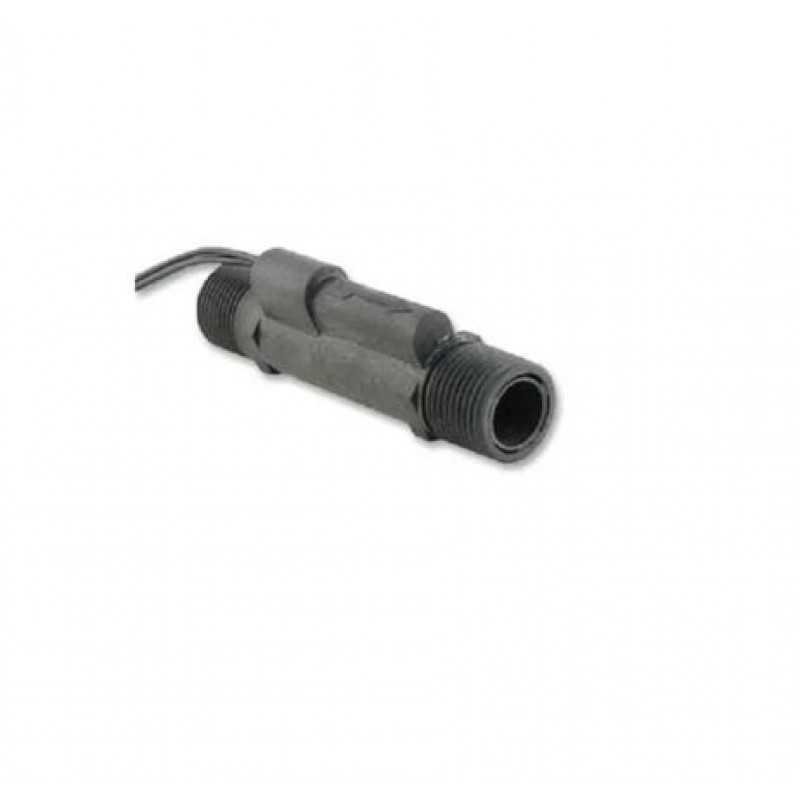

TE CONNECTIVITY Flow Switch, FCS Series, 0.6 l/min, 3/8 BSP Port Size, SPST-NO, 250 Vac, 1 A, Noryl
- Product Code: EC-23628
- Availability: 1
-
Rs.1495.00
- (Excluding 18% GST)
