Flow measurement is the quantification of bulk fluid movement. Flow can be measured in a variety of ways. The common types of flowmeters with industrial applications are l Obstruction type (differential pressure or variable area), Inferential (turbine type), Electromagnetic, Fluid dynamic (vortex shedding), Anemometer, Ultrasonic,Mass flowmeter
Flow measurement methods other than positive-displacement flowmeters rely on forces produced by the flowing stream as it overcomes a known constriction, to indirectly calculate flow. Flow may be measured by measuring the velocity of fluid over a known area. For very large flows, tracer methods may be used to deduce the flow rate from the change in concentration of a dye or radioisotope.
Features:
- Rugged high-grade Noryl
- Minimum pressure drop
- Operates from a small head of water
- Mount in any axis
- Suitable for water and air flow switching
Specifications:
- Max Switching Voltage VDC: 200
- Max Switching Voltage VAC: 250
- Max Switching Current Amps: 1
- Max Switching Load Watt: 40
- Housing Material: Brass
- Shuttle Material: Noryl
- Spring Material: Stainless Steel
- Contact Material: Ruthenium
- Operating Temperature: C -30 to 85
- Medium: Water
- Housing Colour: Black
- Vibration 35g up tp 500Hz
- Maximum Pressure: 10 Bar @ 20C
- Switch On Flow Rate L/min: 3.0
Package Includes:
1 x TE CONNECTIVITY Flow Switch FS-90/1
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

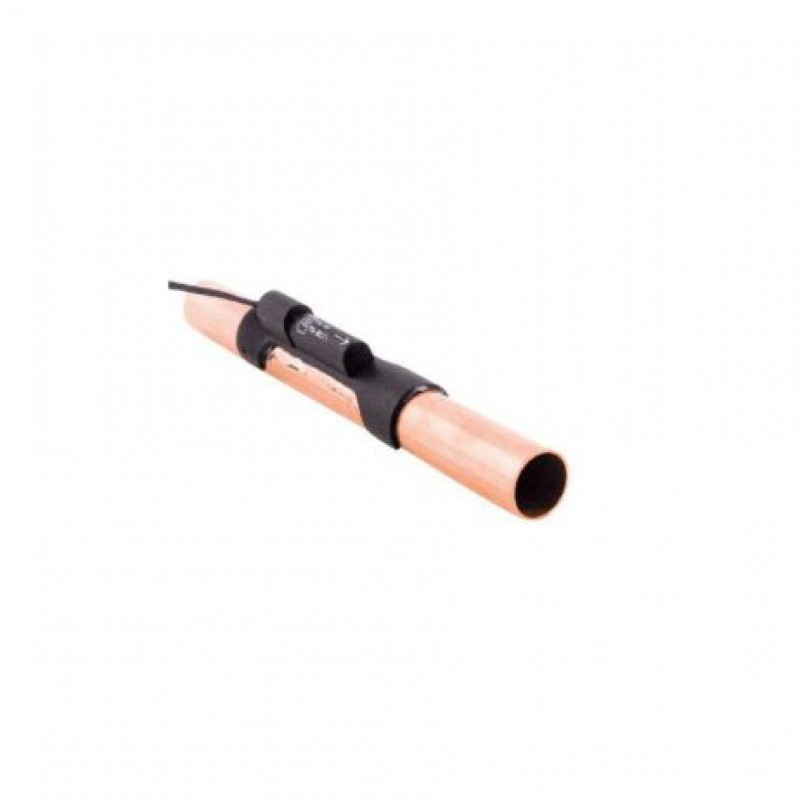

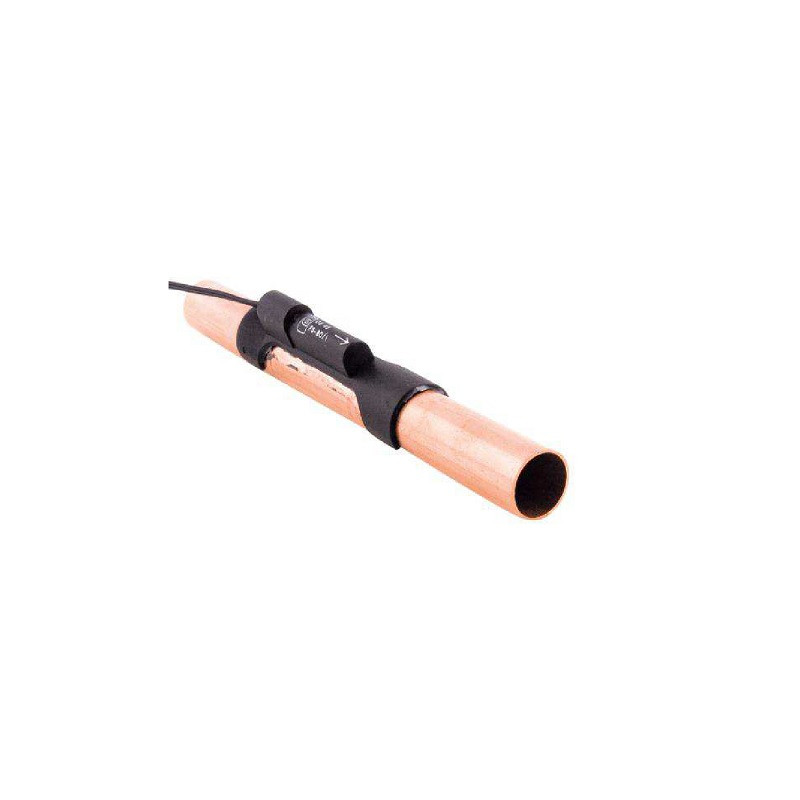

TE CONNECTIVITY Flow Switch, FS-90/1, 3 l/m, 15 mm Port Size, 10 bar, SPST-NO, 250 Vac, 1 A, Copper Pipe
- Product Code: EC-23625
- Availability: 1
-
Rs.3618.00
- (Excluding 18% GST)
