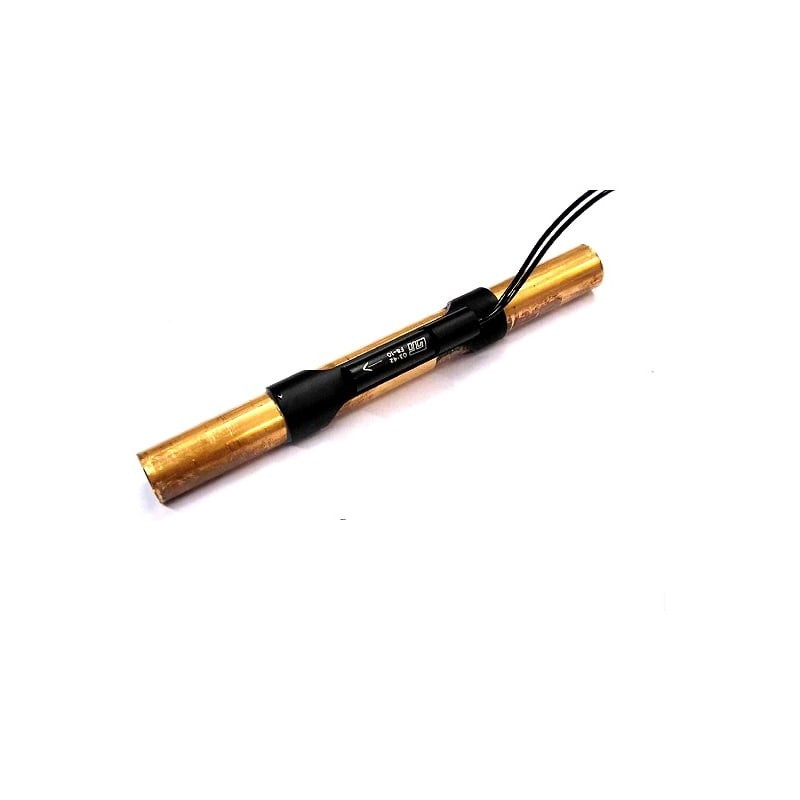

The FS-10 is a Vertical Flow Switch in a 15mm copper pipe. Operates from a small head of water. Suitable for water and air flow switching. Reed switch reliability. Ruthenium contact. UL94-HB Flammability rating, Easy installation,Reed switch reliability
Applications:
- Mains water control
- Power Shower
- Central Heating
- Systems
- Leak Detection
- Cooling systems
Features:
- 15mm copper pipe
- Minimal pressure drop
- Operates from a small head of water
- Vertical mount 15
- Suitable for water and air flow switching
Specifications:
- Maximum Switching Volts: 300 VDC
- Maximum Switching Current: 1.0A
- Maximum Watts: 15 Watts
- Mounting: Flow Switch Vertical
- Material: Copper
- Fitting Flow Switch 15mm pipe size
- Contact Form: Form A -SPST
- Contact Material: Ruthenium
- Cable Type: 2 x 16/0.2mm PVC insulated 1.0M long
- Cable Colour: Black/Black
- Operating Temperature Range: 85 C
- Medium/Liquid: Water
- Flow Rate: 0.5 litres/min
- Operating Pressure: 10BAR
- Mounting Shock: 50g for 11ms duration
- Mounting Vibration: 35g up to 500Hz
Package Includes:
1 x TE CONNECTIVITY Flow Switch, FS-10
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TE CONNECTIVITY Flow Switch, FS Series, 0 ml/min to 500 ml/min, 15 mm Port Size, 10 bar, SPST-NO, 300 Vac, 1 A
- Product Code: EC-23627
- Availability: 1
-
Rs.2622.00
- (Excluding 18% GST)
