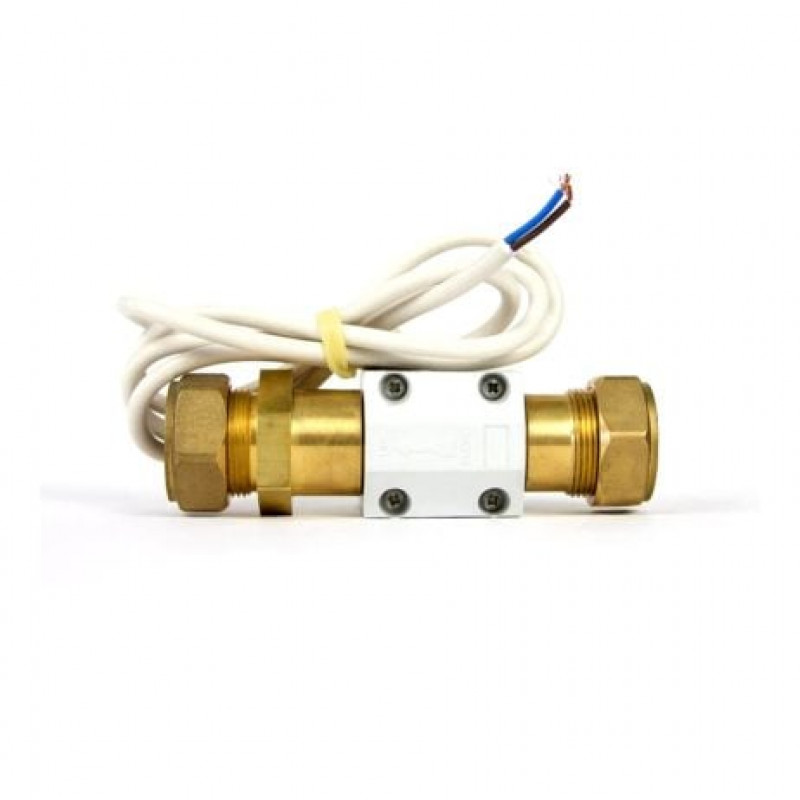

The FS-05 is a liquid flow sensor. This flow switch is available in 22mm compression fitting, rugged brass housing material with low volts, and ac control circuitry switching at less than 1 L/min. Typical applications include mains water control, power shower, central heating systems, circulation pump protection, and cooling systems.
Applications:
- Mains water control
- Power shower
- Central heating systems
- Circulation pump protection
- Cooling systems
Specifications and Features:
- Operating Voltage: 230V AC
- Operating Current: 3A
- Inlet/Outlet Diameter: 22 mm
- Metal part: Brass
- Plastic Part: Noryl
- Cable length: 1 meter
- Operates from a small head of water
- Vertical mounting
- Suitable for hot and cold potable water
- Reed Switch Reliability (UL File E153493)
- Meets UL 94-HB flammability rating
- Easy installation
- Operating temperature range from -30C to 100C
- Maximum pressure of 10bar at 20
- IP65 rated
Package Includes:
1 x 250 VAC 3A TE Connectivity Flow Switch, FS-05 22 mm Port Size 10 bar SPST-NO
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TE CONNECTIVITY Flow Switch, FS Series, 22 mm Port Size, 10 bar, SPST-NO, 250 Vac, 3 A
- Product Code: EC-23626
- Availability: 1
-
Rs.10453.00
- (Excluding 18% GST)
