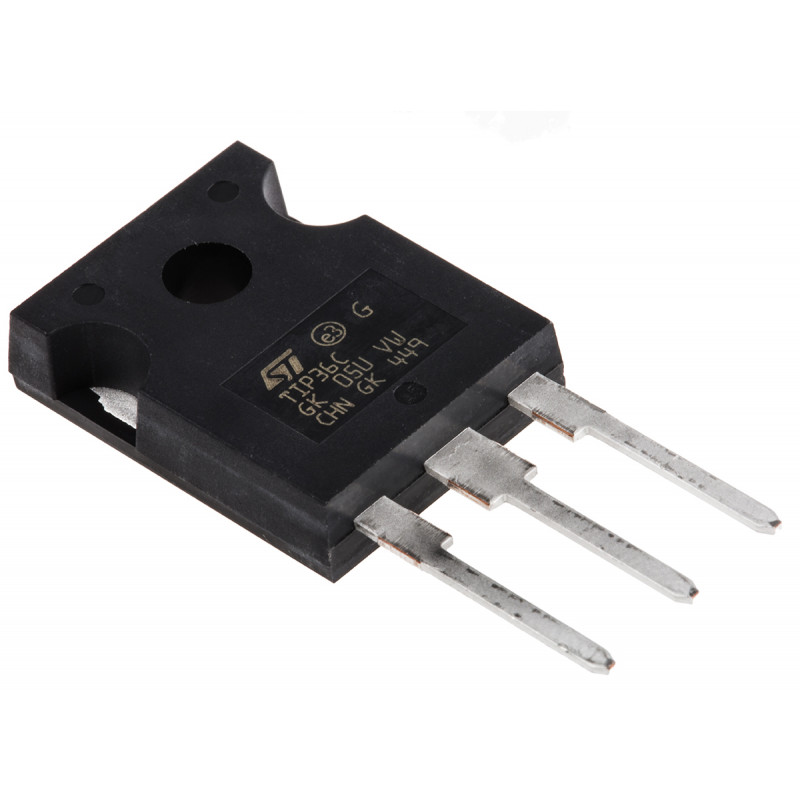

  • TIP36C PNP Power Amplifier Transistor 100V 25A TO-247 Package

TIP36C is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.


Features:-

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle


Detailed Specifications:-

Transistor Polarity PNP
Collector−Emitter Voltage (VCEO) 100V
Collector−Base Voltage (VCBO) 100V
Continuous Collector Current (Ic) 25A
Continuous Base Current (Ib) 5A
Emitter Base Voltage (VEBO) 5V
Power Dissipation (Pd) 125W
Operating Temperature Range -65 - 150°C
DC Current Gain (hFE) 10-50


Related Documents:-

 TIP36C Transistor Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 49.56 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

TIP36C PNP Power Amplifier Transistor 100V 25A TO-247 Package

  • Product Code: EC-2531
  • Availability: 962
  • Rs.42.00
  • (Excluding 18% GST)
